DRT - HIGH CLEARANCE REAR BUMPER - FOR 16-23 TACOMA
Estimated lead time of 5-7 weeks
Flat Rate Shipping $250 for lower 48 States
You must select the correct shipping option.
Residential freight cost is an additional $150 for lift gate fees.
If your address does not match your selected freight option you will be contacted via email.
Ships RAW
Powder coating available for local pickup only (+$500) - Santa Ana CA
Email sales@sibibuiltoffroad.com to add to your order.

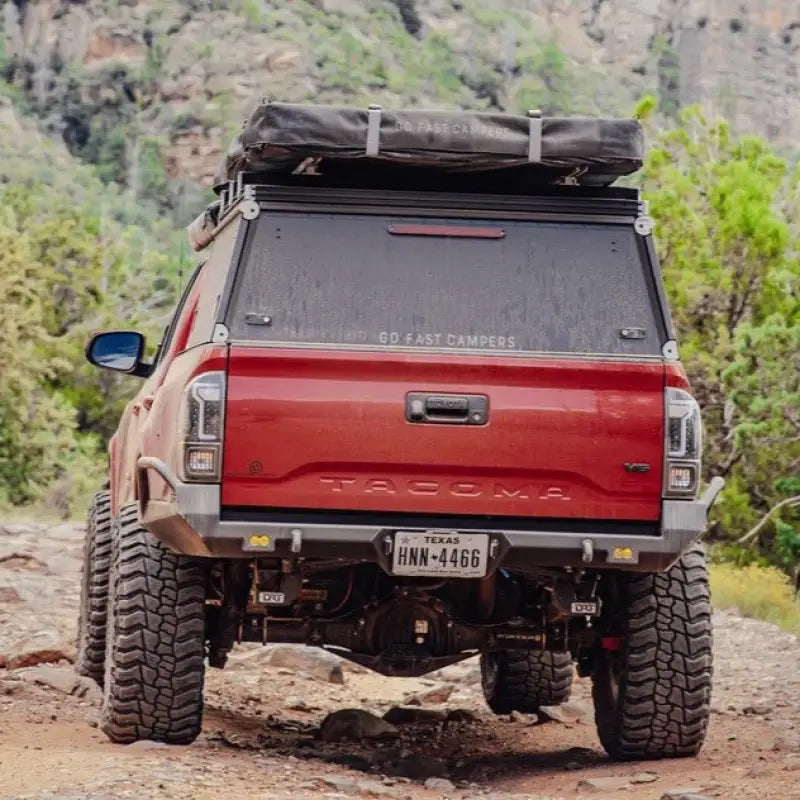

Introducing our 2016+ Tacoma high clearance rear bumper. During design we wanted to ensure that our bumper actually increased the departure angle as much as possible. The rear portion of our bumper offers more clearance than any bumper on the market with an overall height of about 4.5" and is tucked as close to the tail gate as possible while still allowing protection for the bed.

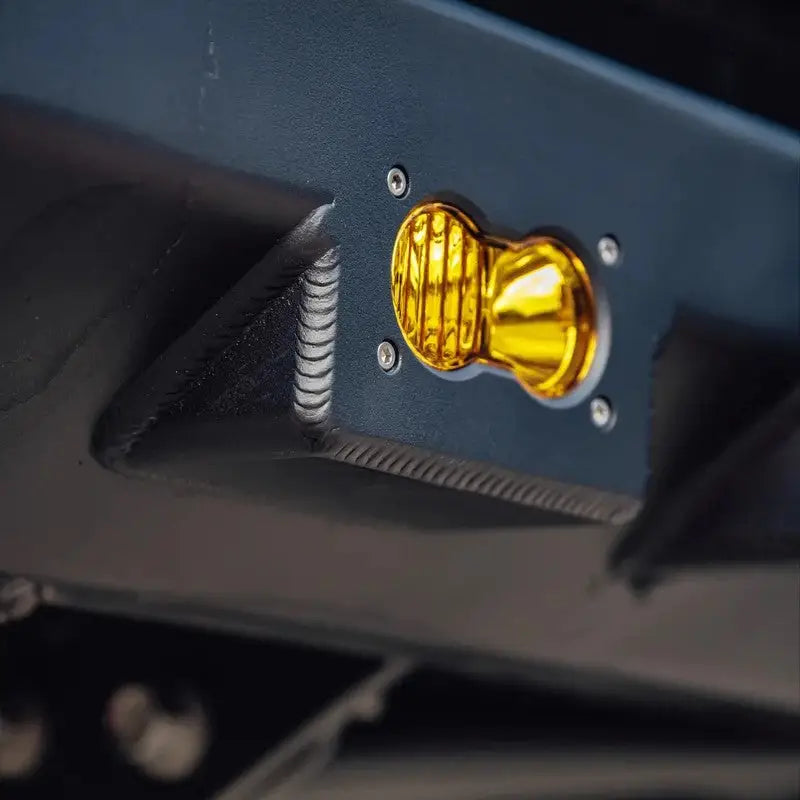

Two mounting locations for Baja designs S2 flush mounts are recessed into the face of the bumper to maintain a sleek yet aggressive and functional look with CNC machined bezels.

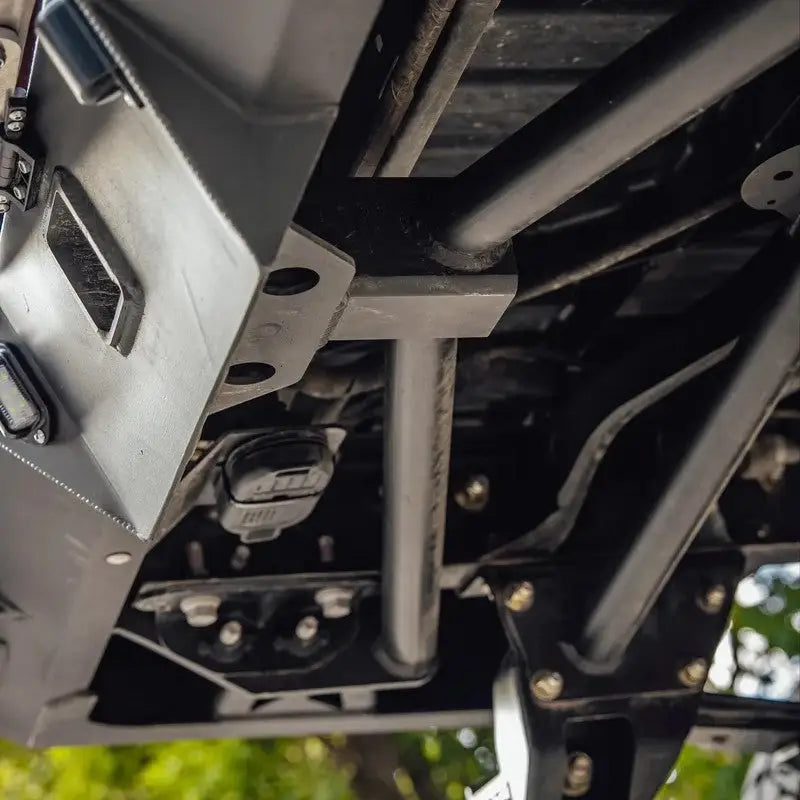

The bumper is primarily 3/16 USA made high strength steel with 3/8" thick frame mounts with recovery points integrated into the frame plates. This ties the D rings directly into the chassis providing a great recovery point. The D ring portion of the frame plates have 1/4" steel welded on both sides creating a 7/8" thick recovery point intended to be used with 3/4" shackles with a 7/8 pin.
The license area plate is gusseted to add rigidity for the laser cut hitch tube. The hitch tube is also supported by two 1.5" x .120 tubing that tie directly into the 3/8 frame plates. The hitch is not rated for towing. There are chain attachment points. Any towing is done at the discretion of the end user.
The trailer plug harness is relocated behind the bumper and out of harms way.

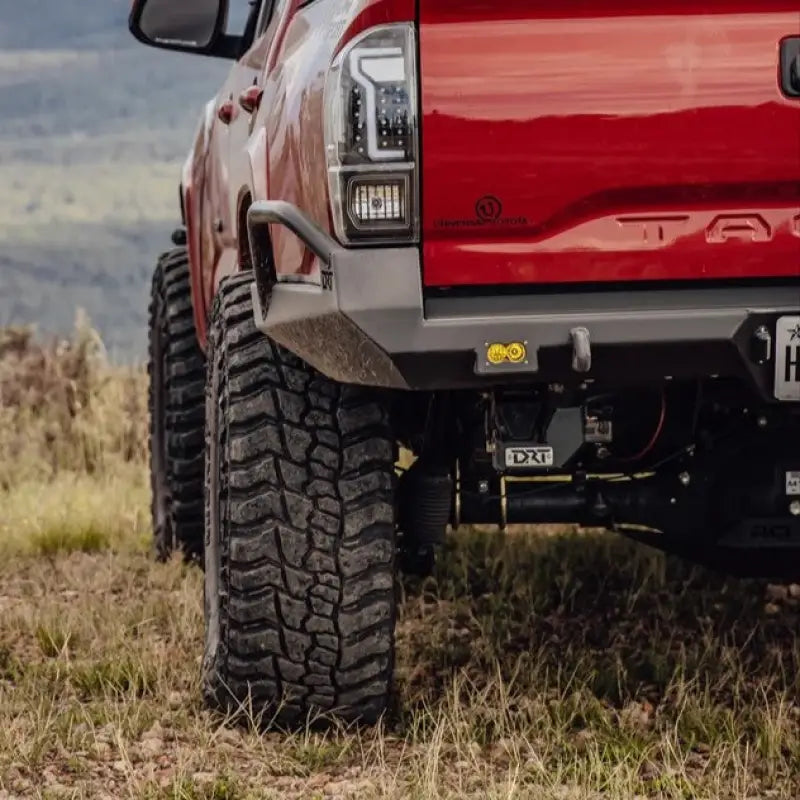

The high clearance sides are gusseted directly to the frame plate and have an additional 3/16 frame gusset that bolts directly to the frame to prevent damage/deflection on hard impacts.
A flip up license plate bracket is included. The hinge will hold itself in the open & closed position. License plate lights are also included.
Key points
Bumper does not support BSM systems. This can be turned off within the truck.
Back up sensors can be added at your discretion by drilling holes through the bumper.
Does not work with factory hitch or spare tire.
Factory license plate lights will not work but new led lights are provided. Minor wiring and splicing is required.
All necessary hardware for install is included.
Cutting the bed sides is required for install.
Weighs only 120lbs
Hitch receiver is 8 1/4" higher than factory.
6 1/2" ground clearance gained over stock.
"This is an aftermarket product"
