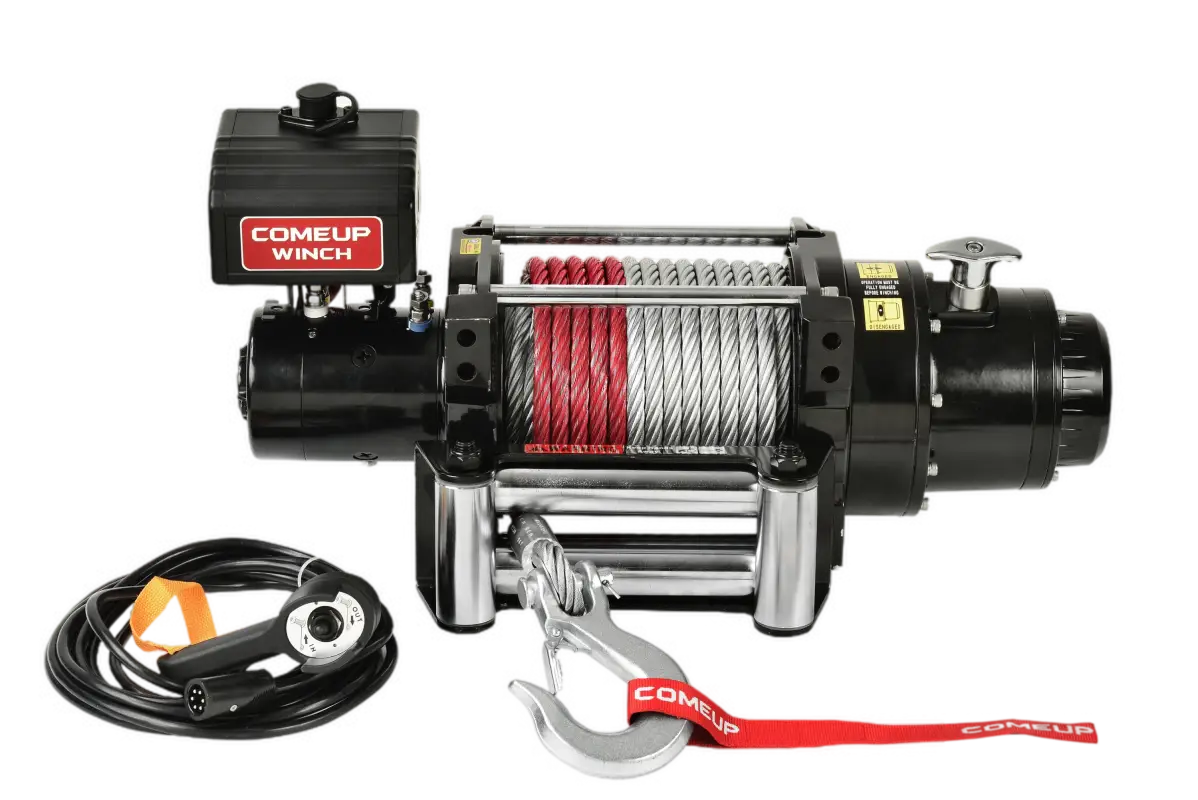

DV-18 12V
Fast, powerful and high efficiency performance.
Heavy duty series wound motor delivers superior torque output and faster line speed.
Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion.
Tough Aluminum alloy housings.
Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.

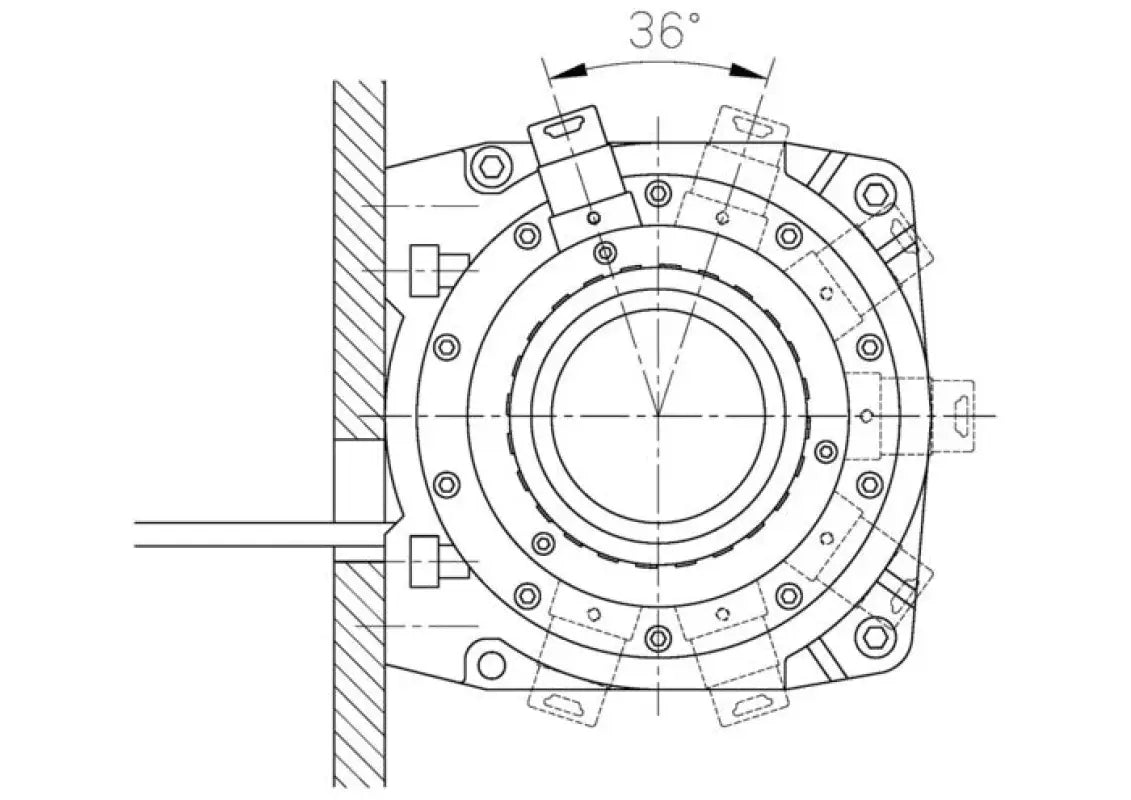

An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
Rated Line Pull 18,000 lbs (8,181 kg) single line
Motor 7.0 hp / 5,220 w 12V Series Wound
Gear Ratio 3-Stage Planetary 315:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum

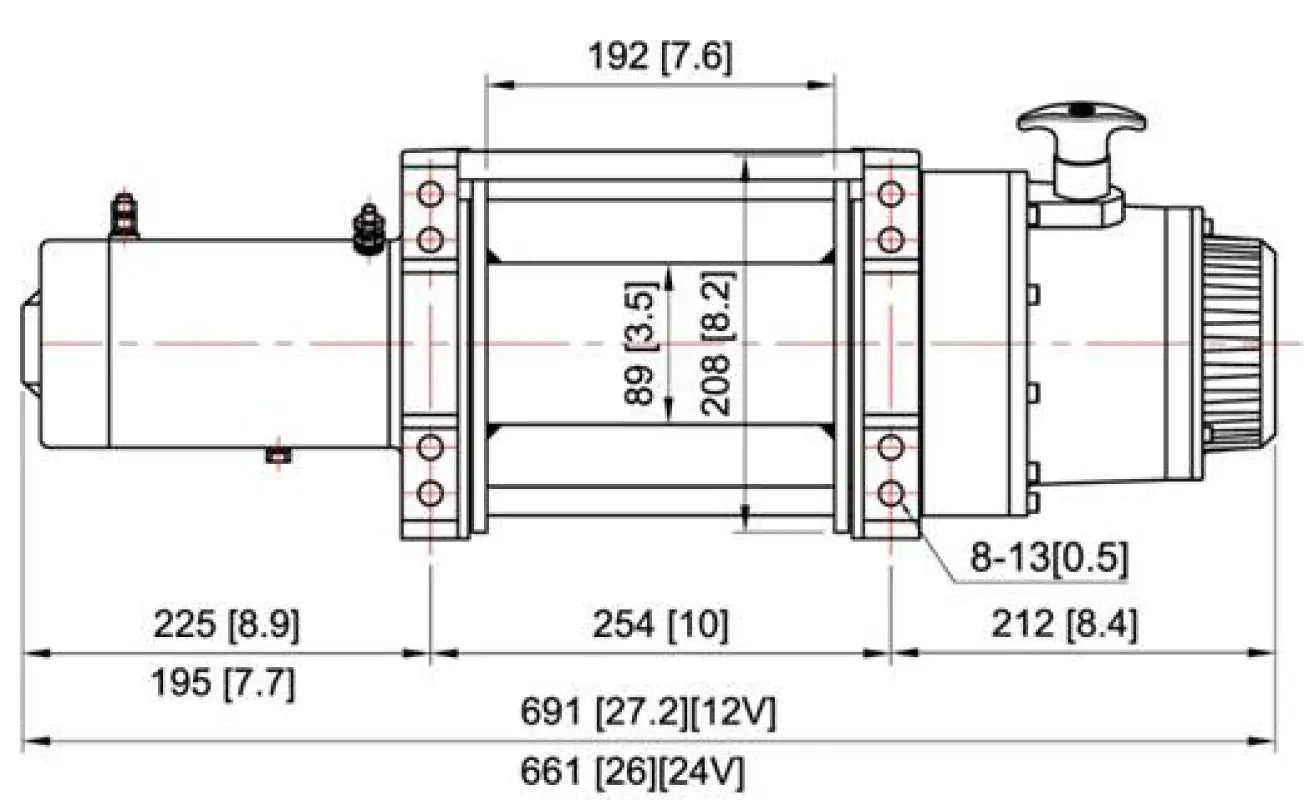

Drum Size 3.5" x 7.6" (89 x 192 mm)
Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type 6 x 29 - IWRC
Rope Size 1/2" x 82' (12.7 mm x 25 m)
Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
Winch Weight 130 lbs (59 kg)
Gross Weight 156.5 lbs (71 kg)
Box Dimensions 27.3" x 10.4" x 16.5" (695 x 265 x 420 mm)
