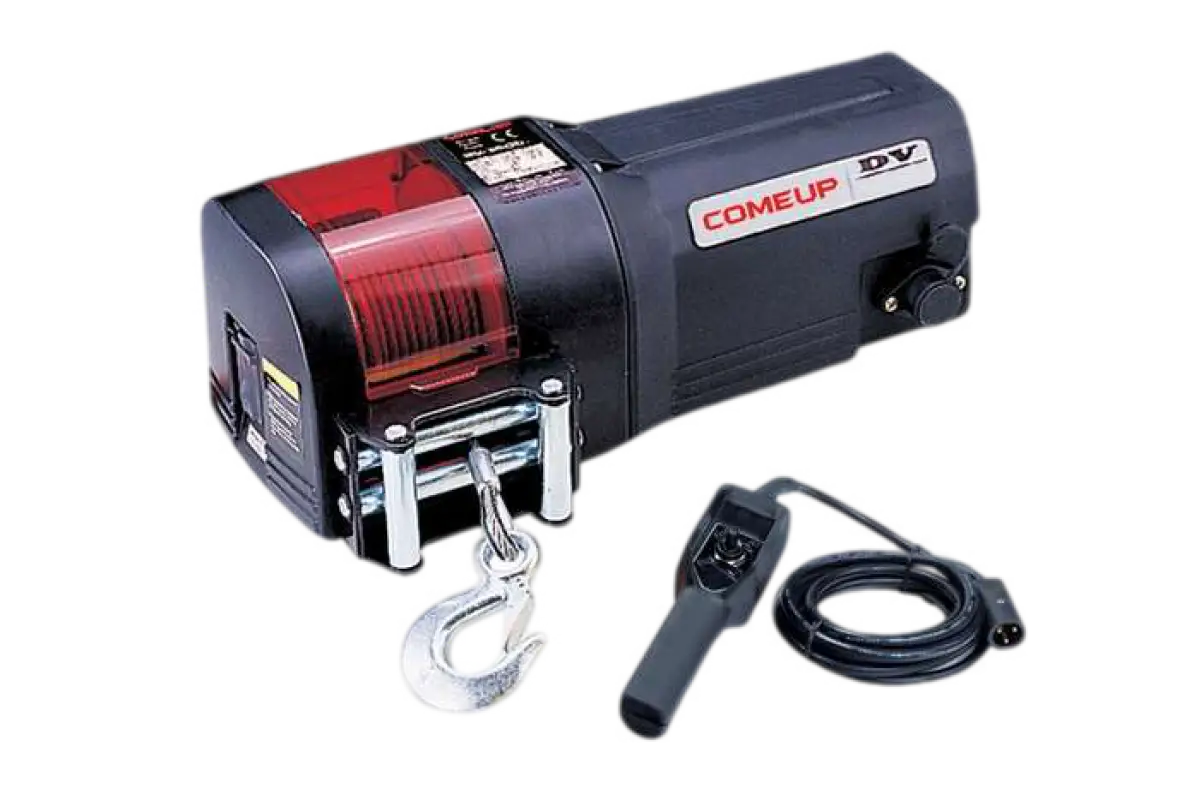

DV-4500si 12V, Synthetic Rope
4,500 lb (2,041 kg) line pull.
Power in and power out.
High torque permanent magnet motor delivers high line pull at lower amp and slip free dynamic brake.
3-stage planetary gearbox delivers the most reliable and durable winch performance under the most rugged conditions.
Sliding pin and ring gear clutch for rapid wire rope payout.
Automatic load-holding mechanical brake and motor dynamic brake ensure holding the load without slippage.
Standard Compliance: CE Machinery Directive 2006/42/EC CE Electromagnetic Compatibility Directive 2004/108/EC
Rated Line Pull 4,500 lbs (2,041 kg) single line
Motor 1,200 w / 1.6 hp 12V permanent magnet
Gear Ratio 3-Stage Planetary 170:1
Clutch (freespooling) Sliding ramping
Brake Automatic load-holding mechanical brake
Drum Size 2.1" x 3.3" (54 x 83 mm)

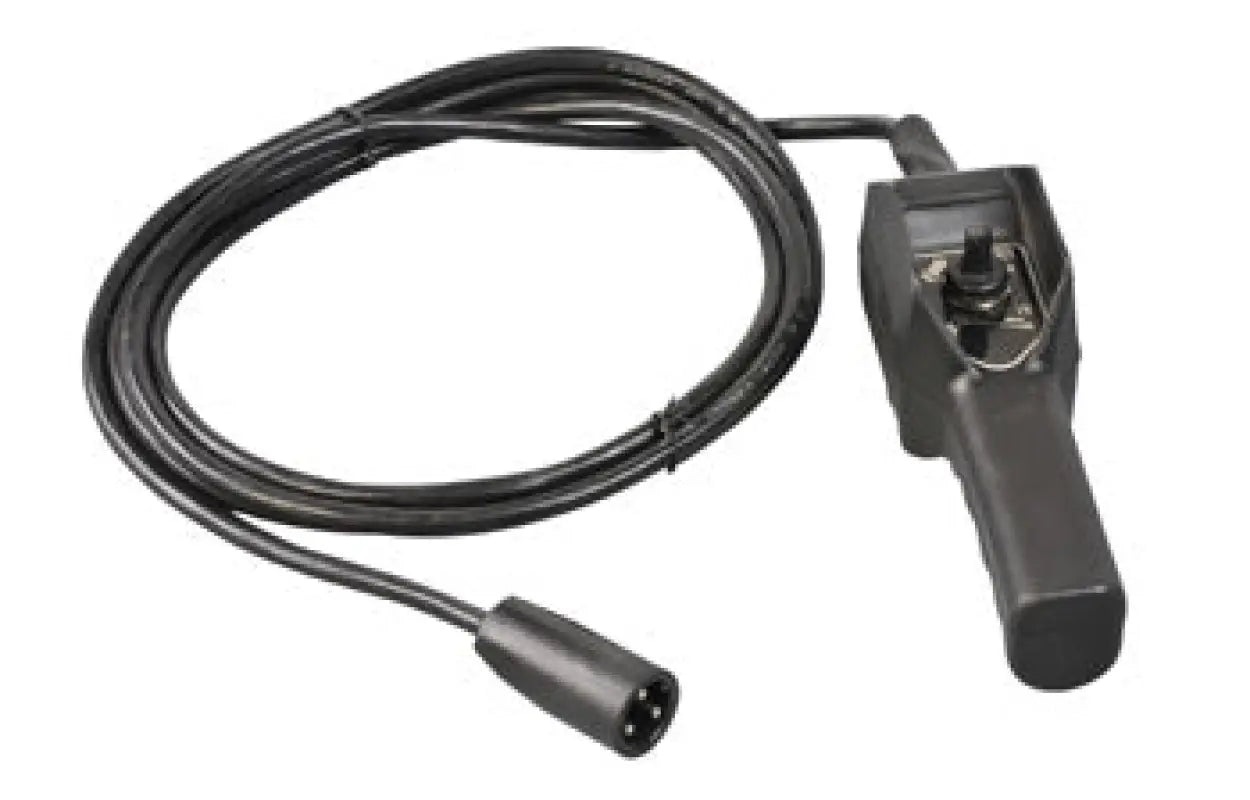

Control Handheld pendant switch remote control
Rope Type Synthetic Rope SK-75
Rope Size 1/4" x 50'

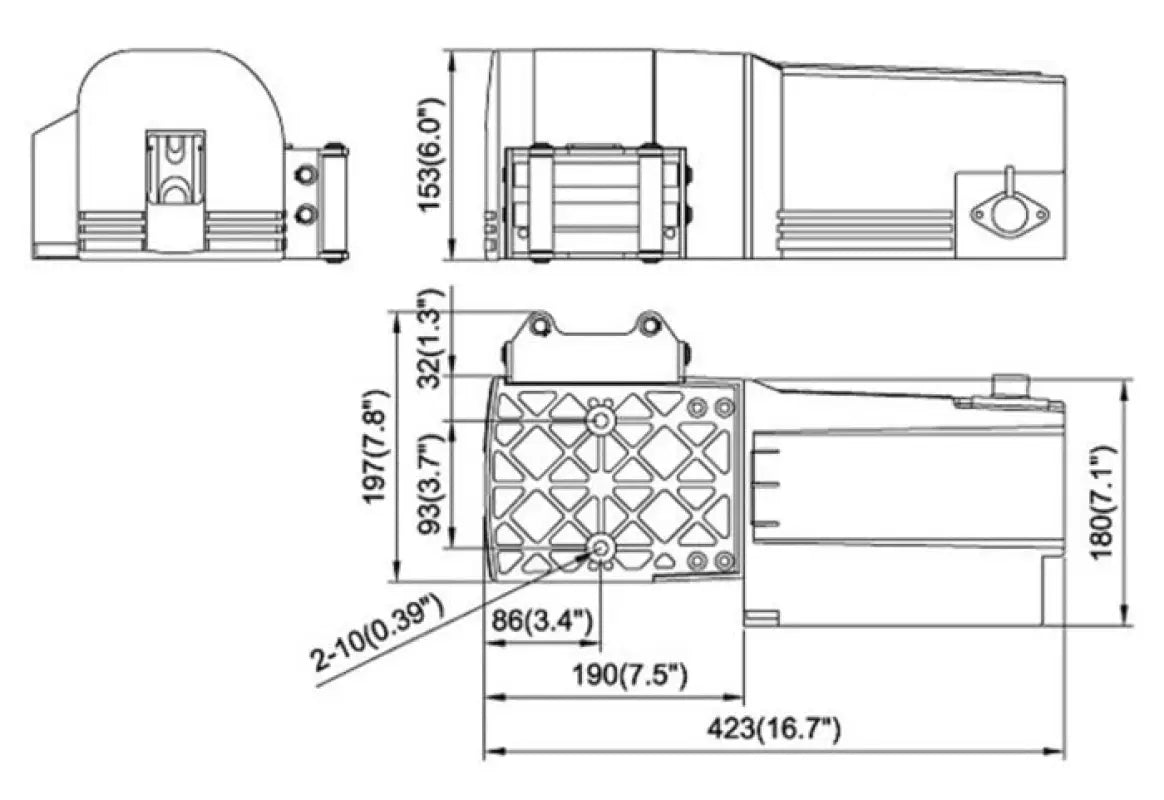

Mounting Bolt Pattern 3.4" x 3.7" (86 x 93 mm)
Winch Weight (including rope) 28 lbs (12.7 kg)
Gross Weight 36.8 lb (16.7 kg)
Box Dimensions 18.2" x 10.7" x 7.3" (462 x 271 x 185 mm)
