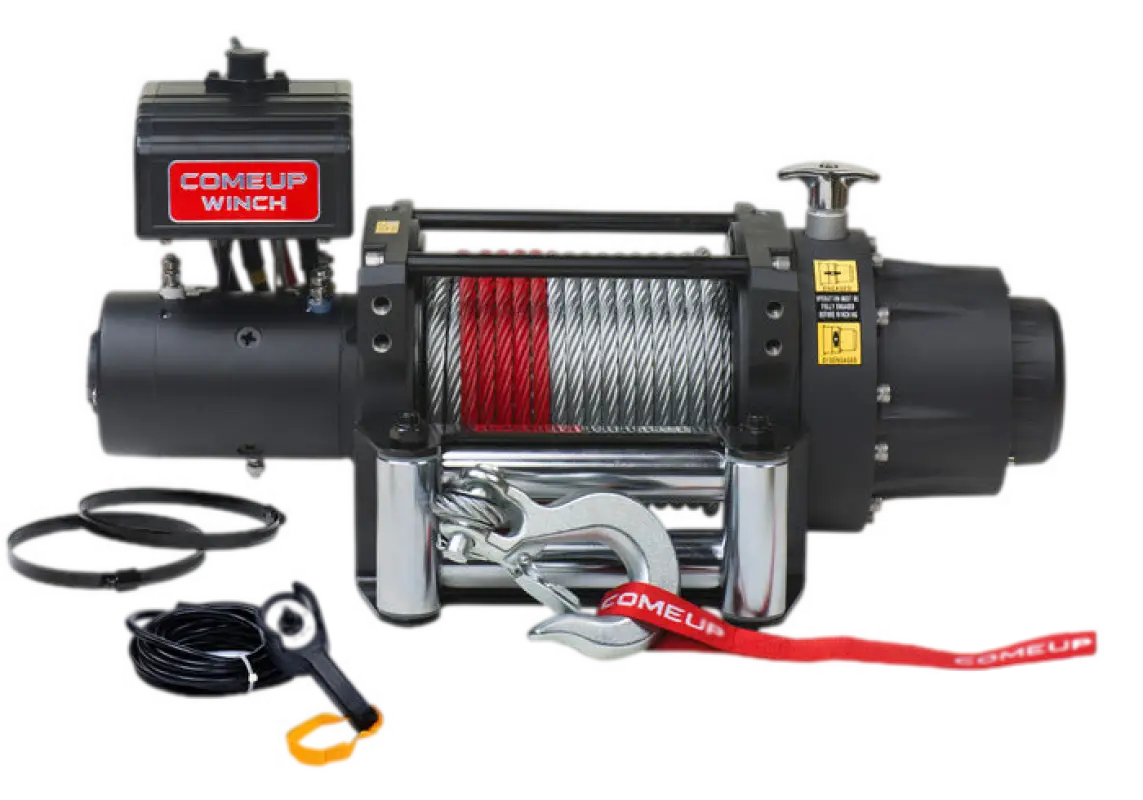

SEAL GEN2 16.5, 12V Winch
12V DC severe duty winch rated at 20,000 lbs.
Heavy duty series wound motor delivers superior torque output and faster line speed.
Motor equipped with a protective thermal sensor

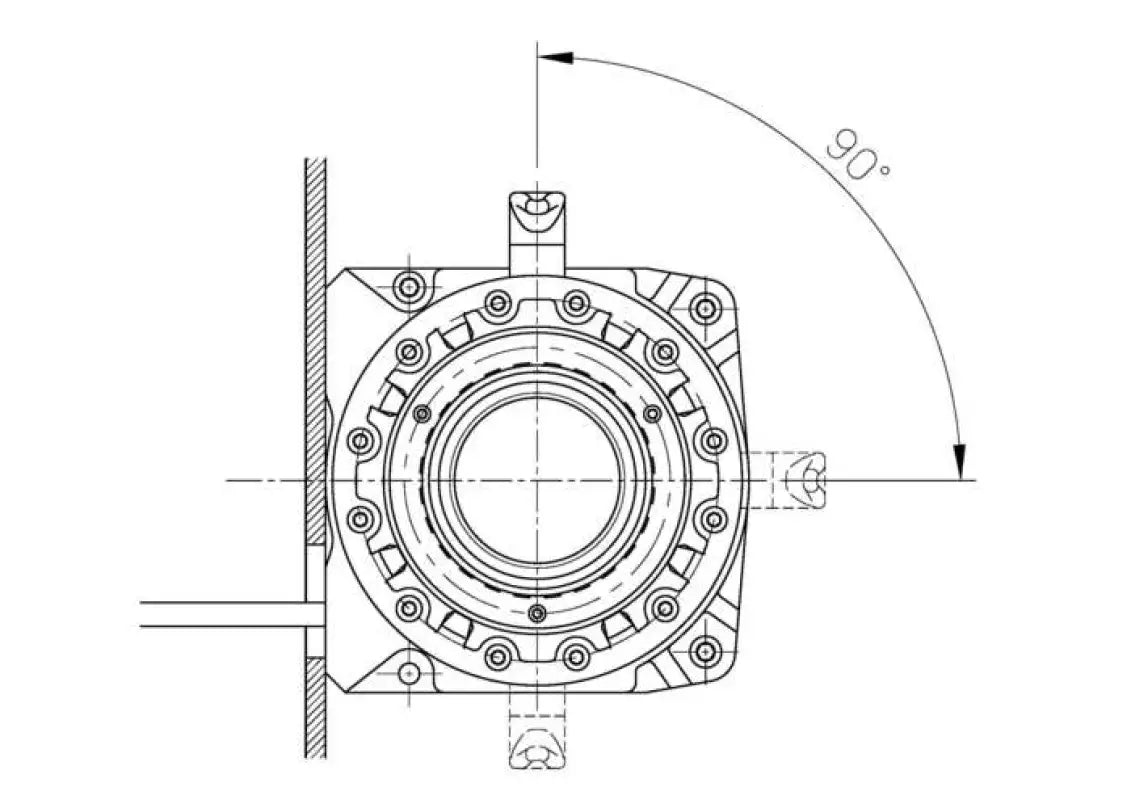

Clockable ergonomic clutch T-handle.
Hardened steel, 3-stage planetary gear set for durable and reliable operation.
Water-proof remote control with thermometric LED indicator w/5 m cord.
12 strand construction synthetic rope coated to improve abrasion resistance.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
Patented mechanical cone brake safely holds the full load
Meets international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2004/108/EC, and SAE J706 Surface Vehicle standard 2003-08 rev.
Specifications
Rated Line Pull 20,000 lb single line
Motor 5,220 w / 7.0 hp 12V series wound
Gear Ratio 3-stage planetary 343:1
Clutch (freespooling) Rotating ring gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum die cast housings with steel drum
Drum Size 3.5" x 8"L
Control Waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
Rope Type 6 x 29 - IWRC
Rope size 1/2" x 59’ (12.7 mm x 18 m )

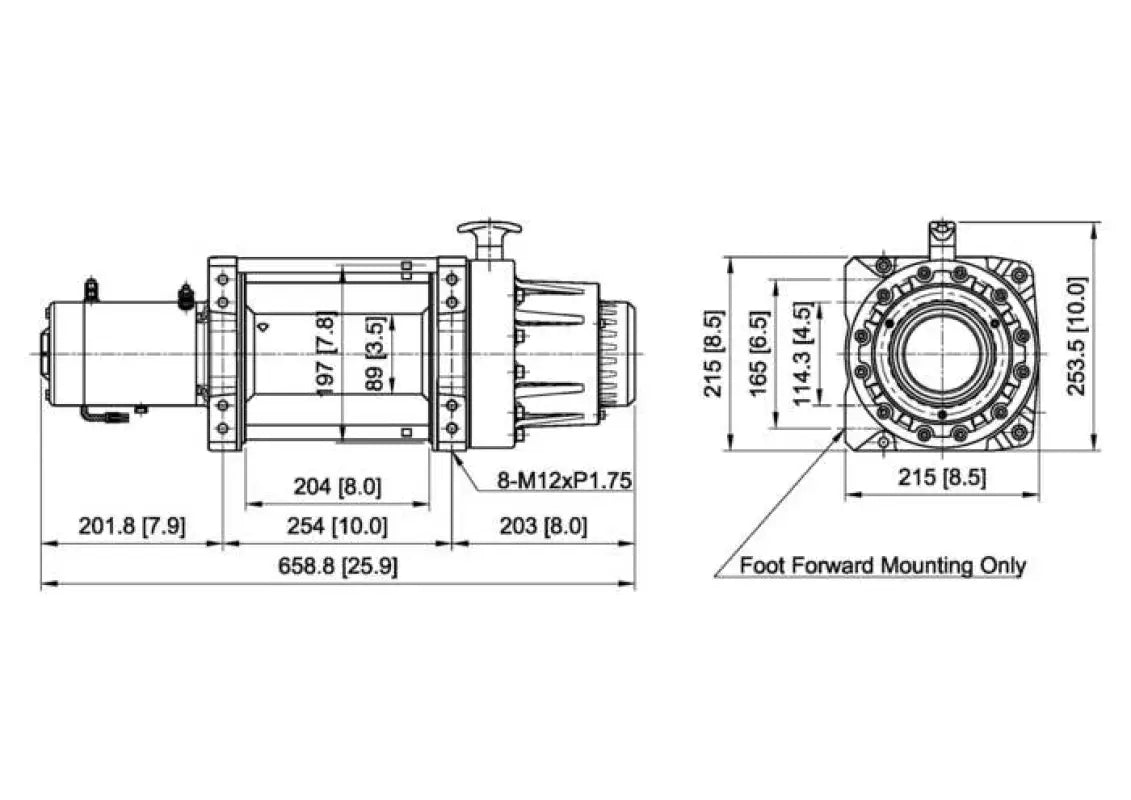

Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
Winch Weight 132 lb
Gross Weight 169.7 lb
Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
Box Dimensions 29.1" x 10.6" x 19.5"
