Overland Series Front Bumper - For Tacoma 2nd Gen / 05-15

(Lead-Time 14 Weeks)

The Overland Series Front Bumper For 2005-2015 Tacoma

• 100% bolt on design, no welding required. (some minor trimming required on 2012-2015 models)
• Bumper offers greatly improved tire clearance, better approach angle and makes it easier to fit larger tires.
• Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.
• 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
• Bull bar tubing is .120 wall 1 3/4″ diameter HREW tubing.
• Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit.(ComeUp, Smittybilt X20, Warn Zeon and VR series are all common winches that fit).
• We recommend using winches with synthetic rope and a hawse style fairlead for the best fitment and functionality. Some roller fairleads may be too large to fit the recessed fairlead mounting plate in the bumper.

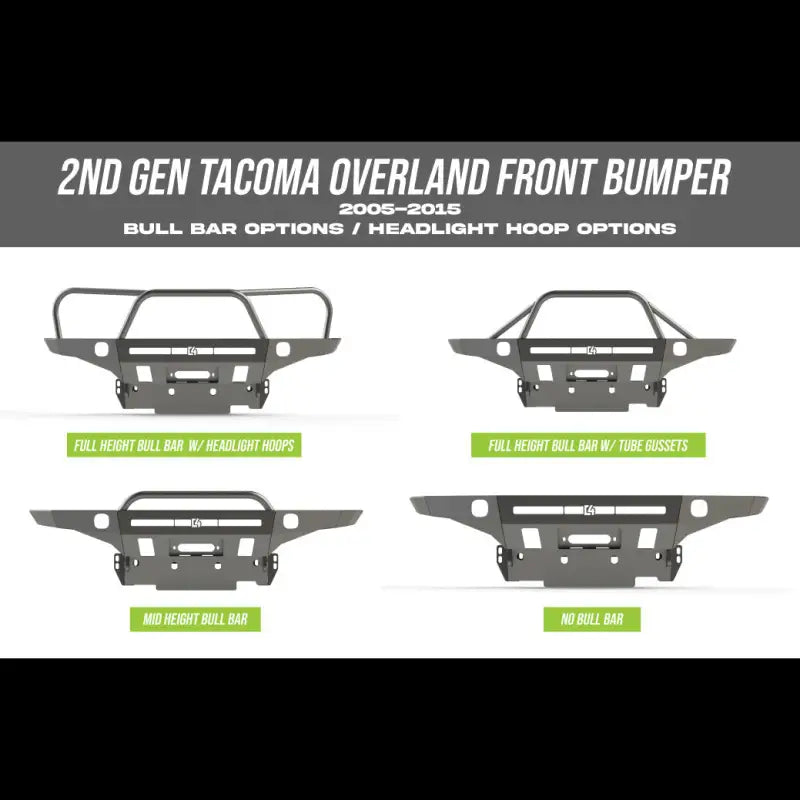

• 125lbs without bull bar, 130lbs with mid height bull bar, 140lbs with full height bull bar, 145lbs with full height bull bar and headlight hoops.
• Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series, will also fit.
• Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
• Additional Front Bumper Frame Support Brackets included with all 2nd gen Tacoma Hybrid front bumpers!($177.00 value).
• SHIPS BARE STEEL, powder coat finish not available. Product will need to be painted or powder coated to prevent rusting.
