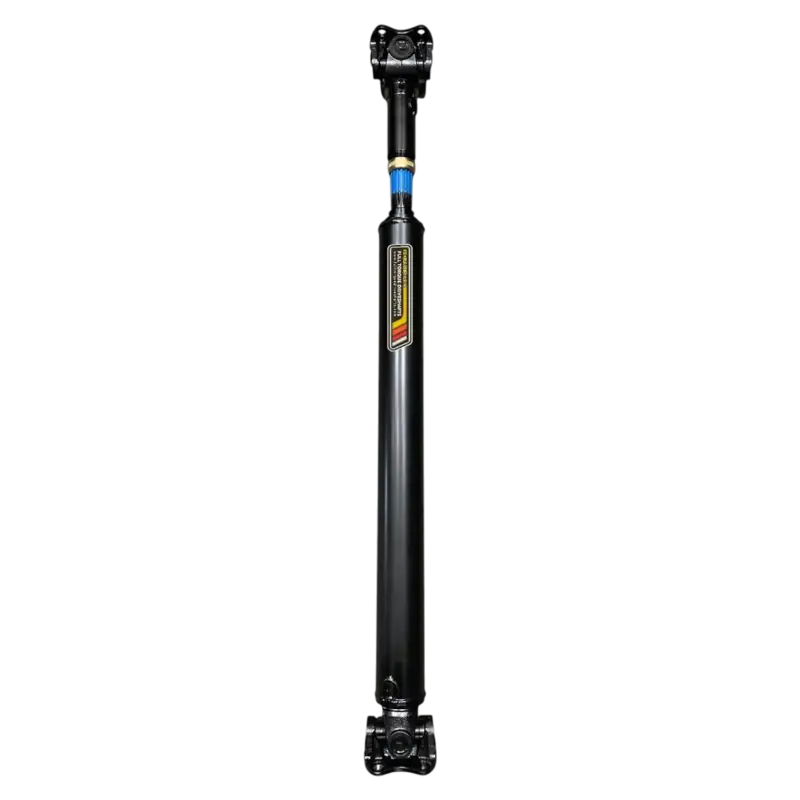

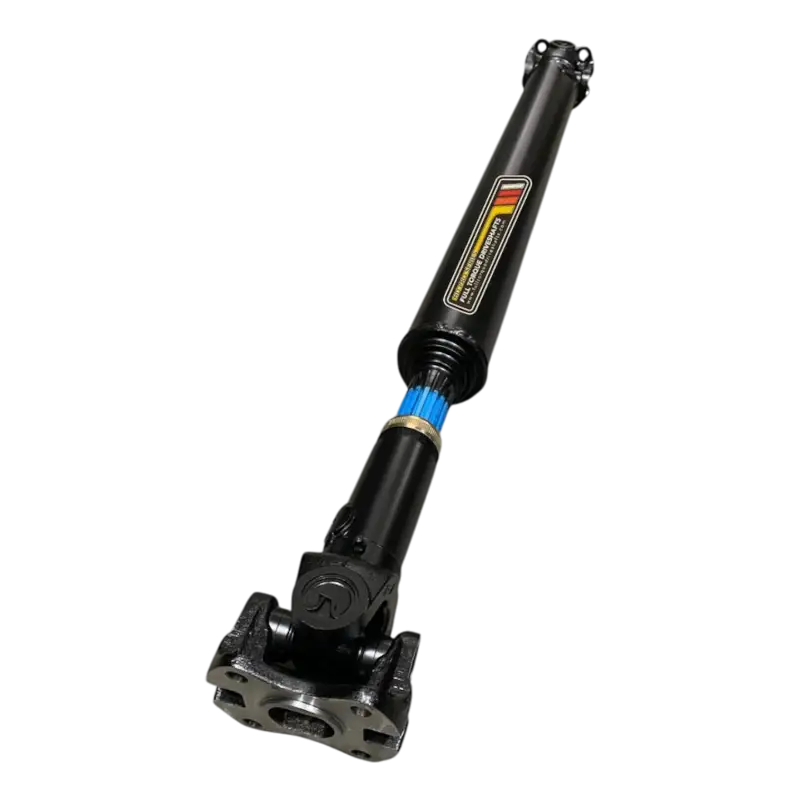

Rear Driveshaft: HD 1350 Series - For 03-09 4.7L GX470 4x4
1350 series heavy-duty upgraded driveshaft for 4.7L GX470 2003-2009
Custom Length Driveshafts
Email us your measurements with your order # (Sales@sibibuiltoffroad.com)

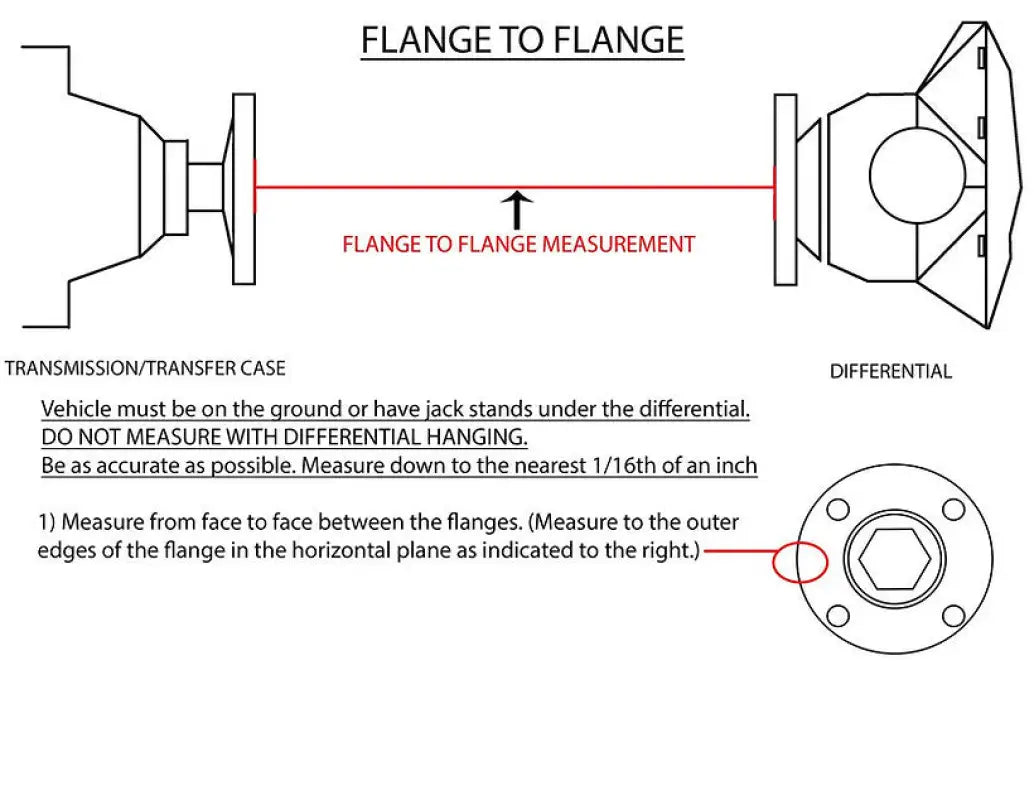

Measurement from Flange to Flange At Ride Height (Bump and Droop Optional too) Year, Trim Level, Lift Height and Brand
This driveshaft features our exclusive direct-fit forged flanges in 1350 series. These flanges are a direct-fit to the OEM transfercase and differential flanges: no swapping flanges, and no adapters required!
These shafts are built to handle the abuse of heavy offroading while still providing excellent on-road driving and longevity. This is the strongest Lexus GX470 driveshaft available. Our upgraded GX470 driveshaft features the following to make it the toughest out there:
- Forged 1350 series flanges
- Forged 1.5" full-spline (custom made to our specifications for a tight fit with our slip yoke)
- 3" x .083" DOM seamless tubing
- Forged 1350 series weld yoke
We have this shaft available for 0-2.5" lifts and built-to-order custom length. This driveshaft is meant to go with the factory transfercase and differential flanges on a 03-09 GX470. Our 0-2.5" lift driveshaft assumes you have stock or stock-length 4-link arms. If you are running long-arms or any other modified rear suspension we suggest measuring for your driveshaft.
New nuts for the transfercase studs and new bolts+lock washers+nuts for the pinion flange are available as an added hardware option.
"This is an aftermarket product"
