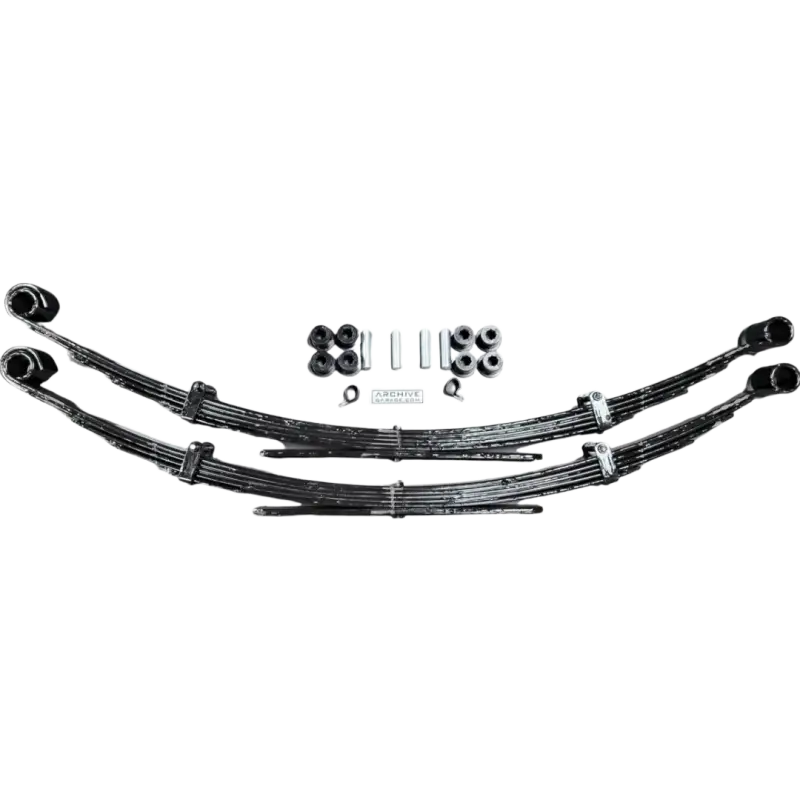

ARCHIVE EXPLORER SERIES TACOMA HEAVY DUTY LIFT LEAF SPRINGS (PAIR) TACOMA 2005-2023

Sale price$880.00 USD

U-Bolt Options: No U-Bolts

Features:

-Archive Tacoma Heavy Duty leaf packs are designed by Archive for severe duty off road travel!

-Made in USA with 5160 US steel, tip insert pads, FULL military wrap (only brand in HD range), bolted spring clips, and high quality poly bushings are included in price.

-Archive springs were tested for 2 years on dozens of Tacomas

-Carefully designed to NOT have interference issues so common with aftermarket springs in the Tacoma market

-Intended for 600-1250 lbs added to rear axle weight, to endure heavy payloads.

-Lift height: (vs stock unloaded 4WD DCSB) is estimated at about: 3" with 700 lbs, and 2.5" with 1250 lbs added to rear axle weight on Double Cab

-We recommend always having minimum of 500lbs added to rear axle weight so lift (4.0"+ unloaded)  is not excessive, but ride is good.

-There is NOT a left or right version, If one spring has a hair more arch, use it on driver side.  Load your vehicle accordingly + adjust LF coilover so front helps rear.

-These HD springs deliver 12"+ travel with Archive Hammer Hangers and shock relocation.

-Archive Hammer Hangers are recommended for best ride and handling possible.

-OEM style U-bolts are $60 extra.  Archive's Stealth HD U-bolt flip kit with Option 3 w/ Archive Speed Bumps or Option 4 w/ Super Bumps are optional ($30 discount optioned with springs)

*Disclaimer: Archive Garage in no way recommends exceeding factory GVWR, 1,250 lbs added to rear axle weight is possible without exceeding GVWR.

WARRANTY ASSISTANCE ONLY WHEN USED WITH STOCK HANGERS OR ARCHIVE HAMMER HANGERS

We know for a fact that other brand hangers do not fit well or properly align with leaf springs
