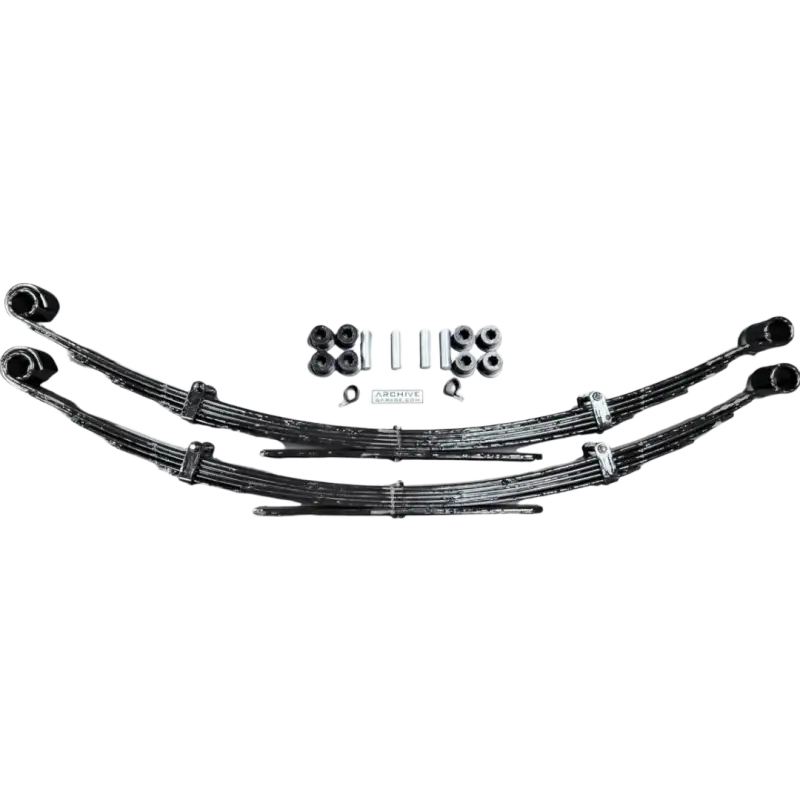

ARCHIVE EXPLORER SERIES TACOMA MEDIUM DUTY LIFT LEAF SPRINGS (PAIR) TACOMA 2005-2023

Features:

-Archive Tacoma Medium Duty leaf packs are designed by Archive for severe duty off road travel!

-Made in USA with 5160 steel, tip insert pads, full military wrap yet won't scrape hanger, bolted spring clips, and high quality poly bushings included in price.

-Carefully designed to NOT have interference issues that are so common with aftermarket springs in the Tacoma market

-Intended for 200-600 lbs added to rear axle weight.  These MD springs can endure factory payload ratings much better than stock, and these MD will articulate better.

-Lift height: (vs stock unloaded 4WD models) is estimated at about: 3.0" unloaded, 2.5" with 200 lbs, and 2" with 600 lbs added to rear axle weight on Double Cab

-Unloaded, the ride is good and flex well

-There is NOT a left or right version, If one spring has a hair more arch, use it on driver side.  Load your vehicle accordingly + adjust LF coilover so front helps rear.

-These springs are designed for more droop than stock springs.  Archive Hammer Hangers recommended for best ride and max travel.

-OEM style U-bolts are $60 extra.  Archive's Stealth HD U-bolt flip kit with Option 3 w/ Archive Speed Bumps or Option 4 w/ Super Bumps are optional ($30 discount optioned with springs)

WARRANTY ASSISTANCE ONLY WHEN USED WITH STOCK HANGERS OR ARCHIVE HAMMER HANGERS

We know for a fact that other brand hangers do not fit well or properly align with leaf springs
