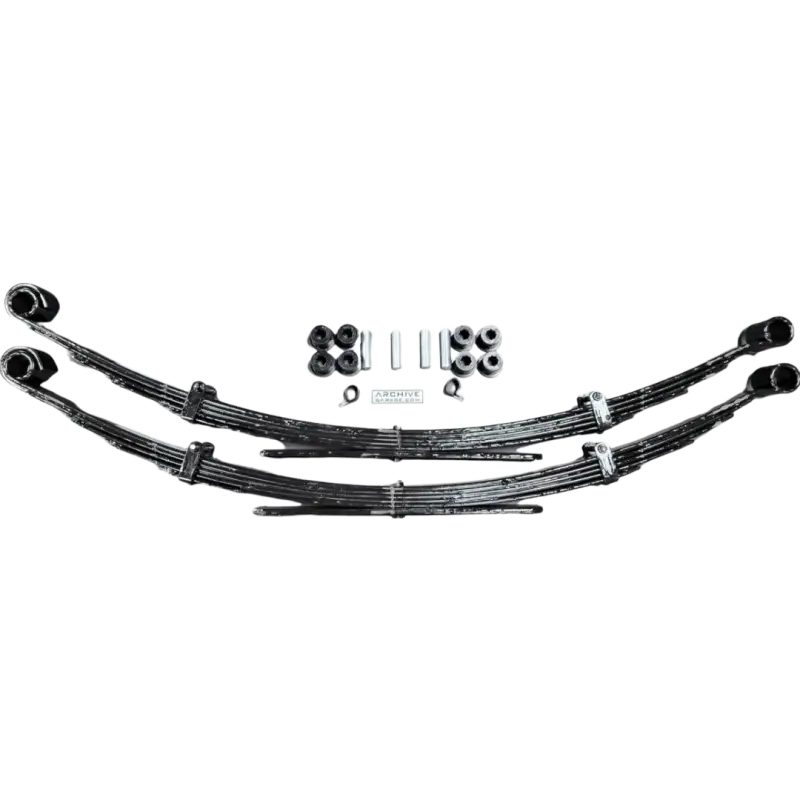

ARCHIVE EXPLORER SERIES TACOMA XD XTREME DUTY LIFT LEAF SPRINGS (PAIR) TACOMA 2005-2023

*Disclaimer: Archive Garage in no way recommends exceeding factory GVWR, but we offer a spring for the many Tacoma owners who are in that situation.

Features:

-Archive Tacoma XD Xtreme Duty 6+1 leaf packs are designed by Archive for severe duty off road travel!

-Made in USA with 5160 US steel, tip insert pads, FULL military wrap (only brand with wrap in HD/XD range), bolted spring clips, and high quality poly bushings are included in price.

-Archive springs were tested for 2 years on dozens of Tacomas

-Carefully designed to NOT have interference issues so common with aftermarket springs in the Tacoma market

-Intended for 1250-1750lbs* added to rear axle weight, to endure heavy payloads*, can handle significantly more.

-Lift height: (vs stock unloaded 4WD DCSB) is estimated at about: 3.5" with 1250 lbs, and 2.5" with 1750 lbs added to rear axle weight on Double Cab

-We recommend always having minimum of 1,000lbs added to rear axle weight so lift (4.0"+ unloaded)  is not excessive.

-There is NOT a left or right version, If one spring has a hair more arch, use it on driver side.  Load your vehicle accordingly + adjust LF coilover so front helps rear.

-These XD springs deliver 12" travel with Archive Hammer Hangers and shock relocation.

-Archive Hammer Hangers are recommended for best ride and handling possible.

-OEM style U-bolts are $60 extra.  Archive's Stealth HD U-bolt flip kit with Option 3 w/ Archive Speed Bumps or Option 4 w/ Super Bumps are optional ($30 discount optioned with springs)

*Disclaimer: Archive Garage in no way recommends exceeding factory GVWR, but we offer a spring for the many Tacoma owners who are in that situation.

WARRANTY ASSISTANCE ONLY WHEN USED WITH STOCK HANGERS OR ARCHIVE HAMMER HANGERS

We know for a fact that other brand hangers do not fit well or properly align with leaf springs
