Billet Uniball UCA | For 2024+ Tacoma, GX550, Landcruiser
Lead Time May Vary

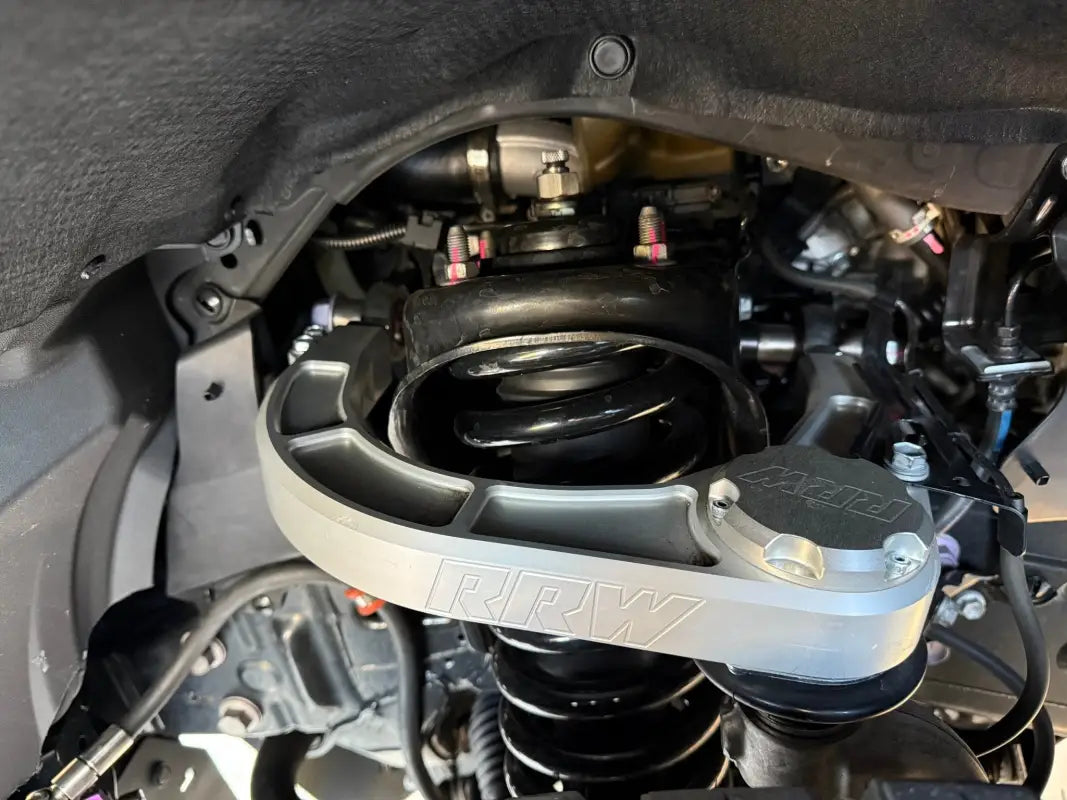

Upgrading the UCA (upper control arm) is a must when leveling or lifting your front end by 2-3”. Our meticulously designed UCA's correct your geometry for the ultimate ride.
Specifications
- Uniball (PTFE Kevlar reinforced) bearing completely sealed for long service life
- Designed to maintain proper wheel alignment for 1.5in - 3in lift to prevent tire wear

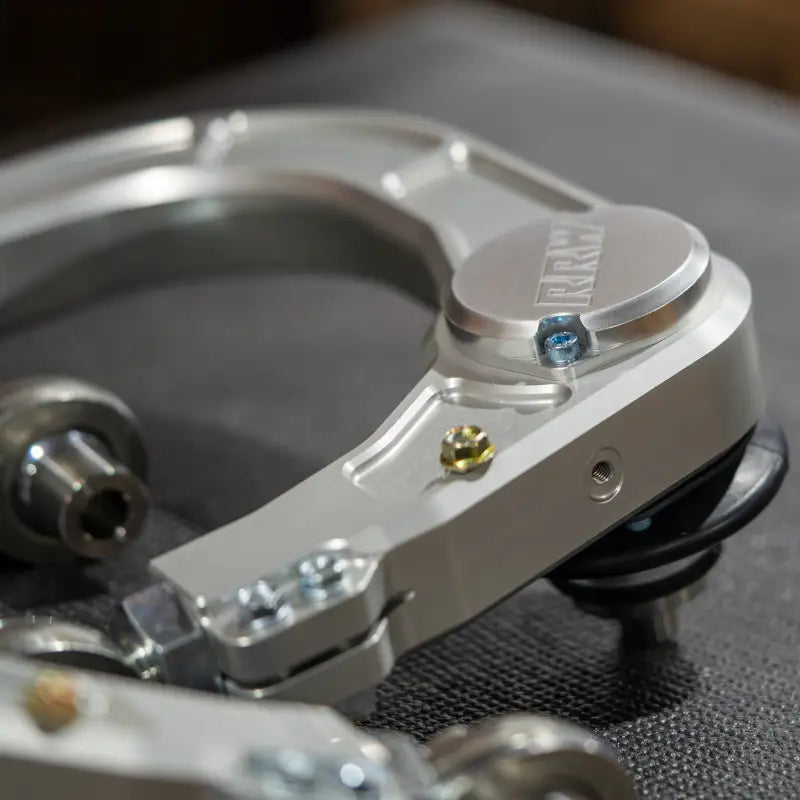

- Custom-plated 14mm uniball through-bolt (equal in strength to a 12-point bolt) safely clamps the entire outboard bearing assembly directly to the upright - less chance of failure than 2-piece designs
- Allows full lock-to-lock tire clearance throughout the suspension travel

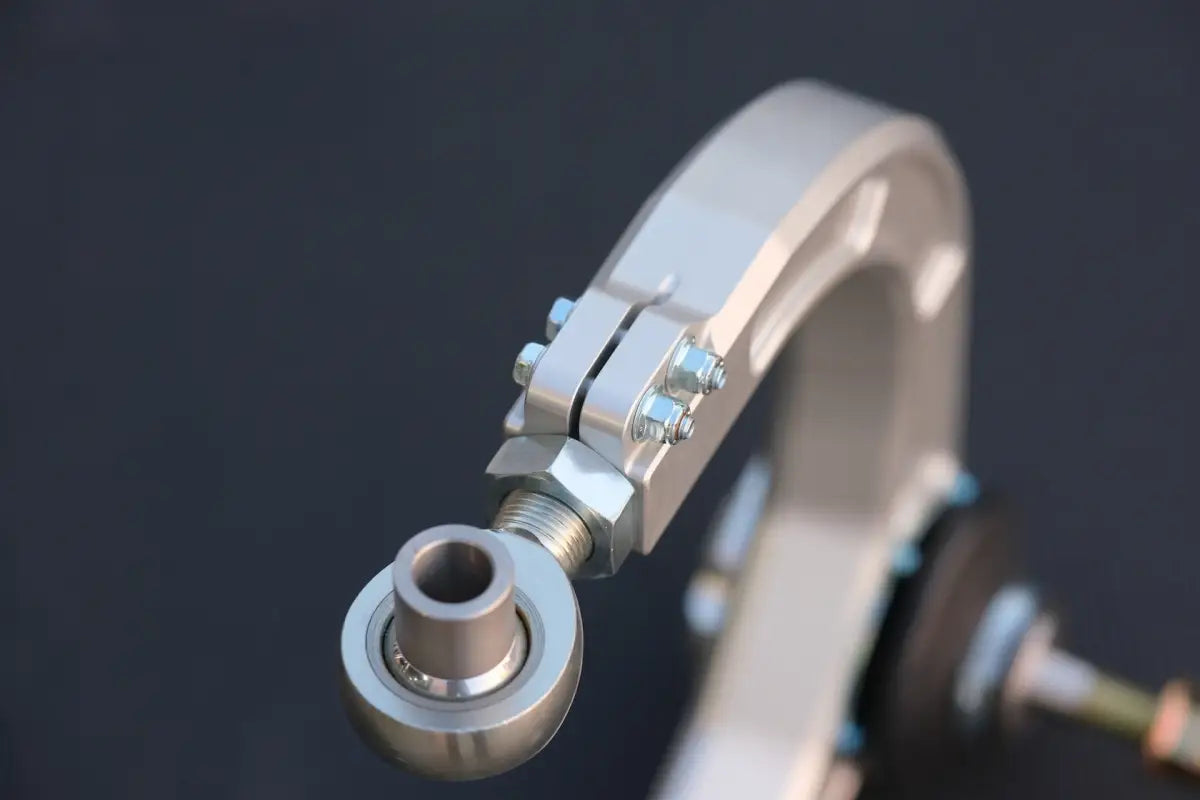

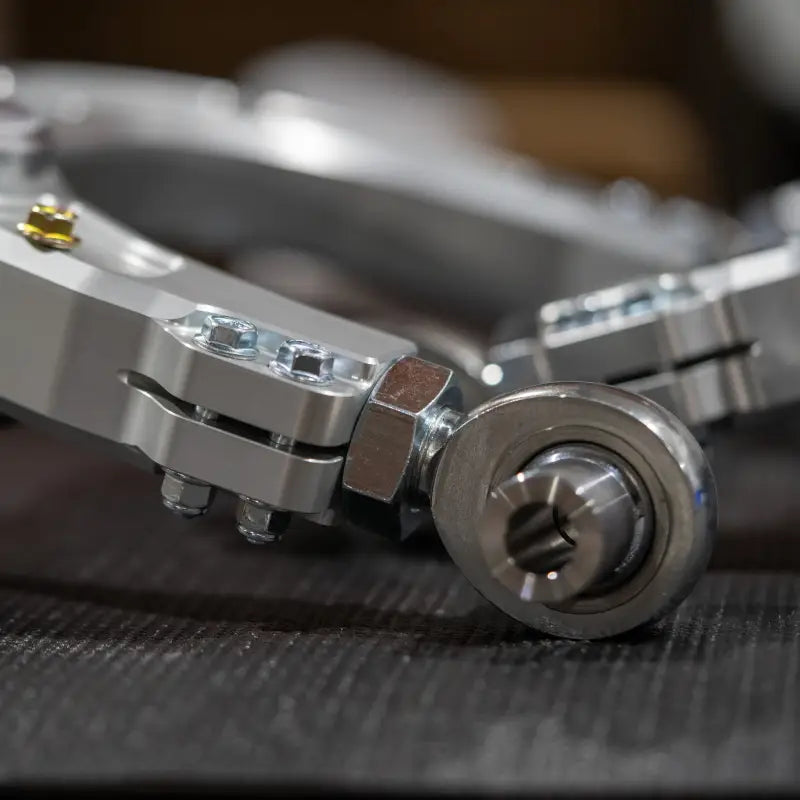

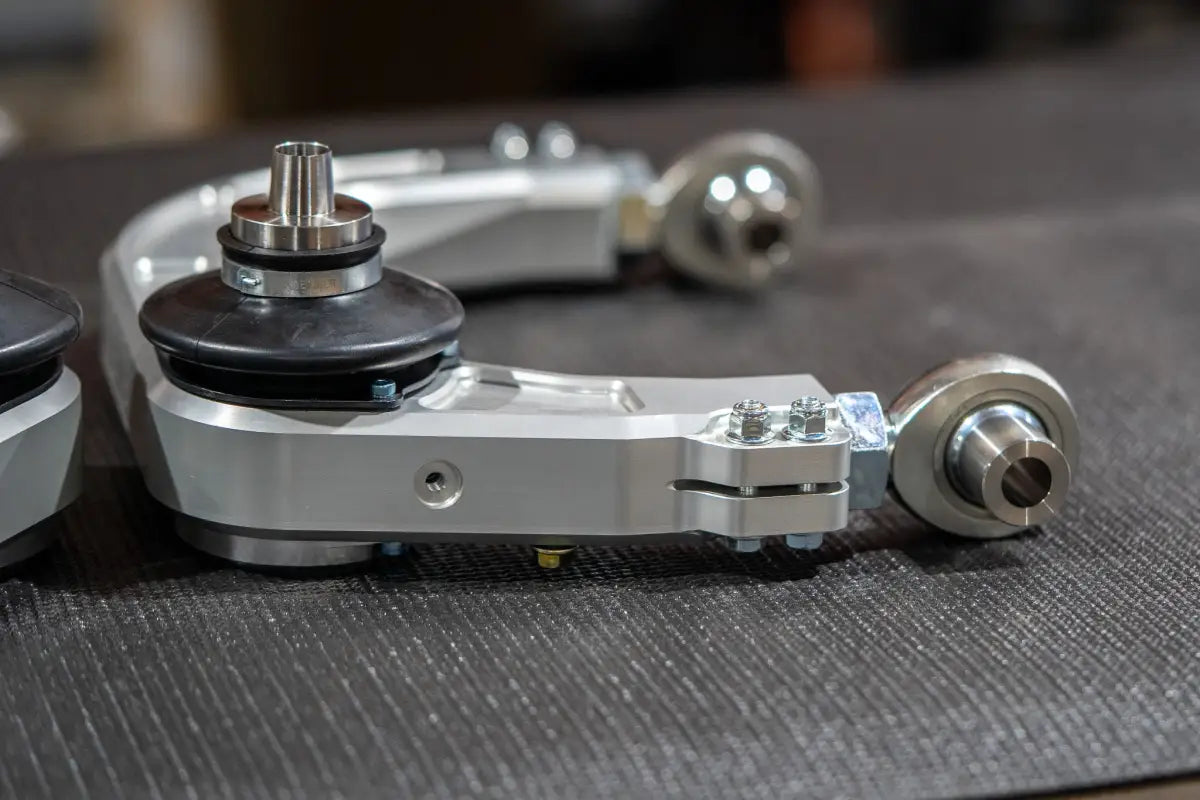

- Each inner rod-end has two bolts per side clamp for safety
- Each rod-end bolt has a nylock nut - no threaded holes to strip

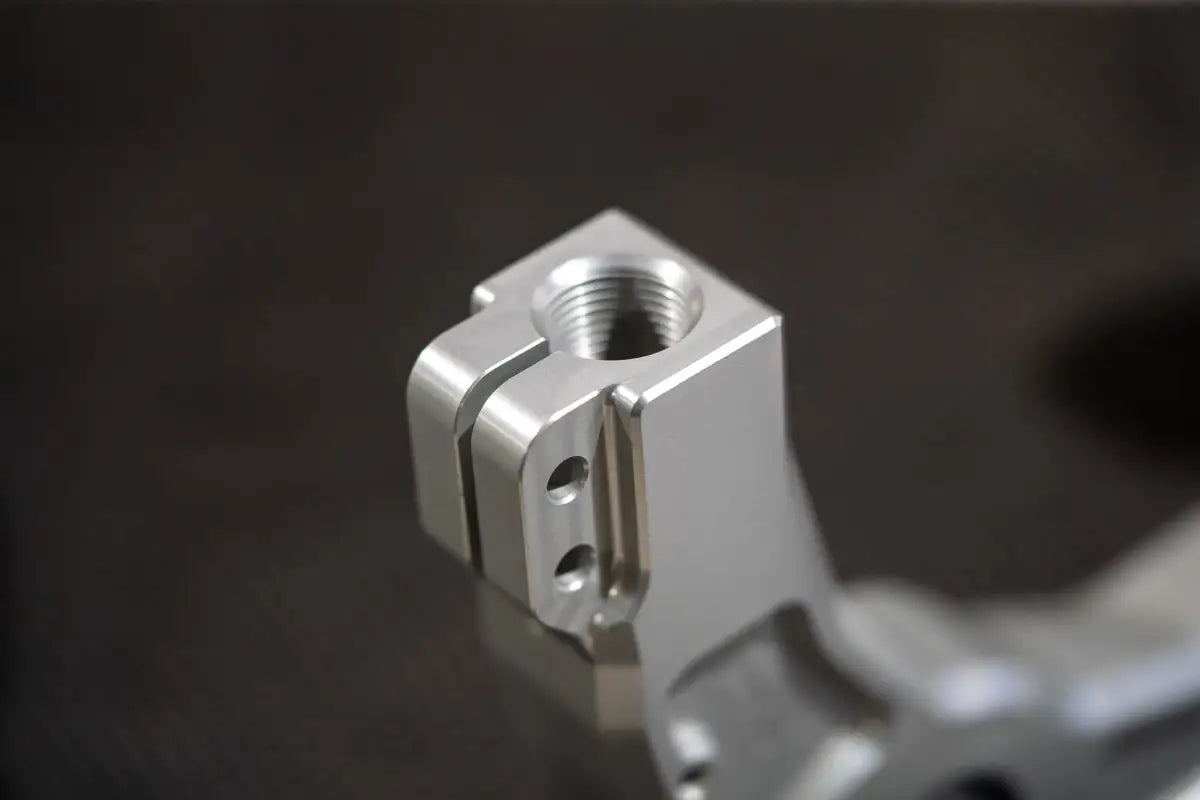

- The inner rod-end clamps are fully radiuses inside and out - which means no sharp corners that might cause stress cracks
- FEA analyzed for 10,000-pound side impact loads
-
Finished in Type II Anodize
Product Highlights
American made

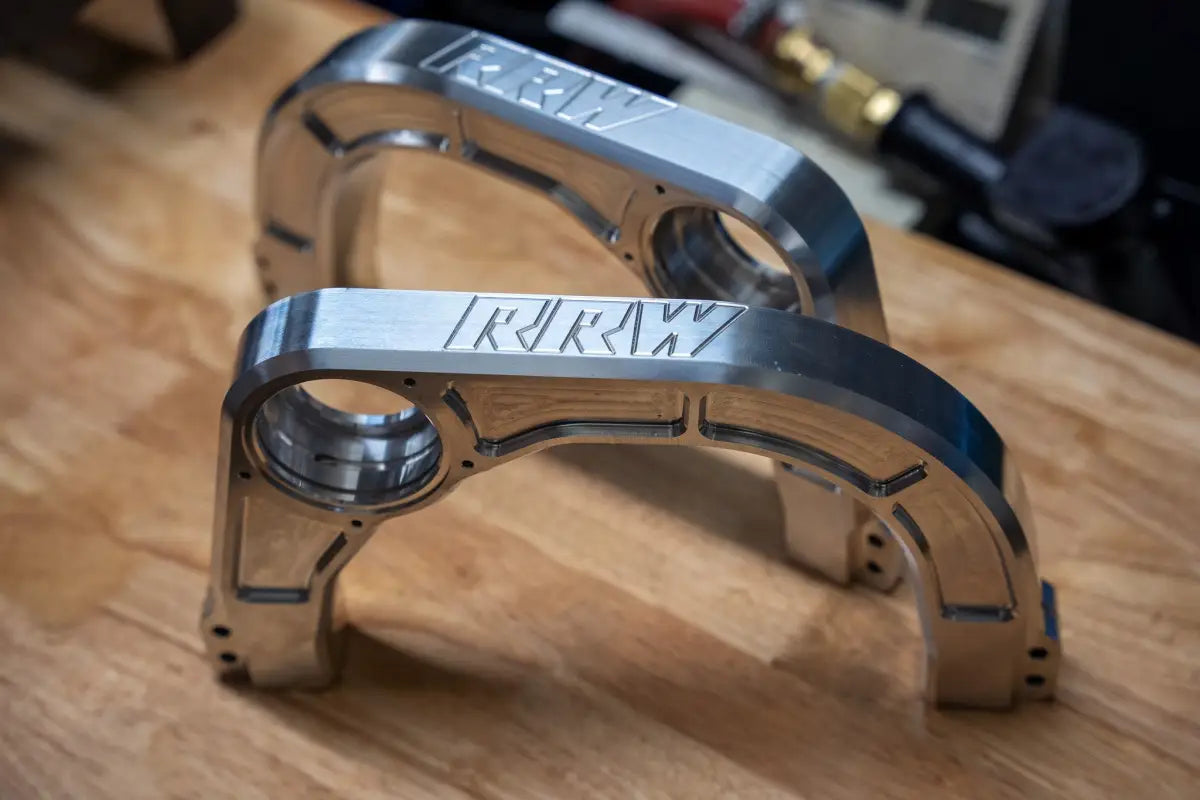

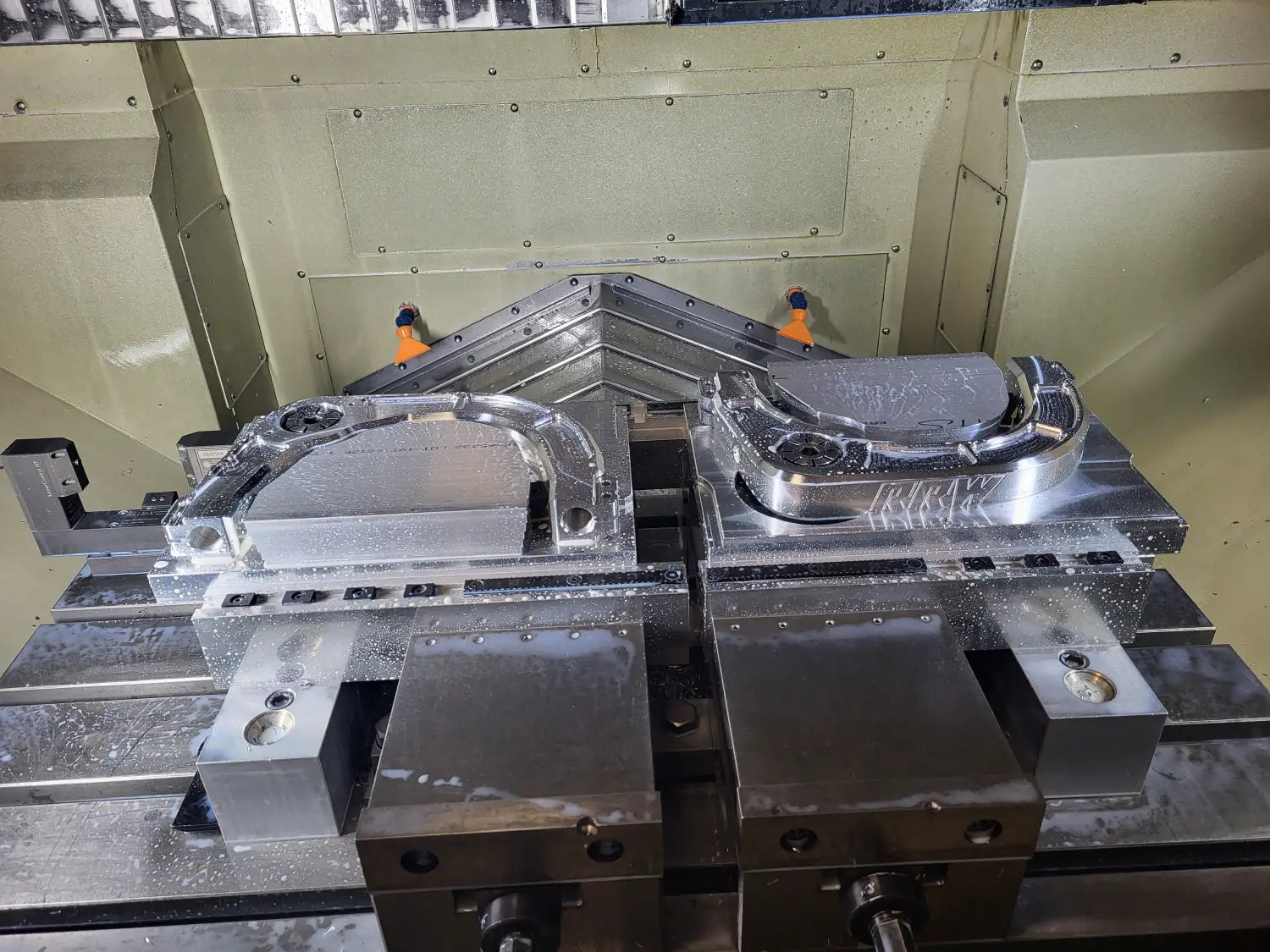

CNC precision machined and anodized in California
Aerospace grade material
Crafted from aerospace 6061-T6 Aluminum

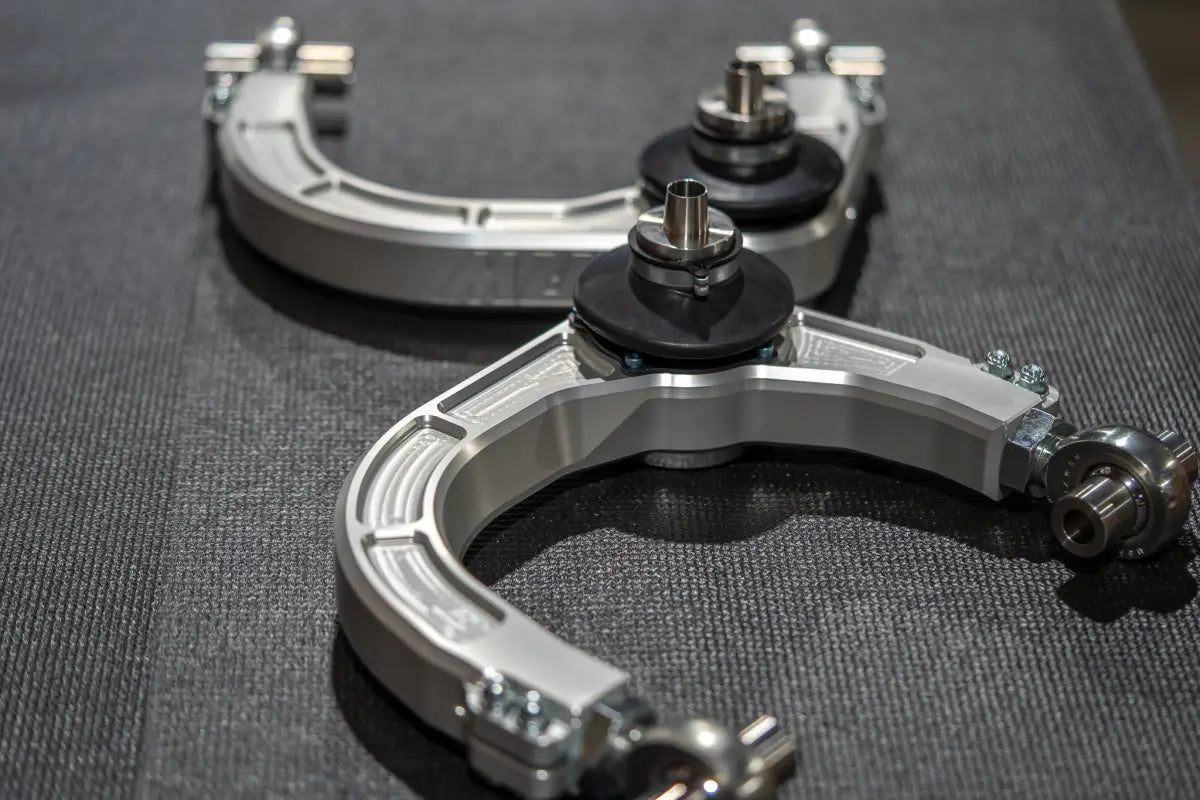

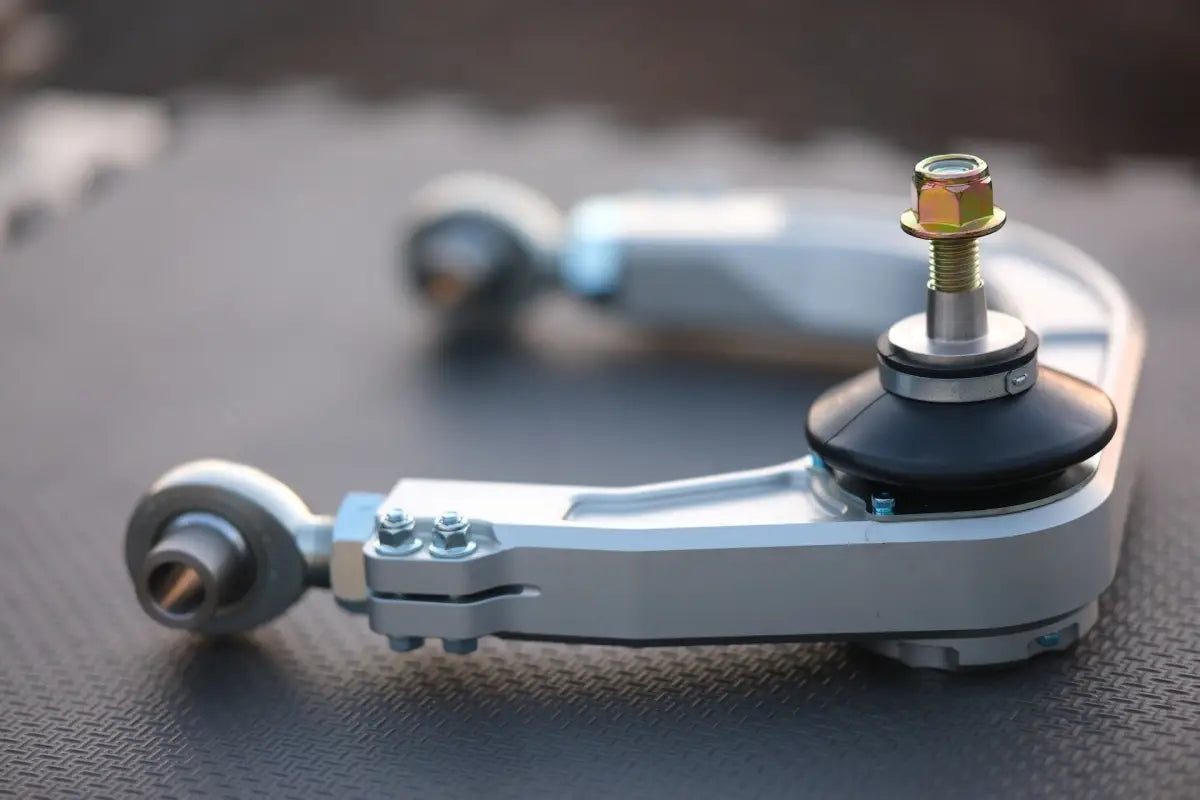

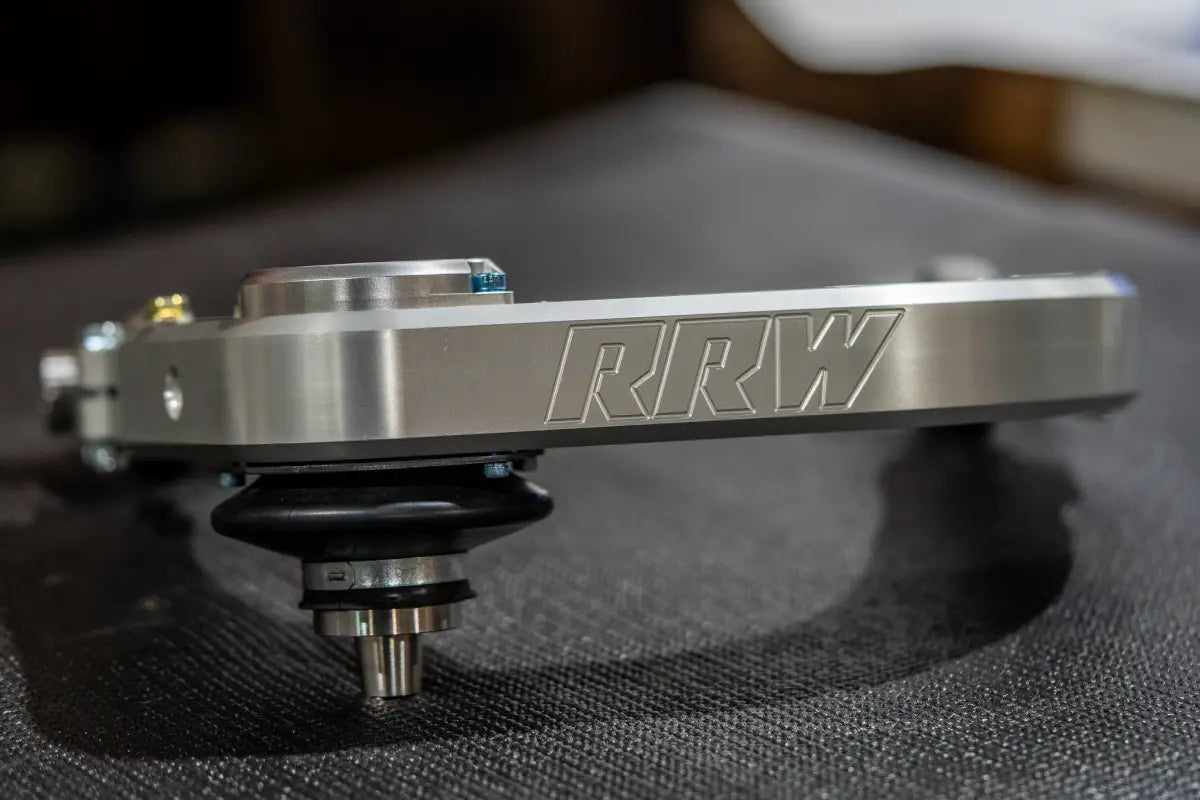

Completely sealed uniball
Only we offer a billet UCA that fully seals the uniball, prolonging the life of the fastest wearing component. By keeping kevlar reinforcement PTFE liner free of debris and grime, its life is prolonged.

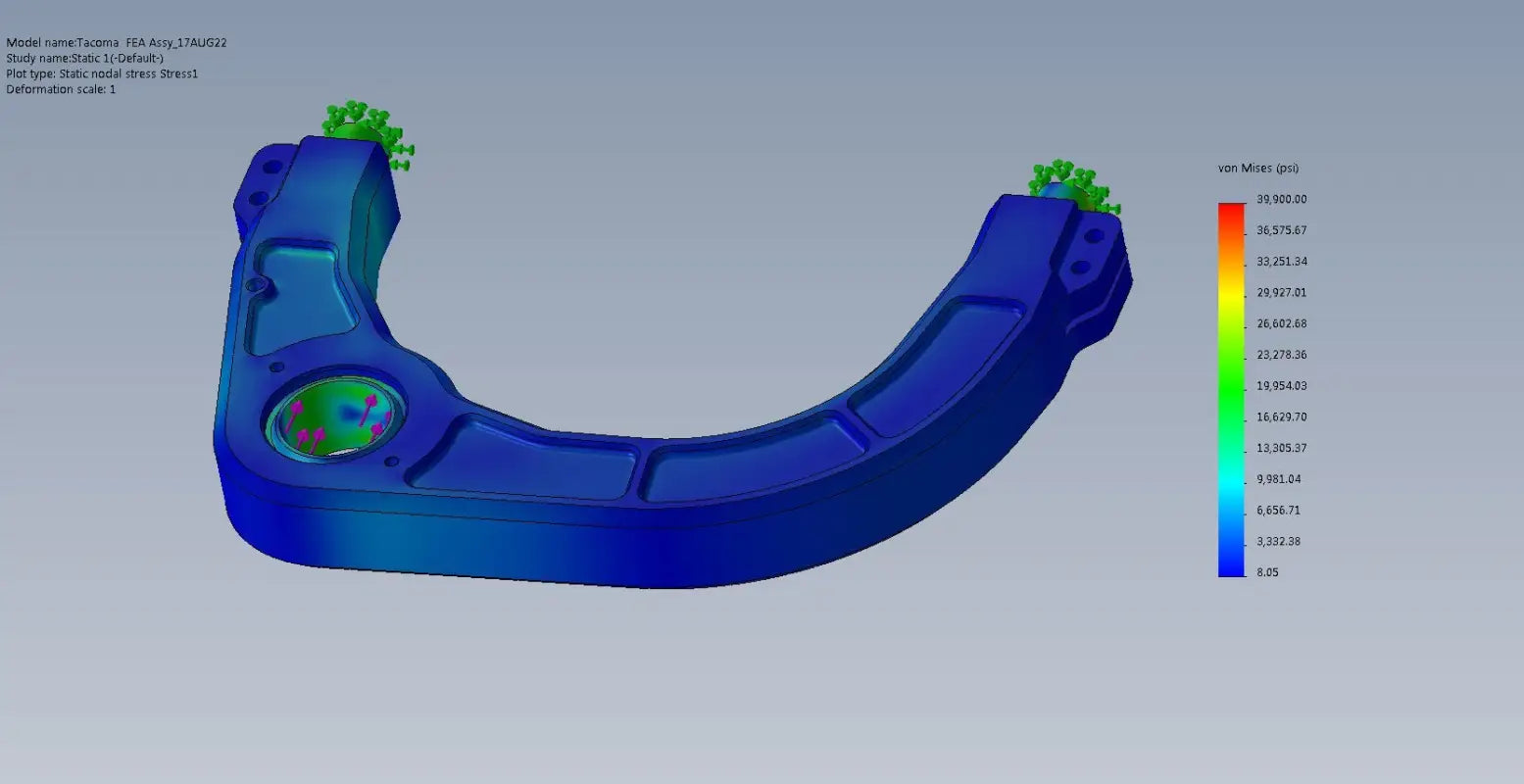

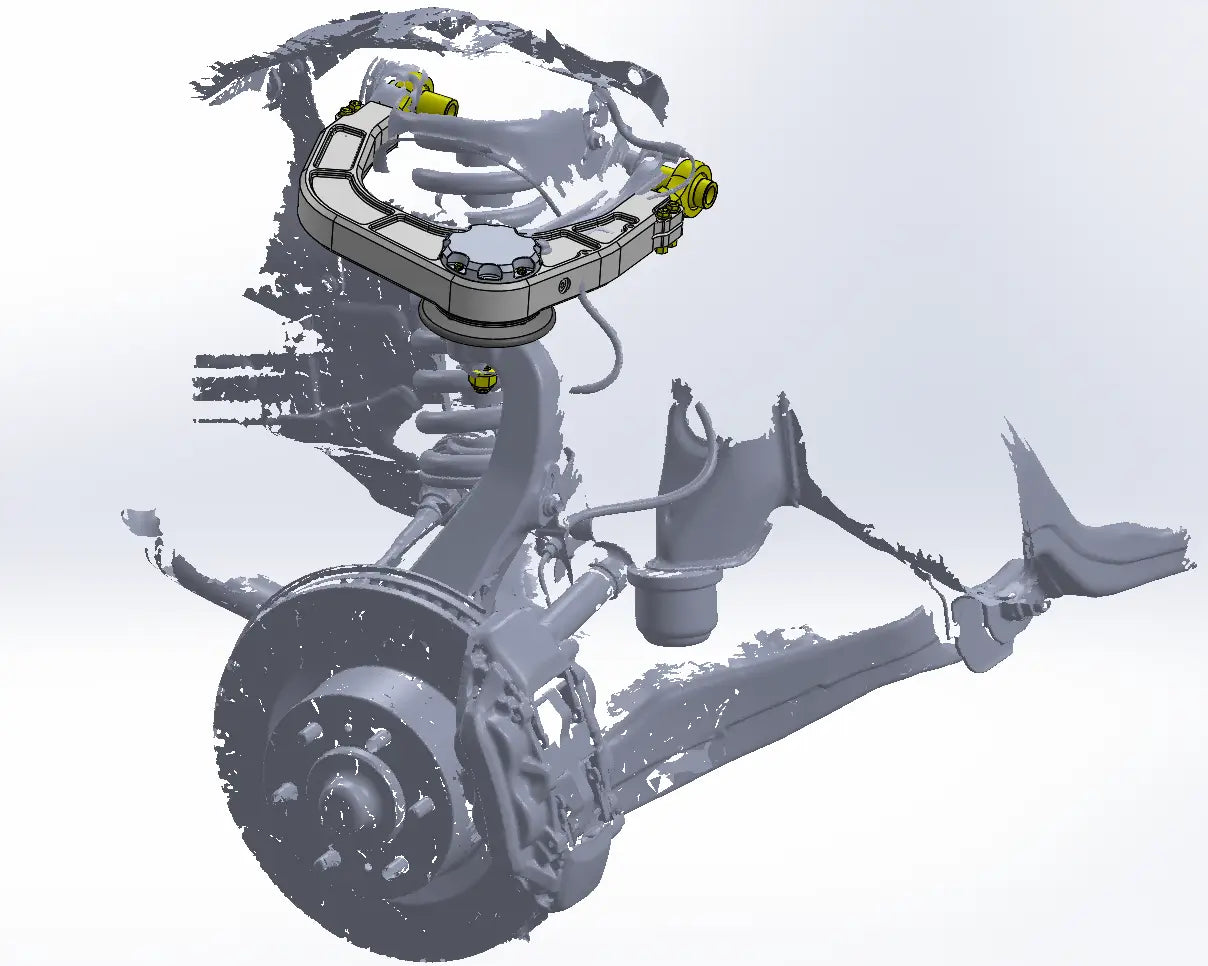

CAD Designed and FEA Analyzed
Using 3D scan data, we are able to reverse engineer the geometry and optimize it for lift. The geometry is configured for balanced comfort and performance both on and off road. Various versions of prototypes are made, installed, and analyzed to ensure correction of camber, caster and reduced bump steer.
Machining Details

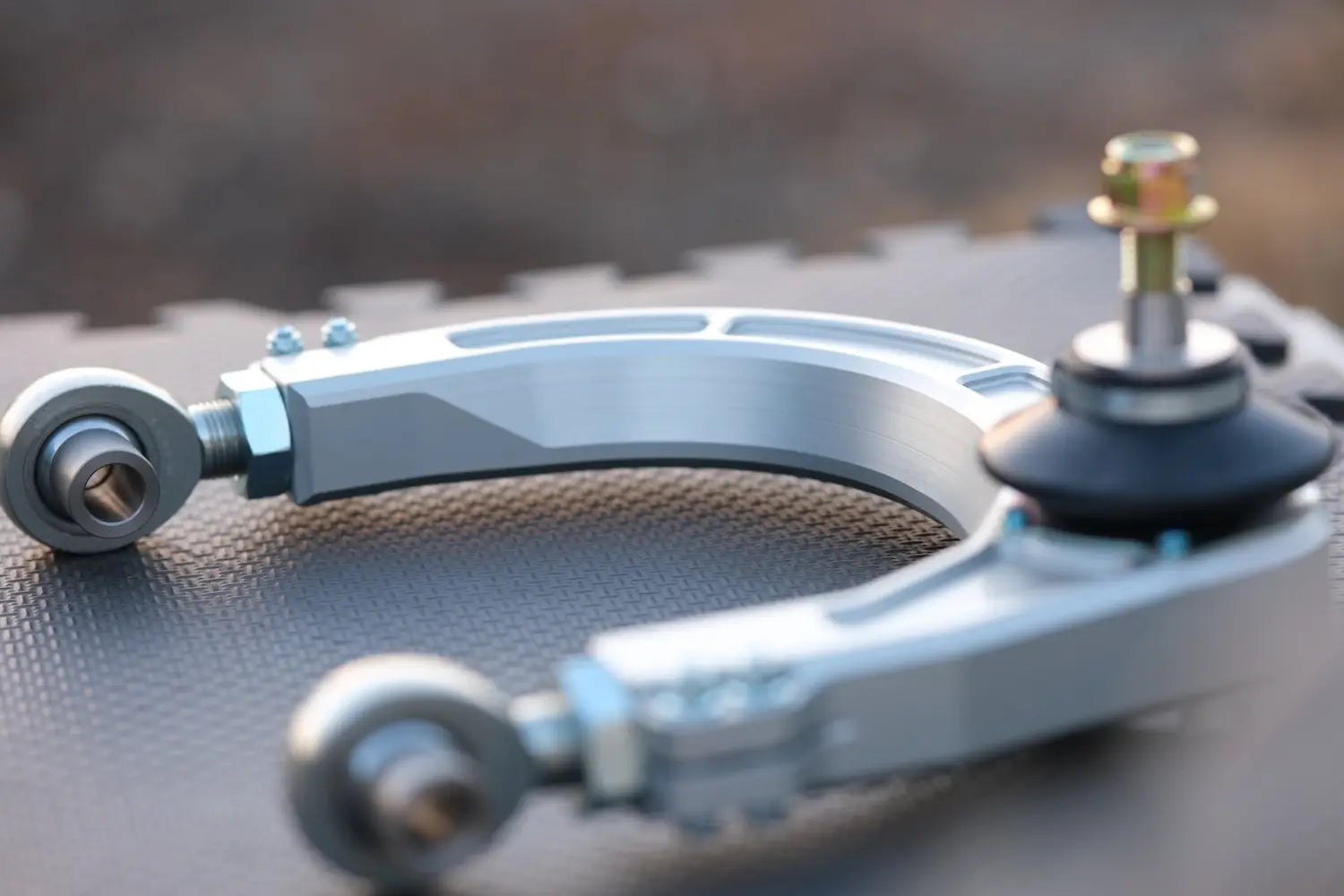

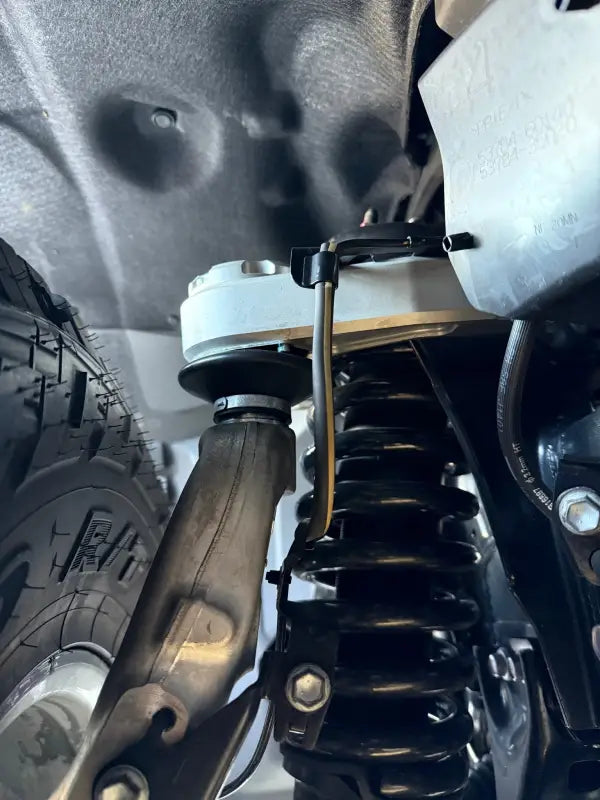

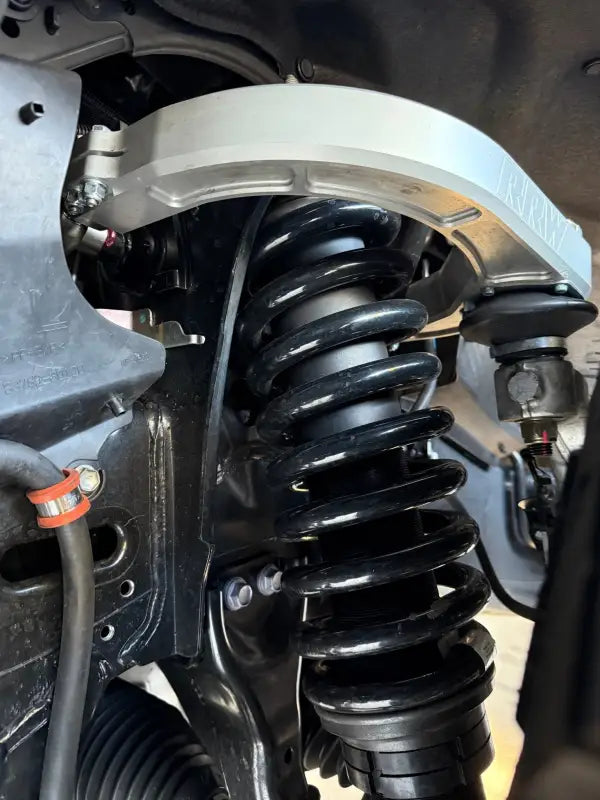

Large chamfer at inner radius increases clearance for the coil spring at full suspension droop.
Hardware & Contents
- Huge 1.25 inch Uniball Kevlar reinforced PTFE teflon lining
- 7/8 inch rod end bearings
- SS304 precision machined misalignment spacers
- 14mm G12.9 uniball through bolt (chrome plated) w/ nylon nut
- Rubber dust boot, clamp and laser cut clamp plate
- Billet dust clamp
- 6mm hardware for pinch ends
More detailed information can be found here: https://trailtacoma.com/review/rrw-billet-upper-control-arms/
Vehicle Application
- 2024+ Tacoma 4th Gen
- 2024+ Lexus GX550
- 2024+ Landcruiser
