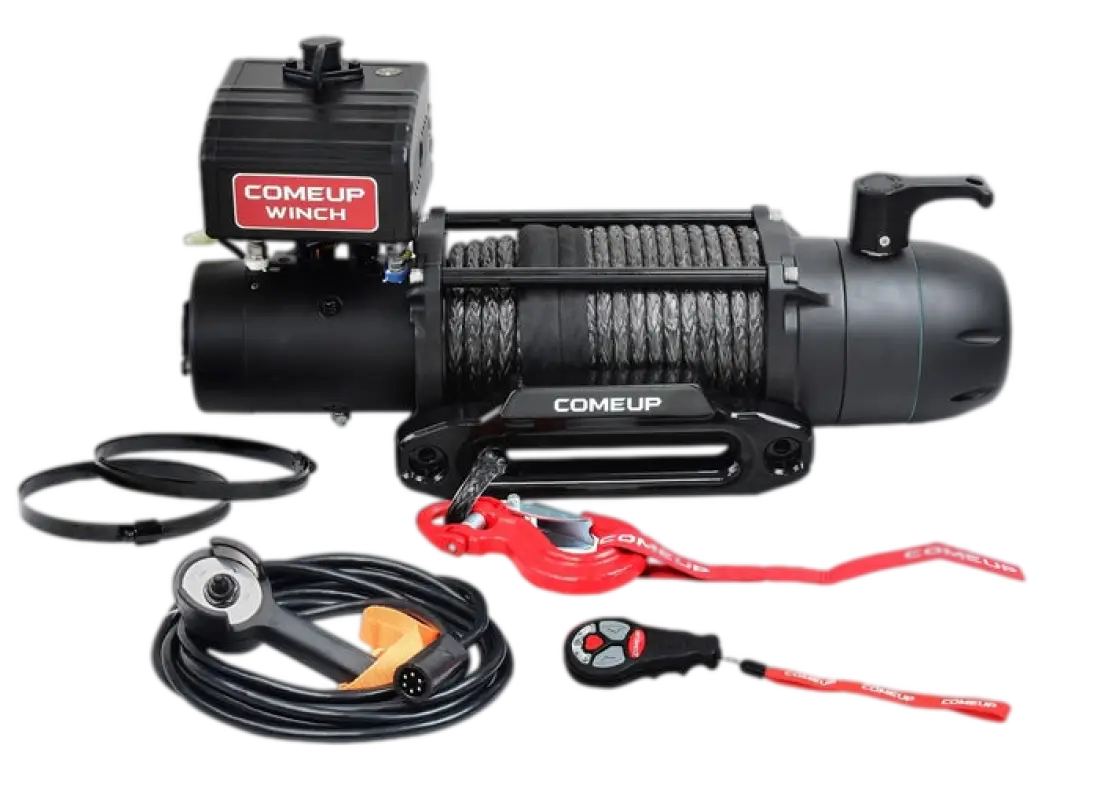

SEAL Slim 12.5rs 12V, W/ Synthetic Rope & Wireless Remote
12V DC severe duty winch rated at 12,500 lbs pulling meets or exceeds your expectations.
The slim size plus strong of motor housing and gearbox support rack are suitable for equipped with any vehicles.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch

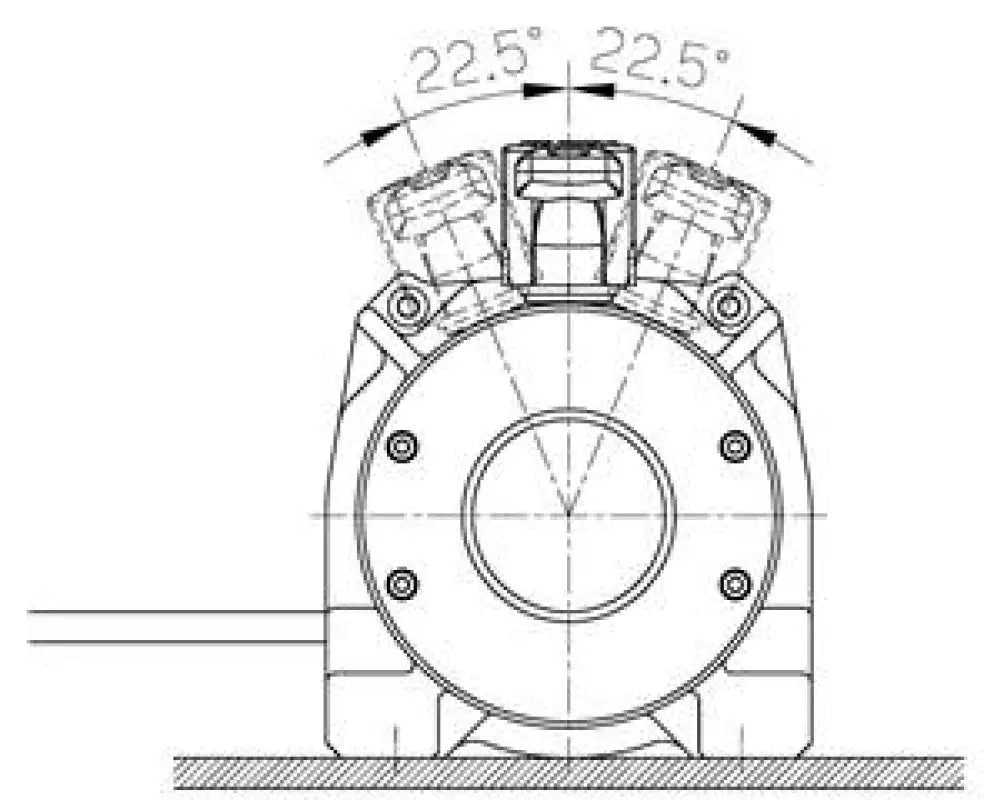

New clutch lever kit is easy to engage and disengaged. 16 equally positioned pin holes to ensure seamless clutch transmission and make it easily rotate by 22.5-degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
Cutout switch prevents the vehicle battery from draining when no use.
Both built-in digital two-way wireless remote control and wired waterproof remote control.
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Rated Line Pull 12,500 lbs (5,670 kg) single line
Motor 5.0 hp / 3,730 w 12V Series Wound
Gear Ratio 3-Stage Planetary 225:1
Clutch (freespooling) Rotating Ring Gear
Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum

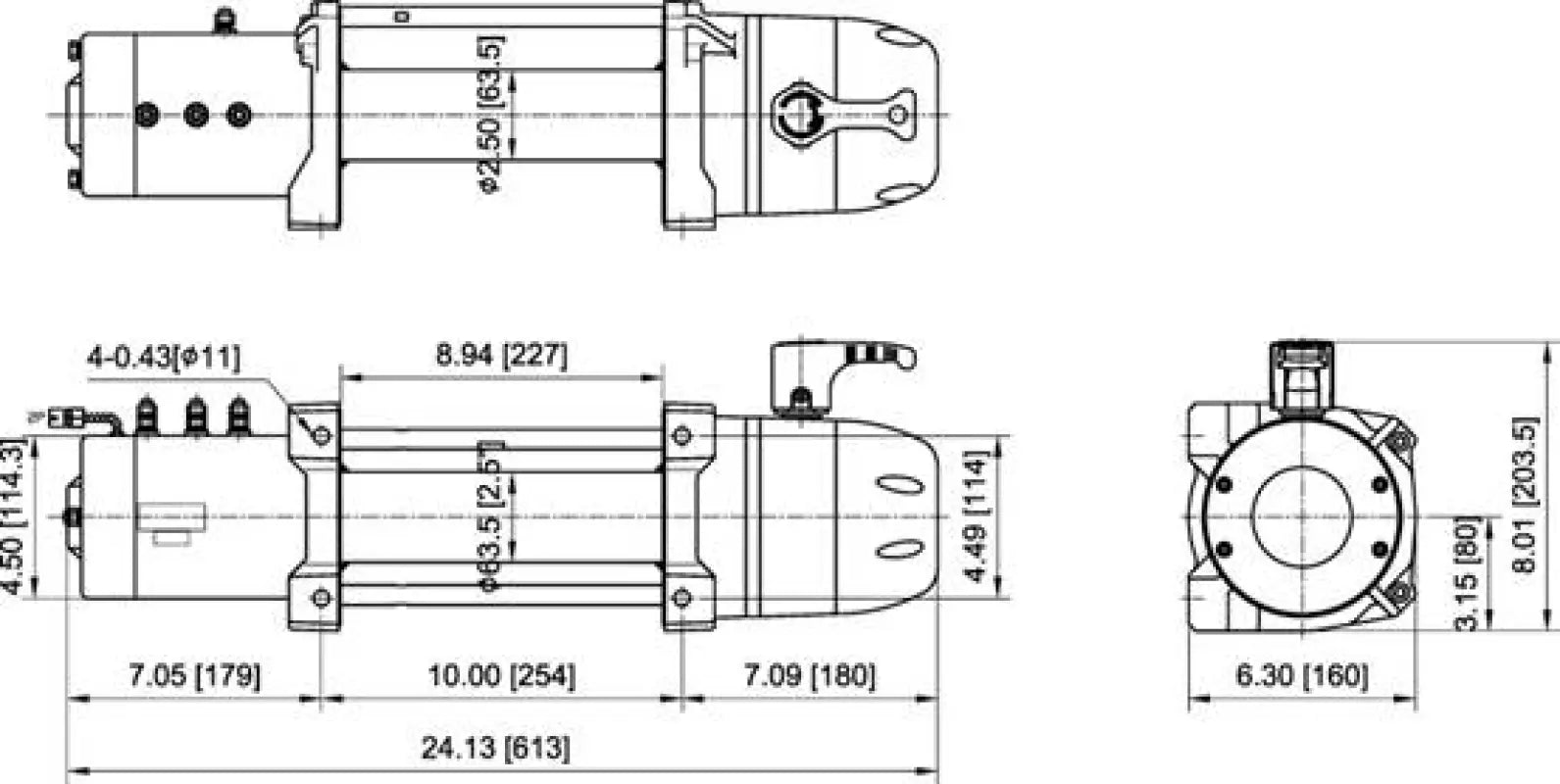

Drum Size 2.5" x 9" (63.5 x 228 mm)
Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type Synthetic Rope
Rope Size 7/16" x 82' (11 mm x 25 m)
Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
Winch Weight 61.7 lb (28 kg)
Gross Weigh 89.1 lb (40.5 kg)
Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
