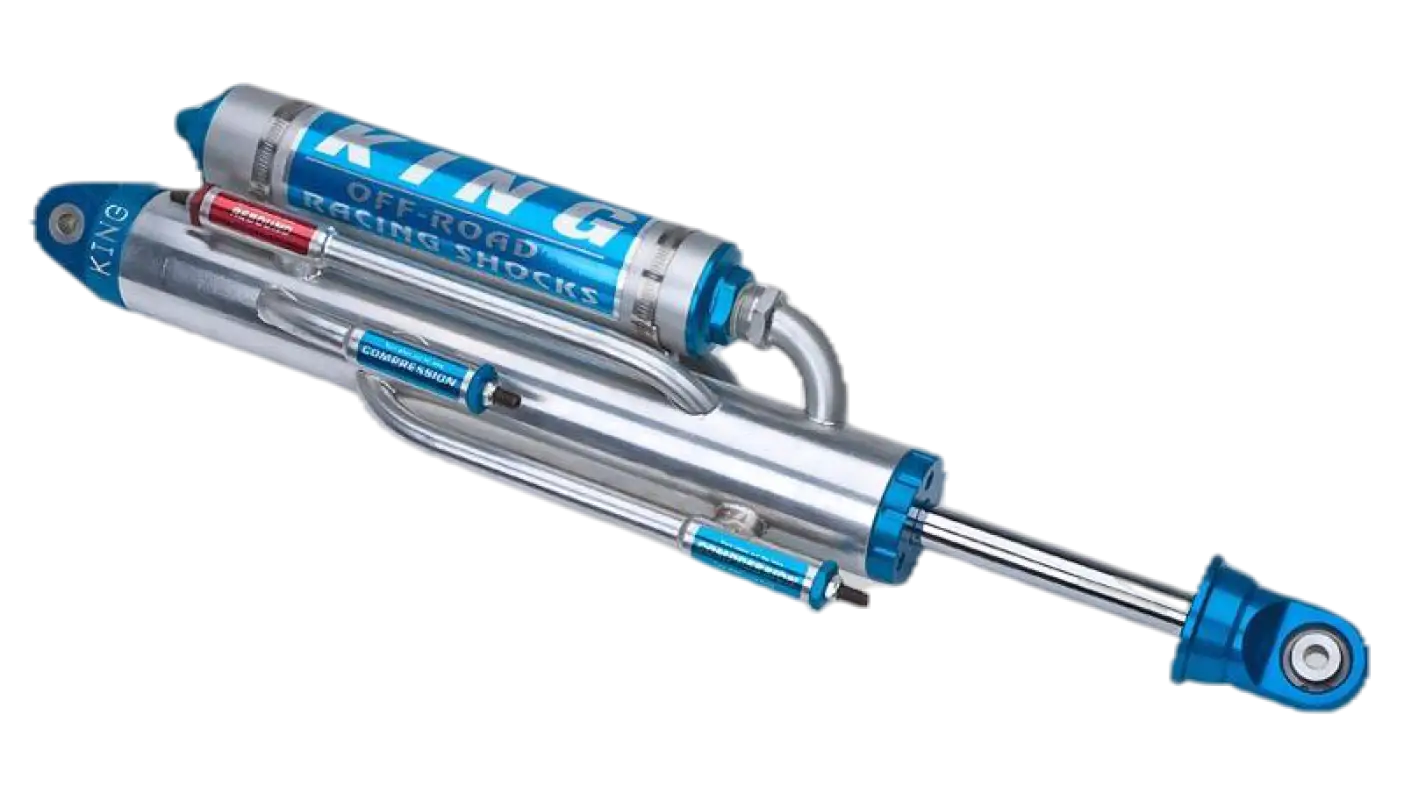

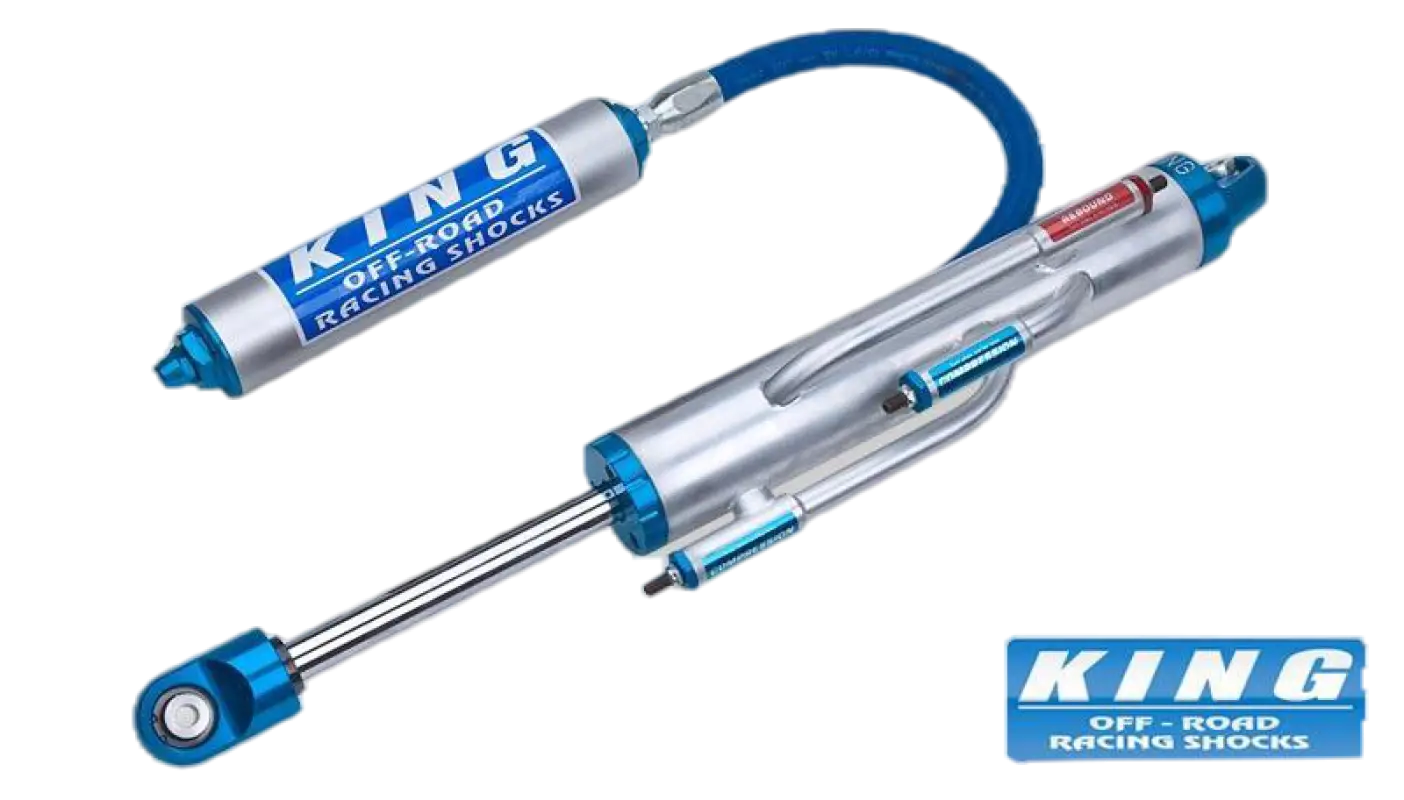

2.5 Race Series 3 Tube 7/8" Shaft Bypass Shock

Sale price$1,209.00 USD

Shock Travel (in.): 8 IN
Shock Configuration: Remote Reservoir

King's Pure Race Series shocks represent the highest level of race shock development; they are designed with one purpose in mind, all out racing. Our constant process of research and development has allowed us to dominate in the toughest races on the planet like the legendary Baja 1000 and the Dakar Rally.

The Pure Race series have unique materials and design features to withstand blistering temperatures up to 450 degrees and the immense forces encountered by the fastest competition only vehicles. Every aspect of these shocks has been optimized to deliver brute strength, unparalleled performance and precision adjustability. King Pure Race series shocks deliver the control you need whether you are floating through the whoops in a high strung screamer or punishing the dirt in your big bore heavyweight. If your goal is to dominate the competition you need to experience the level of control a set of Kings will provide.

100% made in the USA under the strictest tolerances from the highest quality materials obtainable. Easily tunable and serviceable with simple hand tools.

Features:

  • Shock cylinders are precision bored to within +/- .001, then honed after cadmium plating to remove buildup for a tight piston seal and optimum valving function. Coilover shocks are machined with our own truncated thread design for ultimate strength and trouble free spring adjustments.
  • Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust due to gas charging contamination. Threaded end caps withstand high pressures and ease in maintenance.
  • O-ring Schrader cover that mounts to the cap, not the valve itself, creates a positive seal and keeps dirt and moisture out.
  • The heat treated 2024 aluminum alloy piston has our highly developed port configurations that contribute to the unique damping performance.
  • Heat treated stainless alloy valve shims have a unique grain structure that does not fracture and remains stable at high temperatures to maintain consistent valve function.
  • Wear bands are made from an exclusive PTFE bronze composite that wears longer than any other material available.
  • Viton rod seals withstand temps up to 450 degrees. Wiper seals are machined with diamond tooling from a high temperature resistant carbon composite material.
  • Large diameter shafts are induction heat treated, hard chromed and micro polished to a mirror finish. The 58-62 Rockwell hardness and 100,000 psi tensile strength shafts require expensive, specialized machining operations but the additional effort eliminates rock damage and creates a superior sealing surface.
  • Aluminum components are machined from aircraft quality billet.
Part # Travel Compression
Length
Extended
Length
Tube Count
King-RS2510-BP3H 10" 19.81" 29.81" 4
King-RS2512-BP3H 12" 21.81" 33.81" 4
King-RS2514-BP3H 14" 24.56" 38.56" 4
King-RS2516-BP3H 16" 27.31" 42.56" 4
King-RS2518-BP3H 18" 30.06" 48.06" 4
