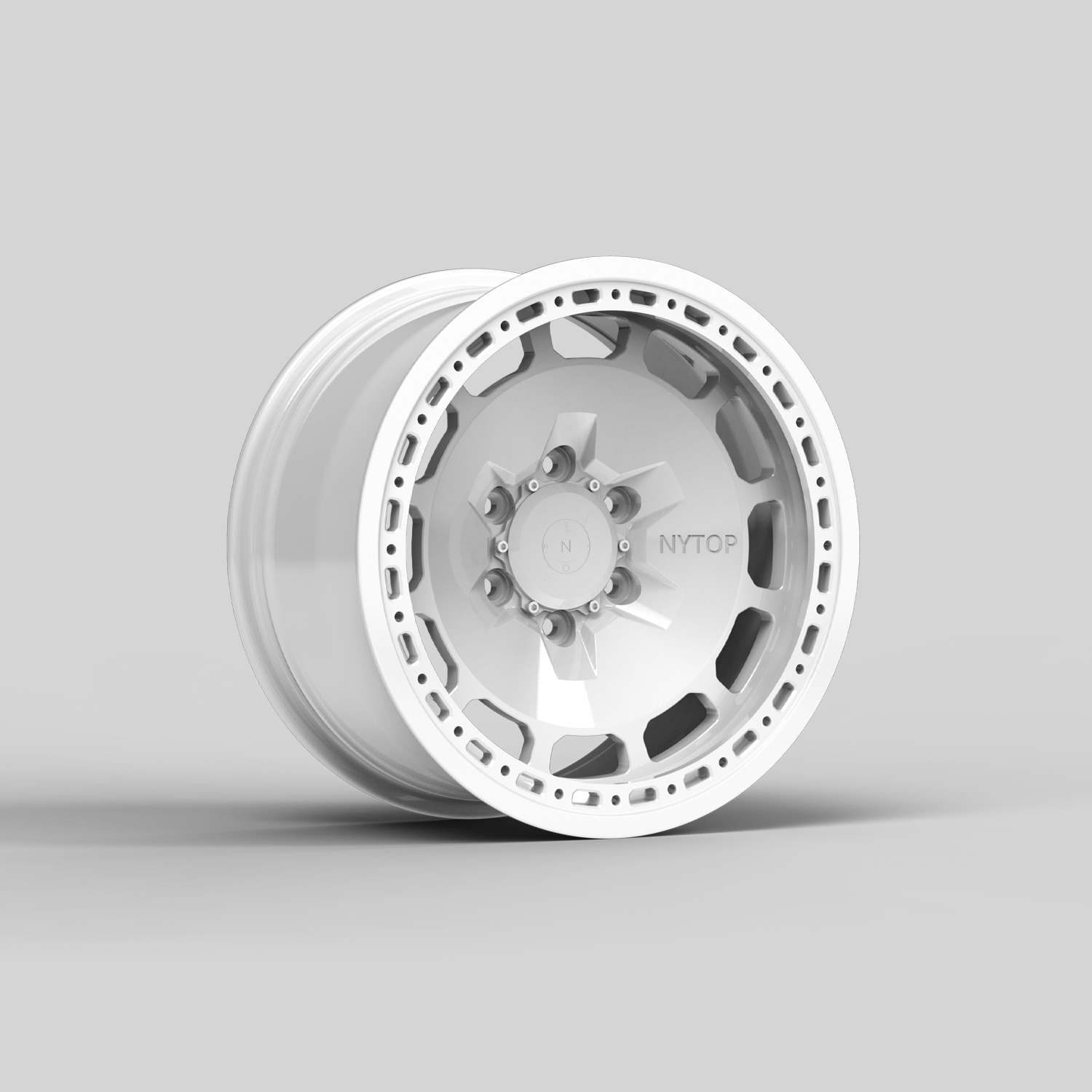

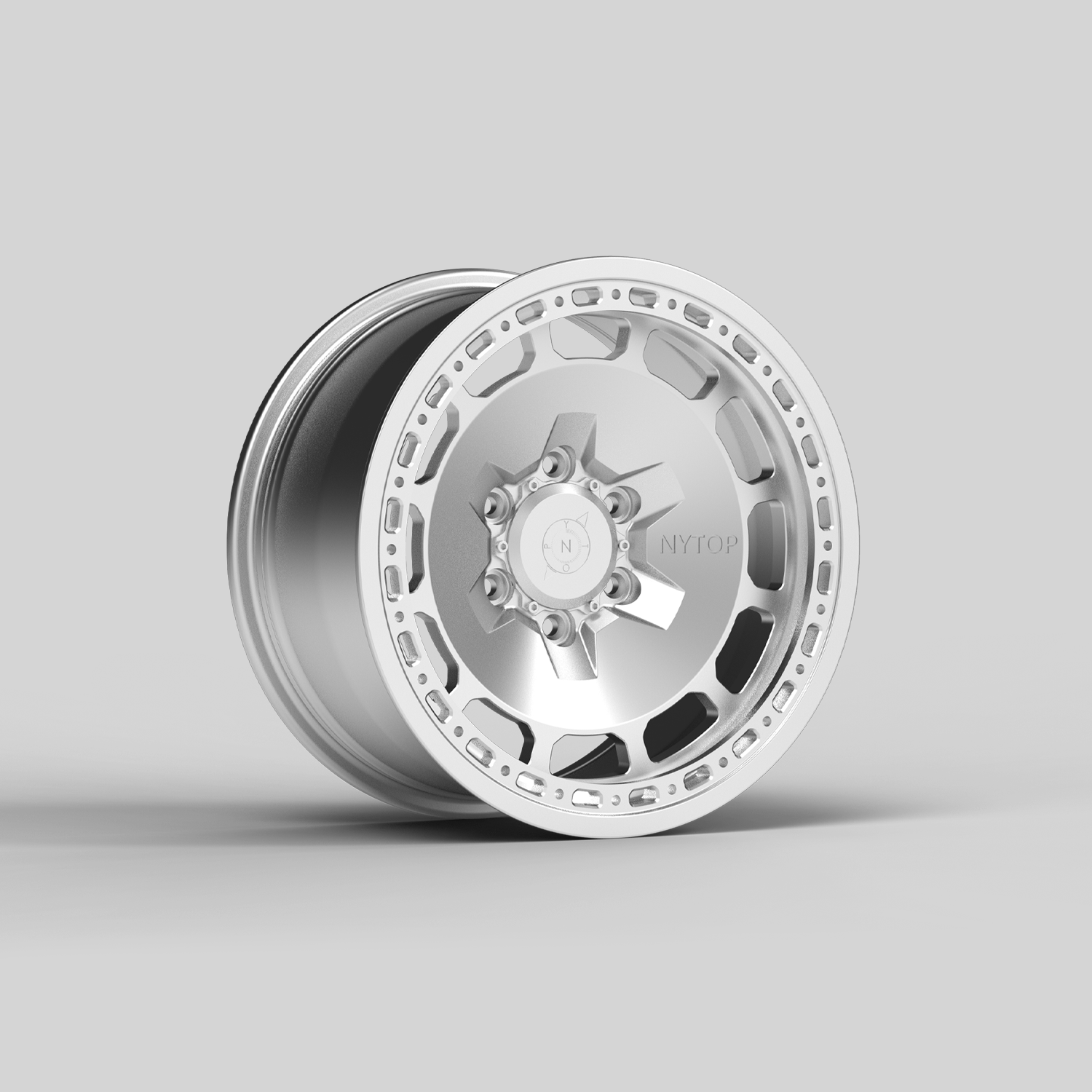

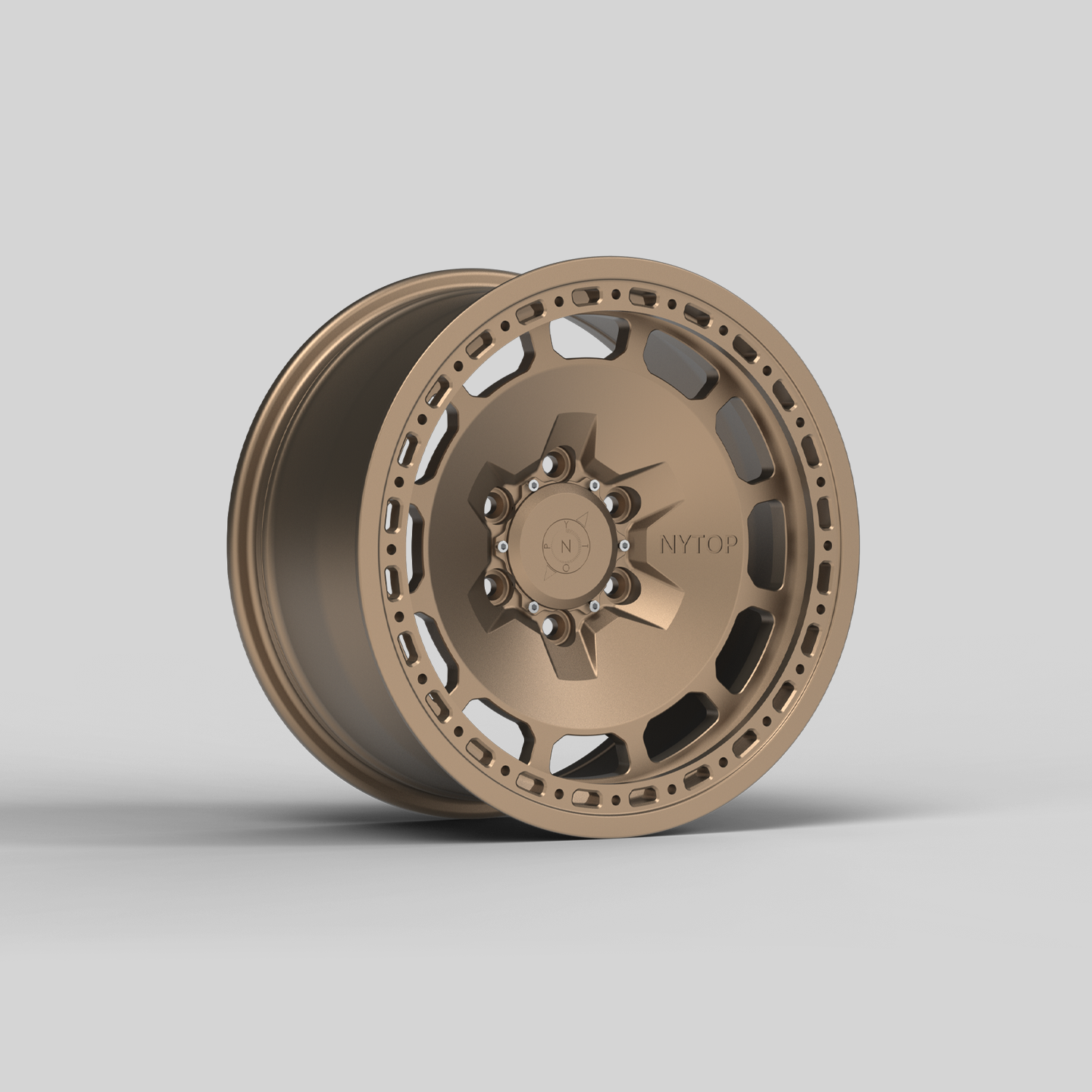

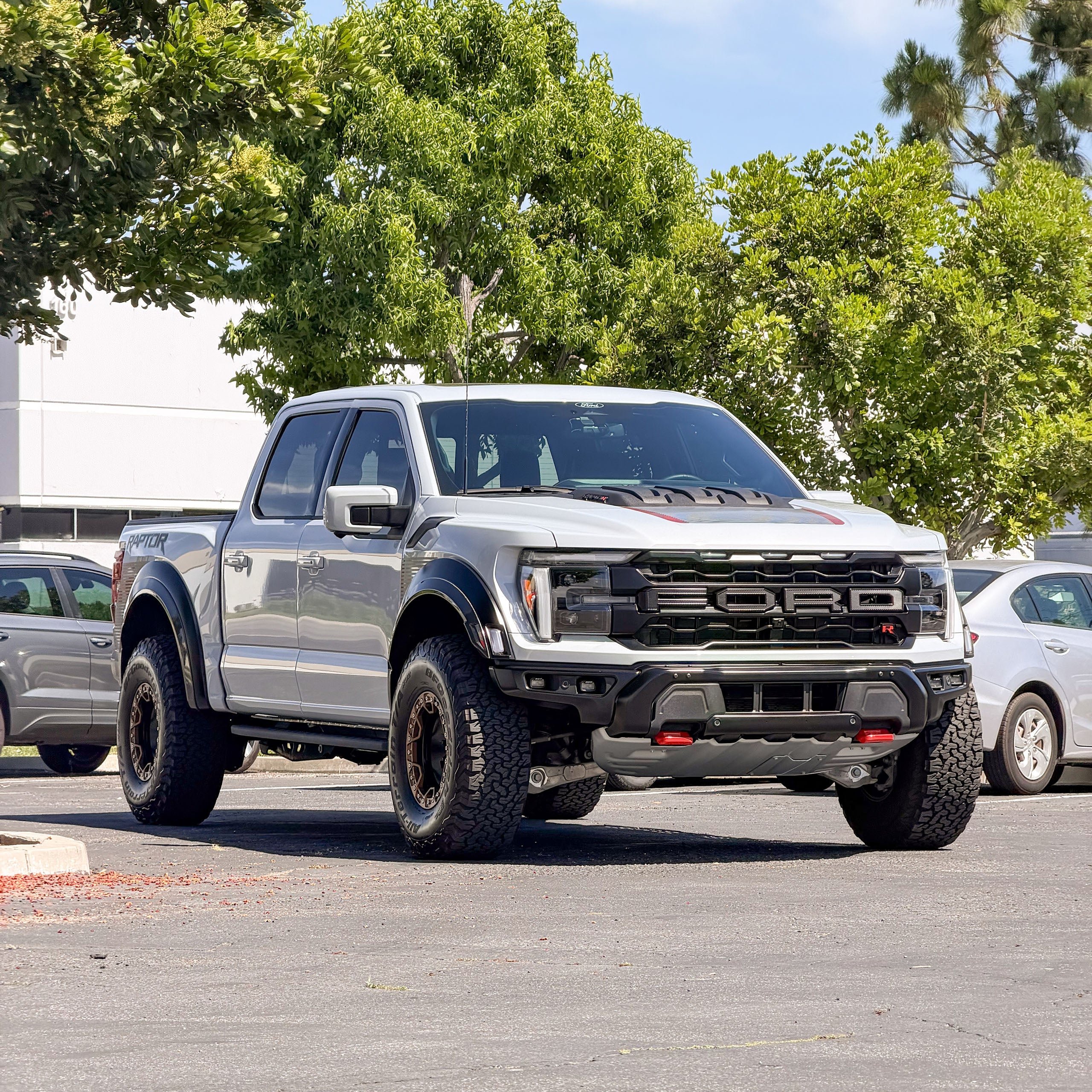

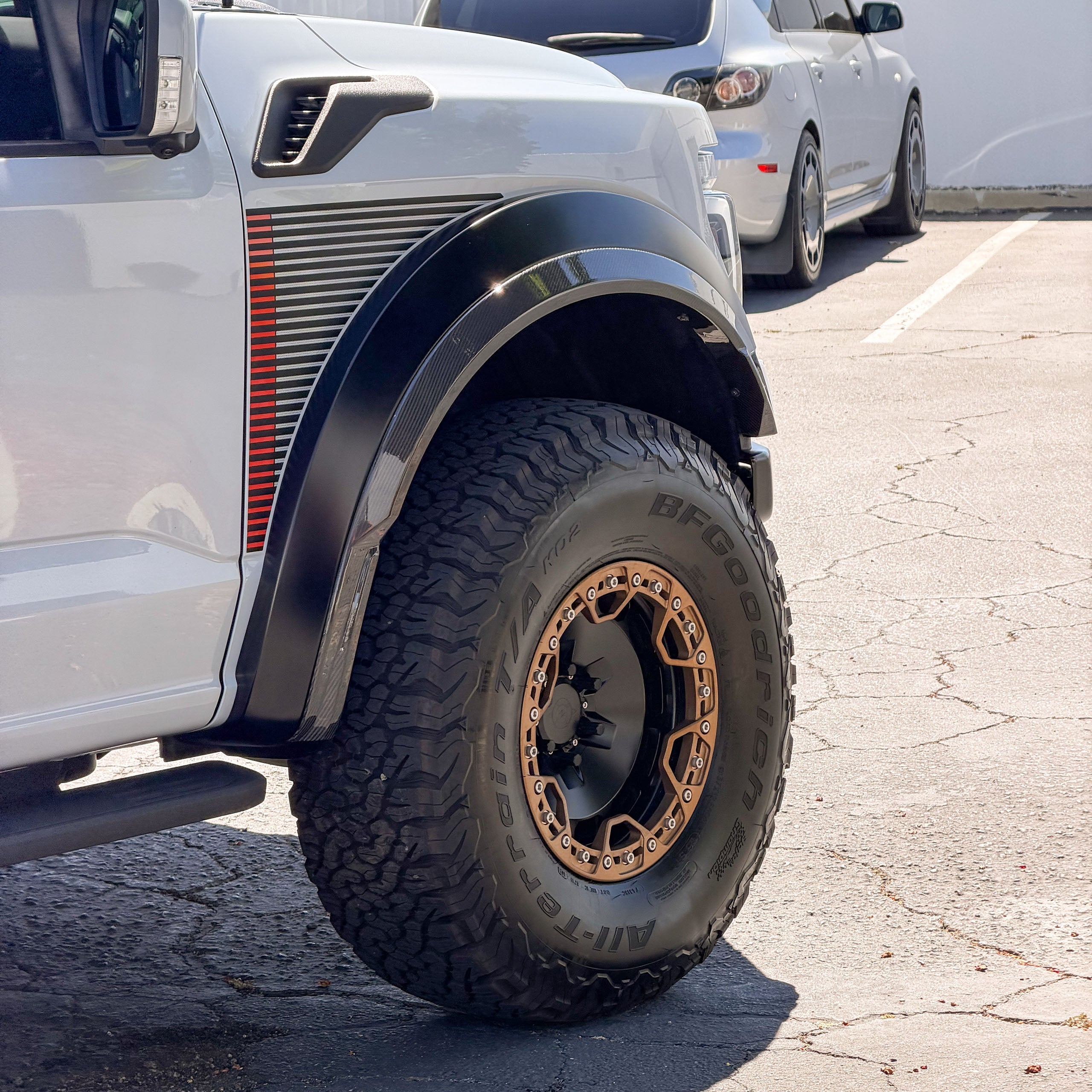

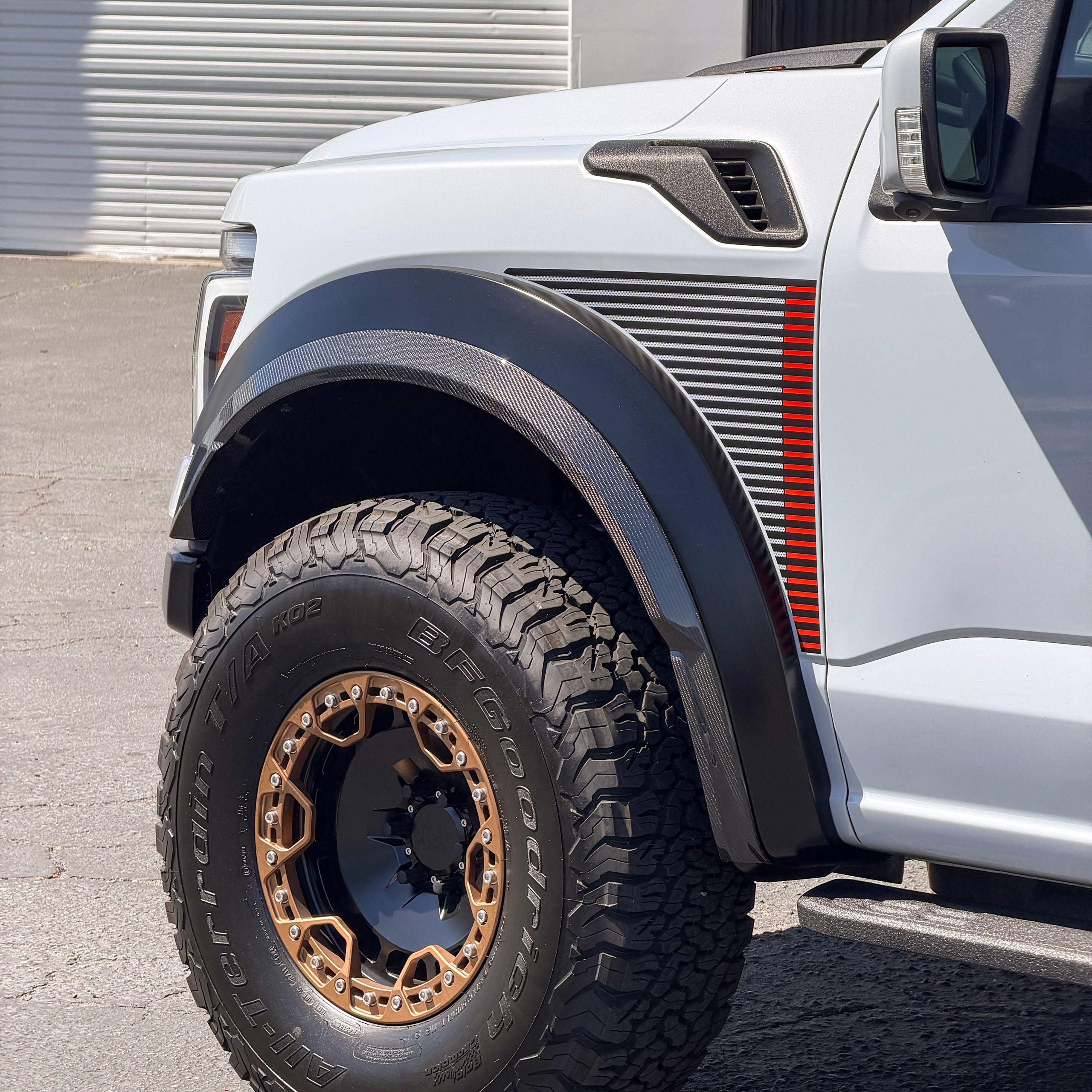

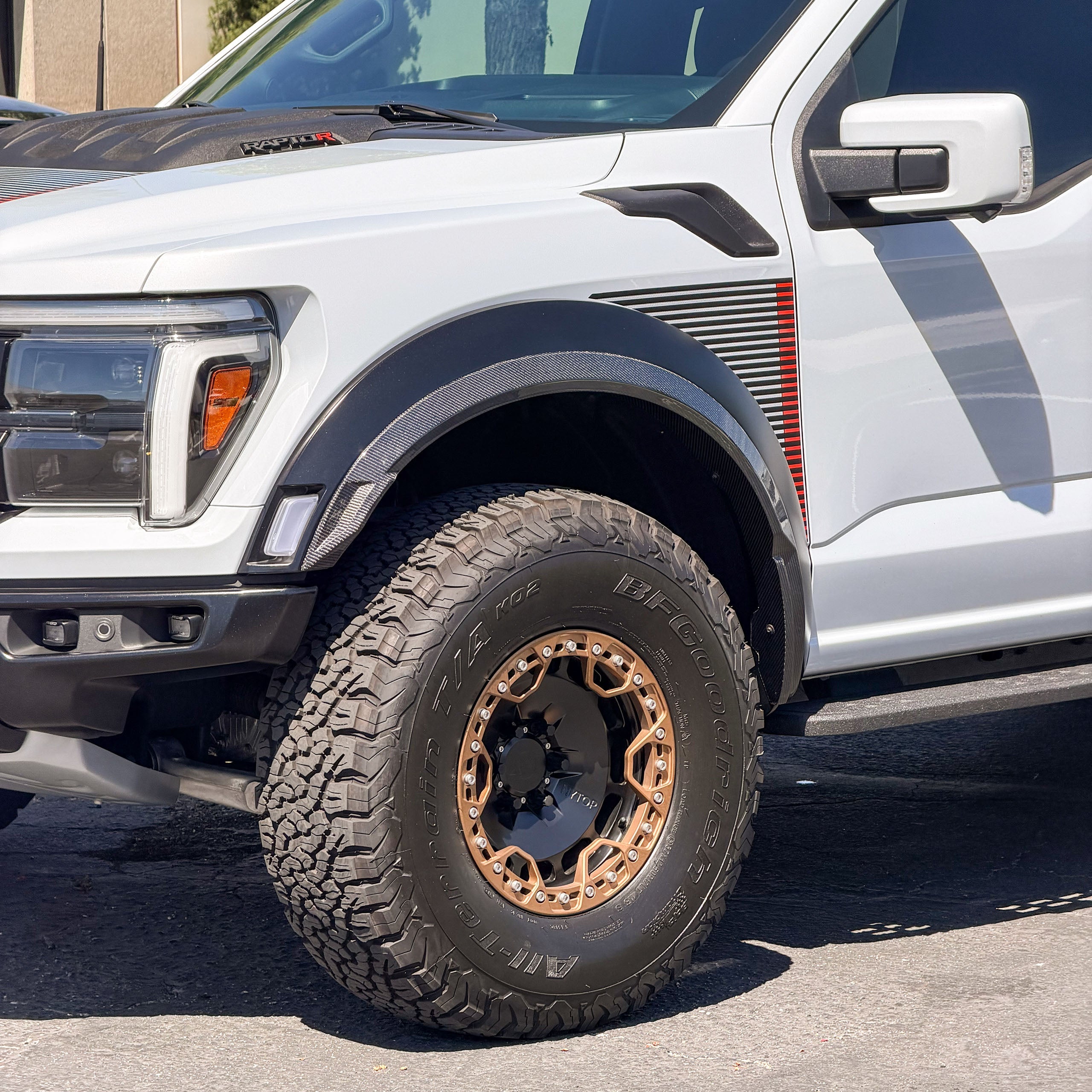

ADV-Classic Beadlock 17 inch 6x135 (Ford F150)

Sold individually. Priced per wheel. Beadlock rings sold separately.

Our Adventure Series Beadlock Wheels are CNC machined forged 6061-T6 aerospace-grade aluminum with screw-on type CNC machined billet aluminum center caps. These wheels allow you to mount tires with or without a beadlock ring.

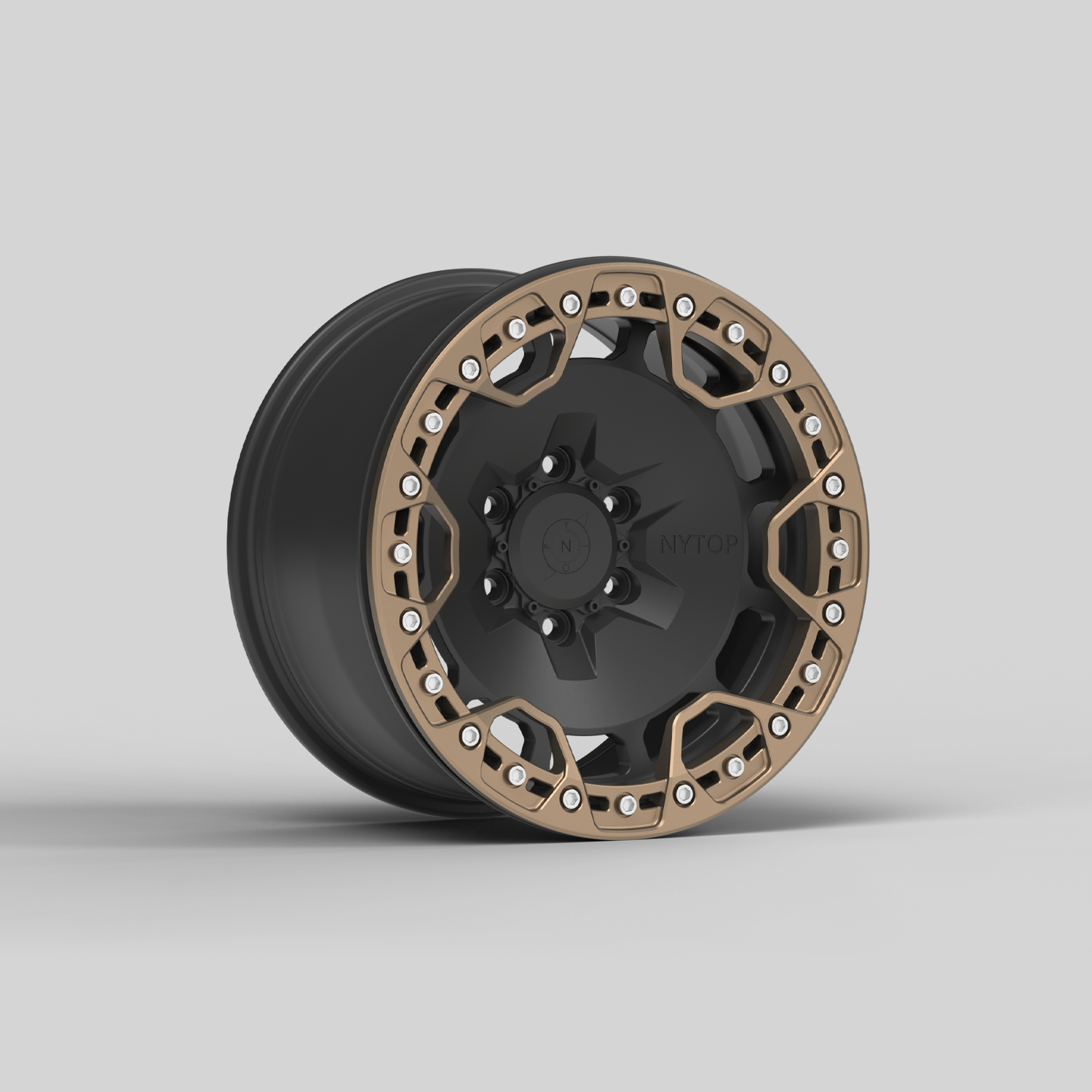

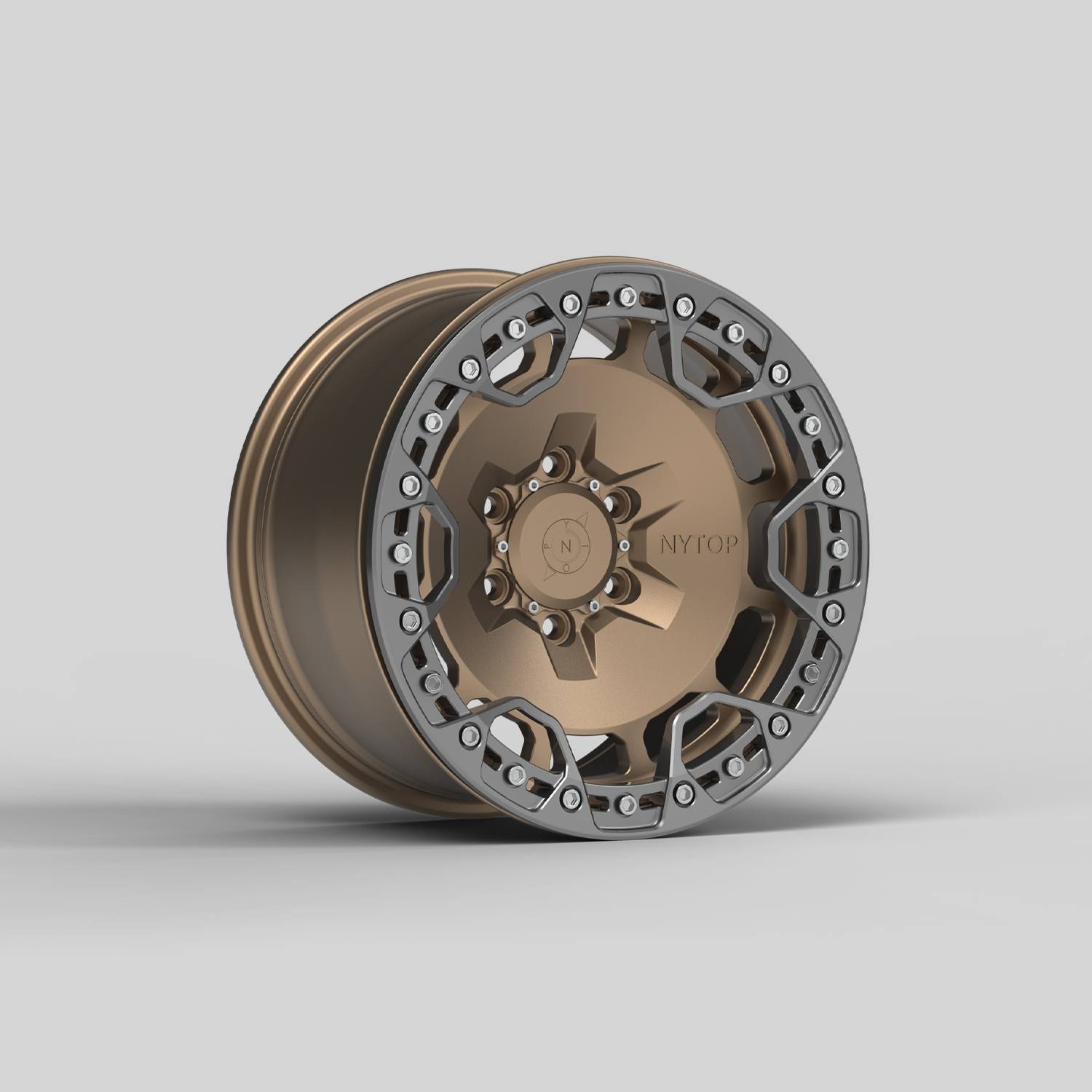

Our proprietary beadlock ring design is engineered for a smoother, more efficient mounting process. Unlike traditional setups that require pry bars to seat the tire bead into the wheel face, our rings feature a self-guiding profile that gradually draws the bead into place as you tighten the bolts.

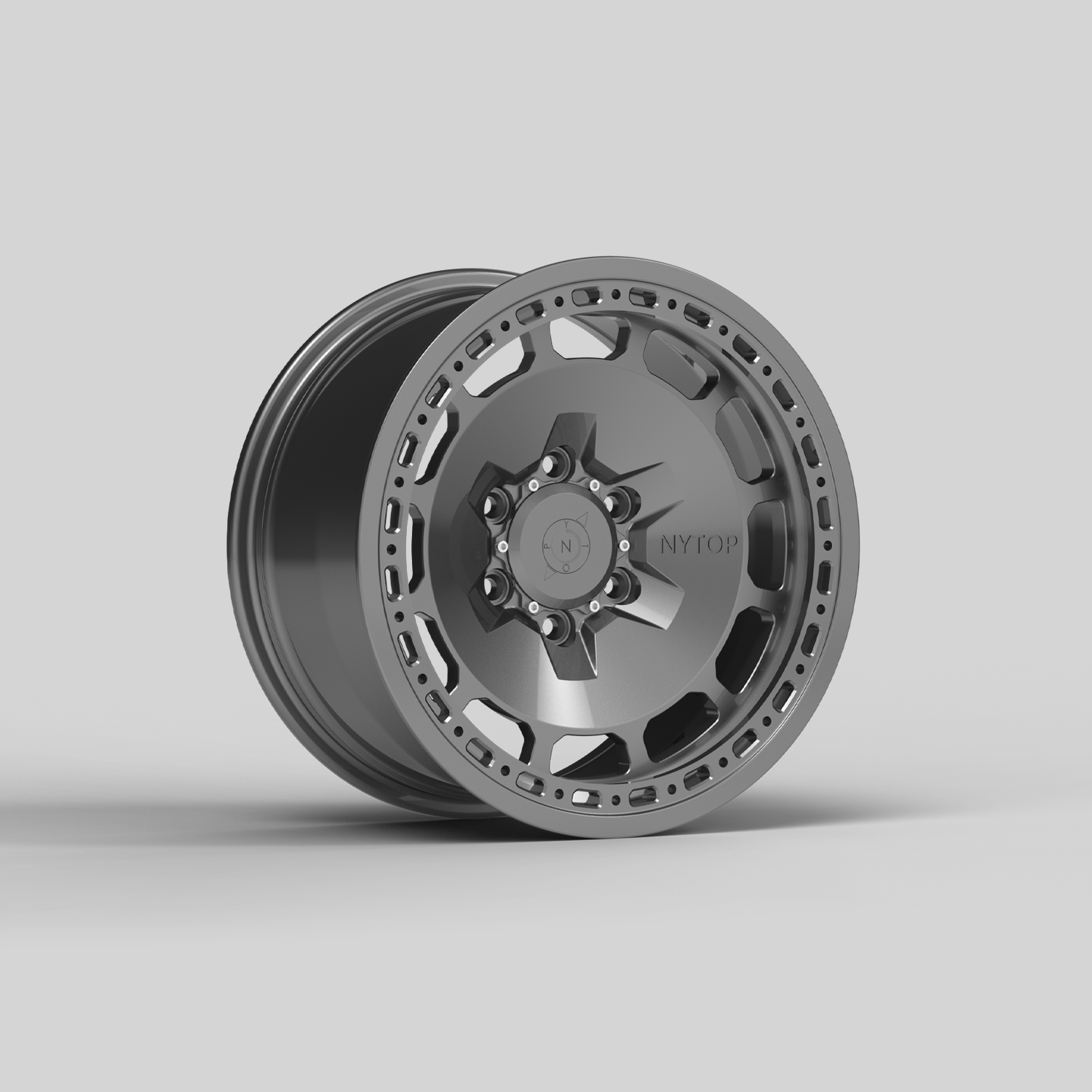

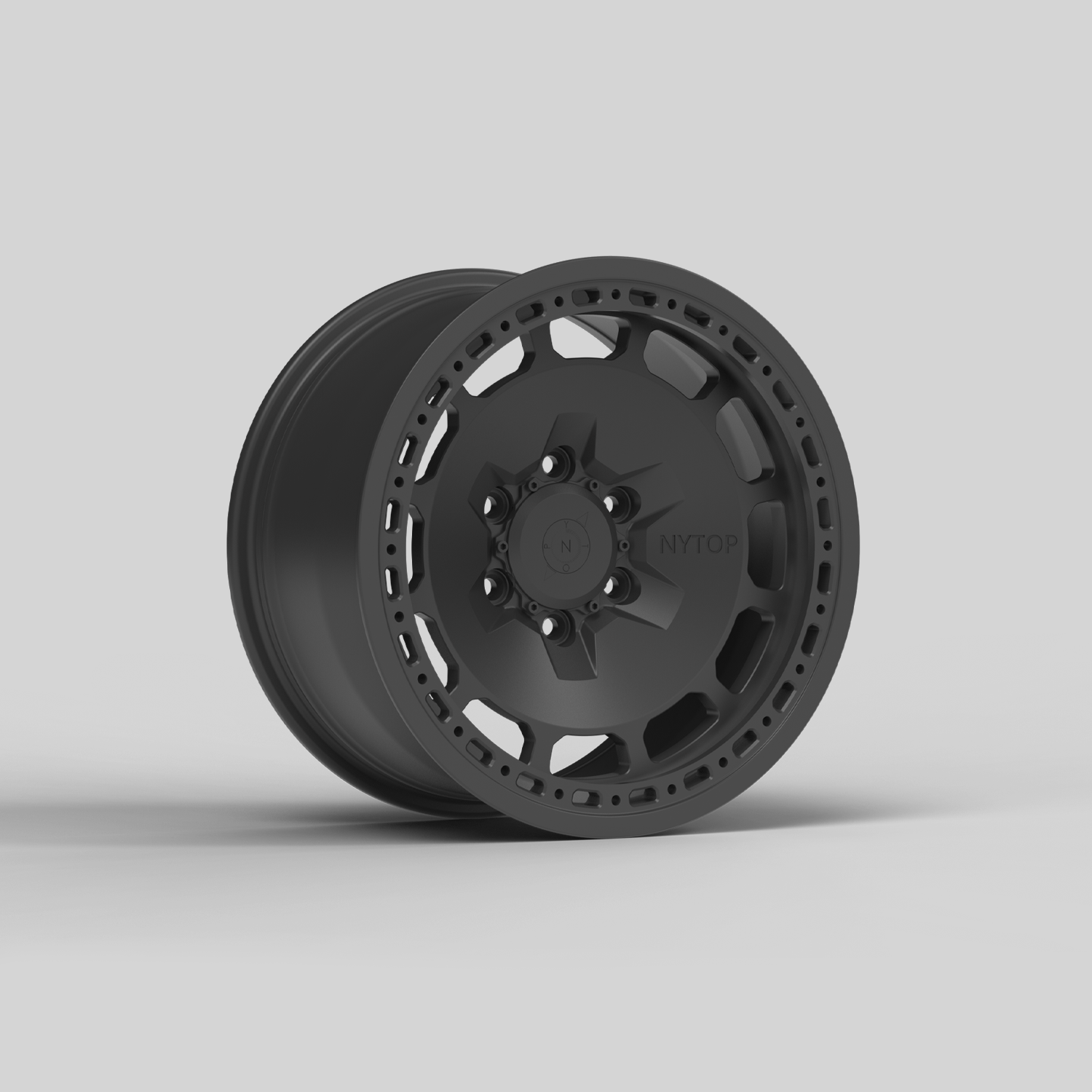

Available in a 17x8.5 in size with 0 mm offset. The lug pattern is 6x135. The hub bore size is 87.1 mm.

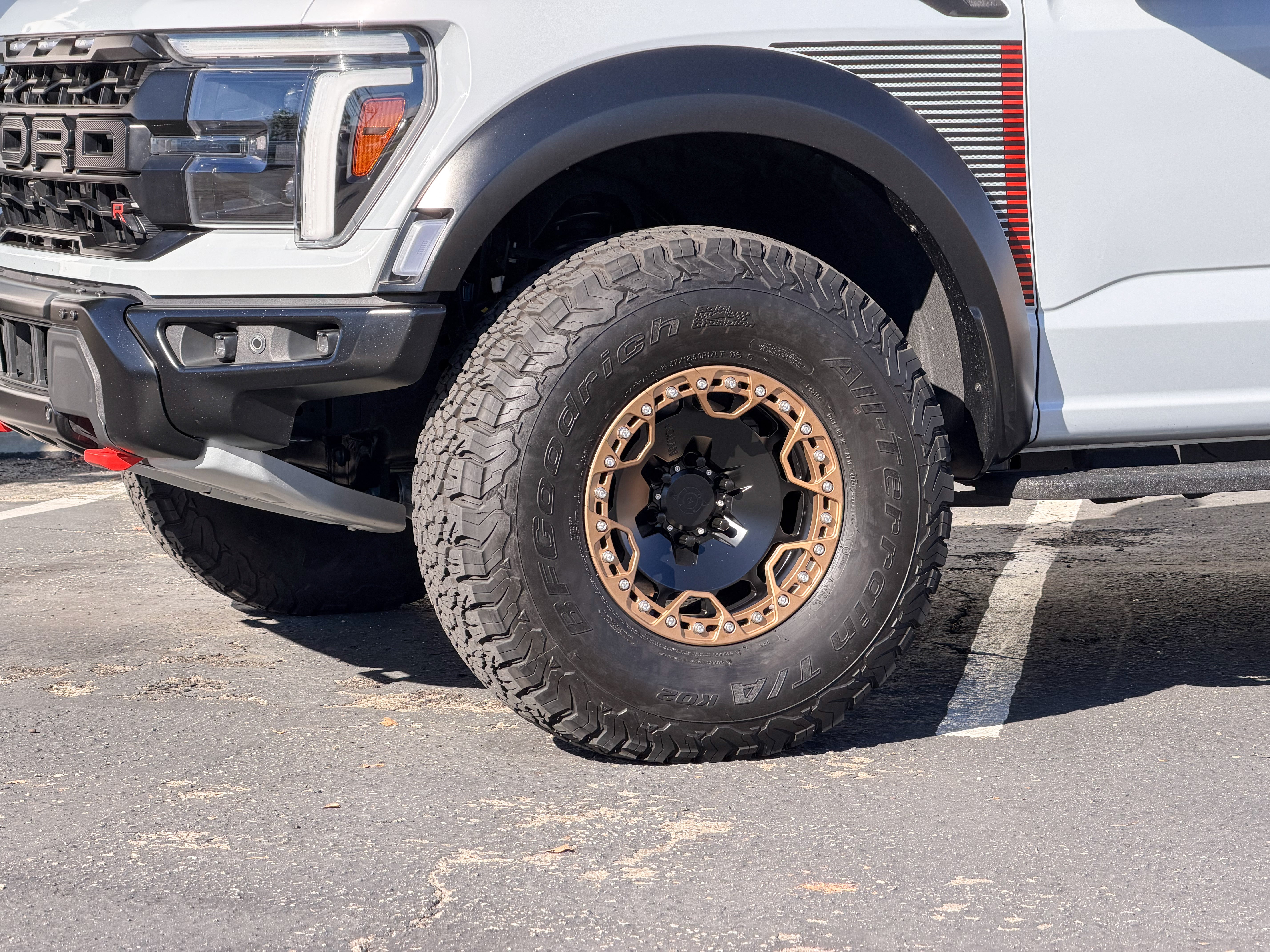

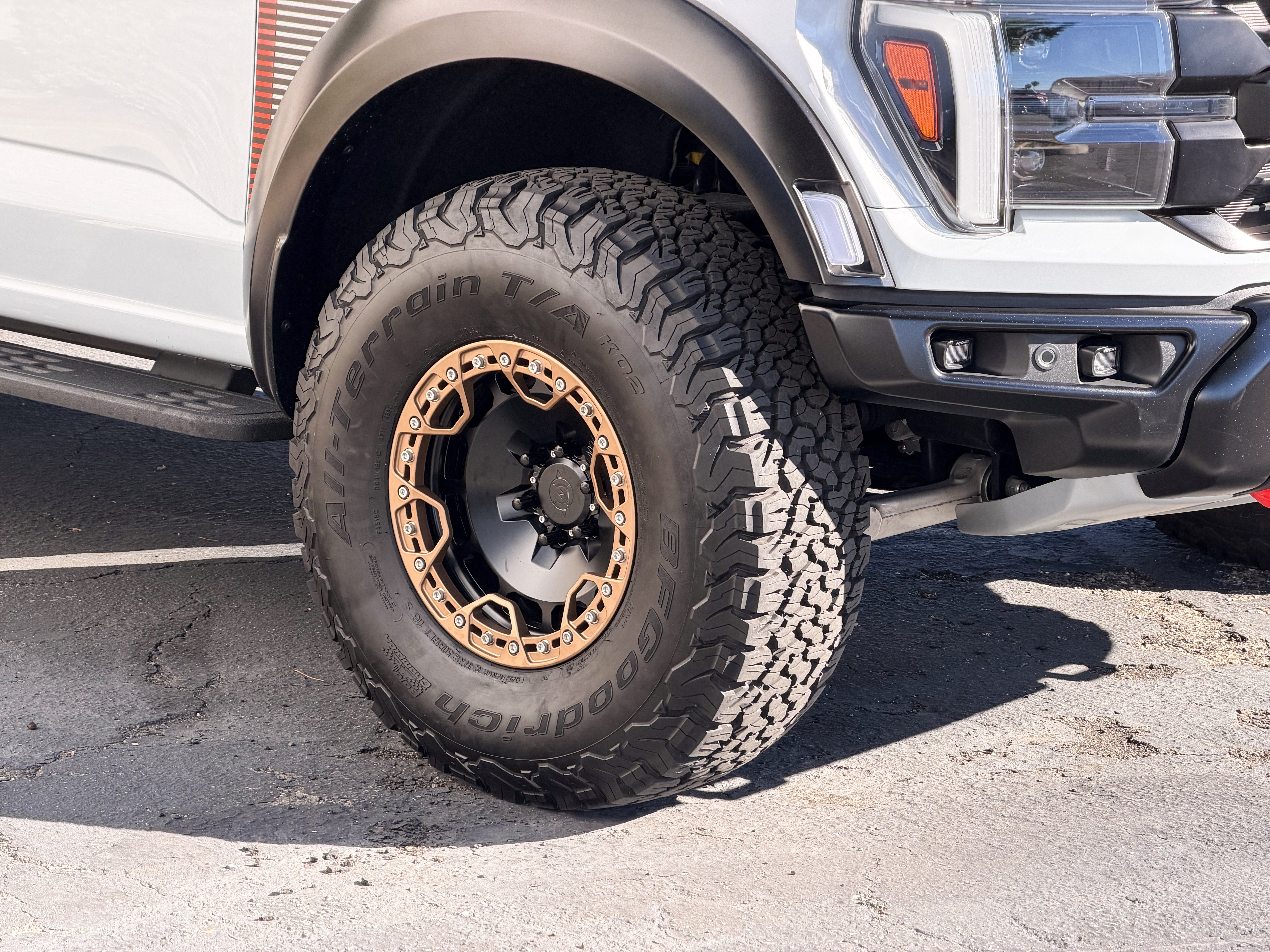

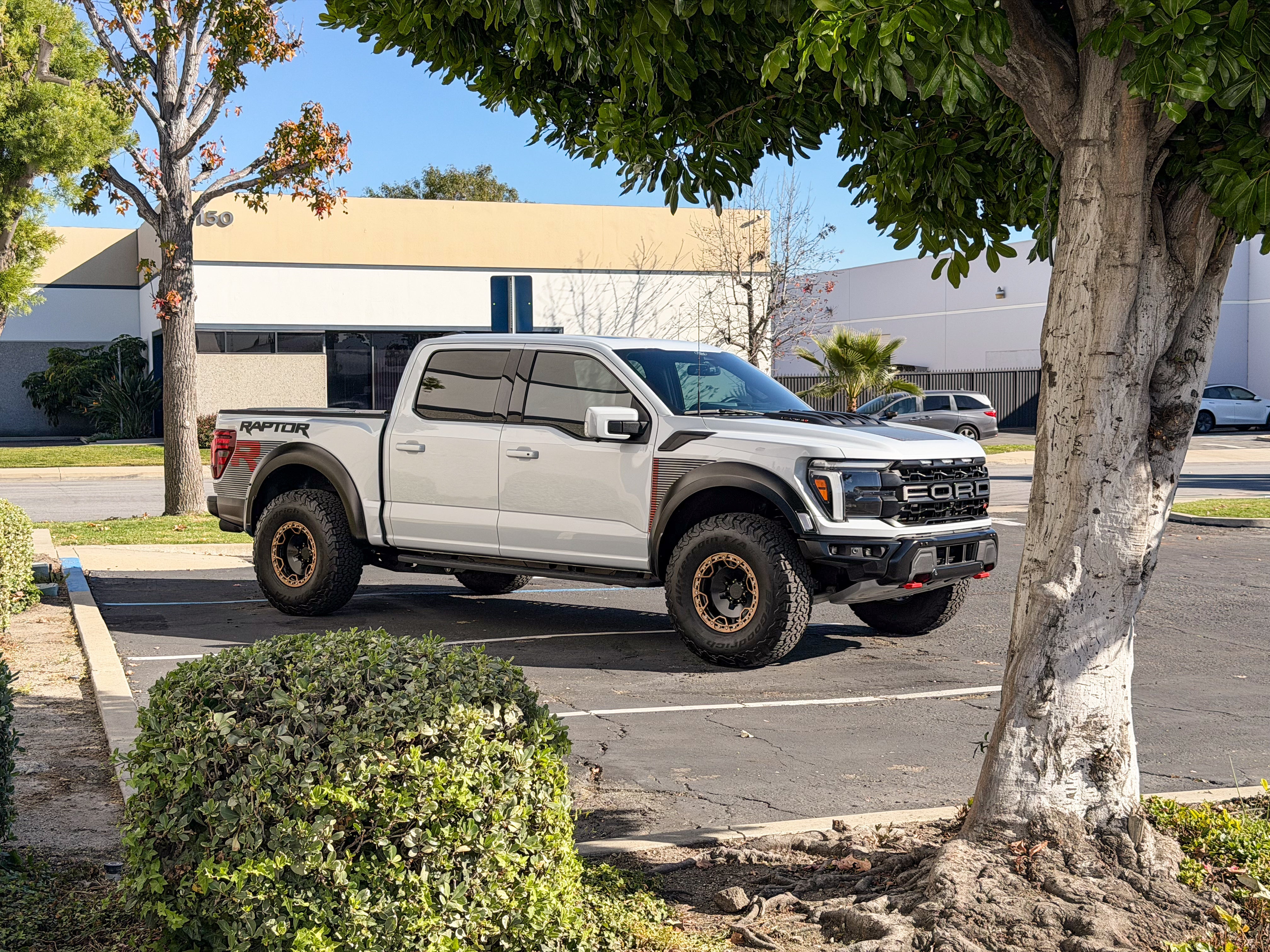

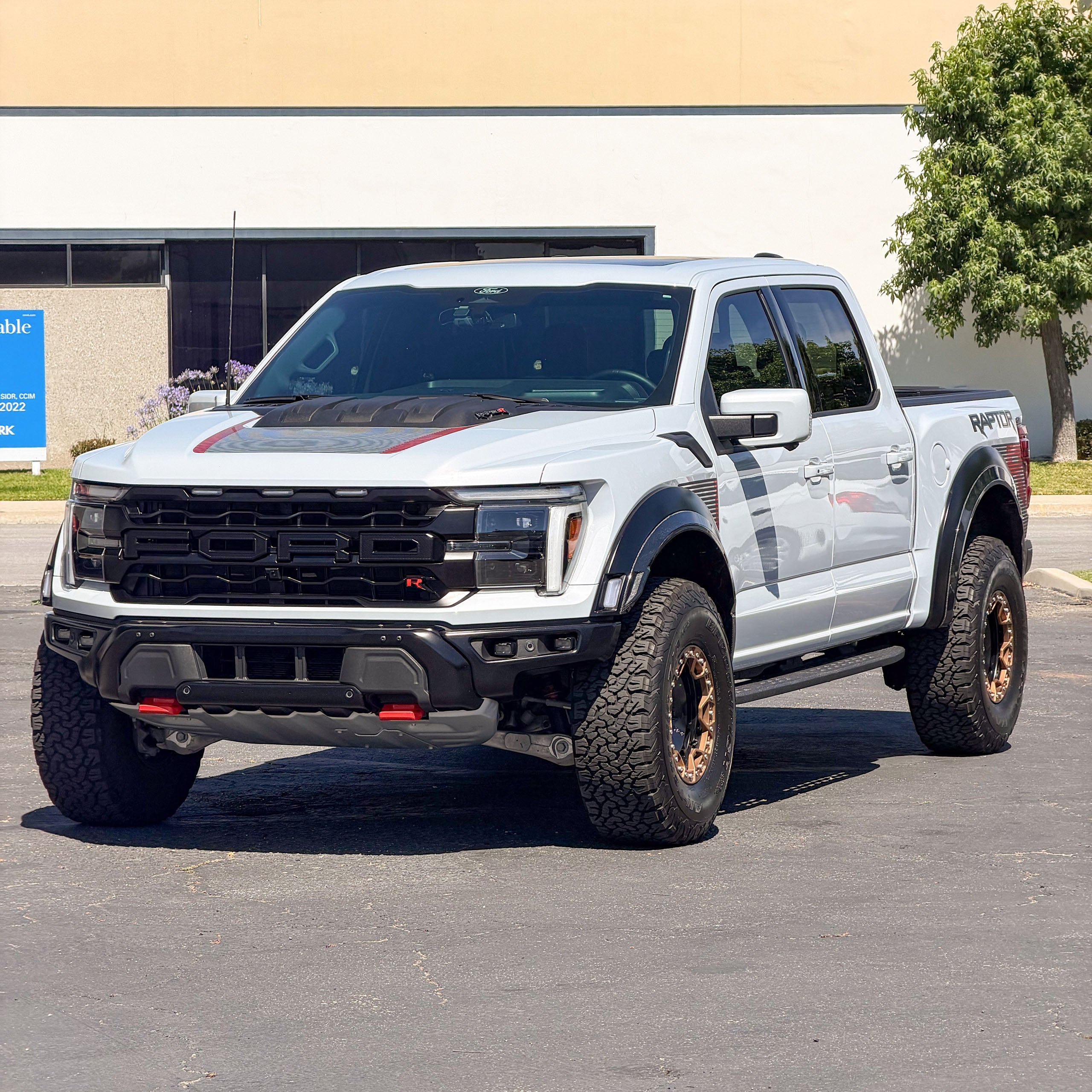

This spec fits the following vehicles:

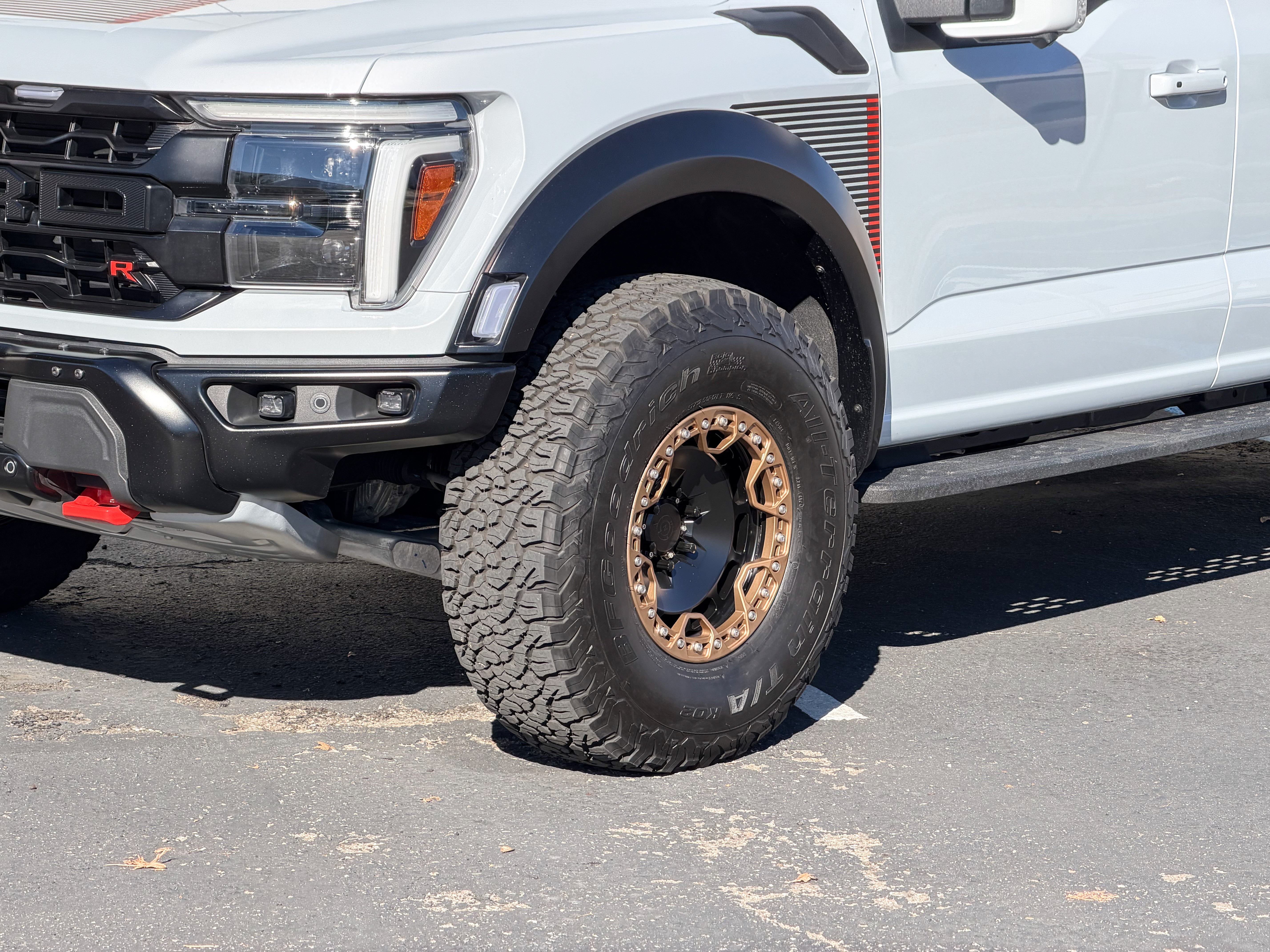

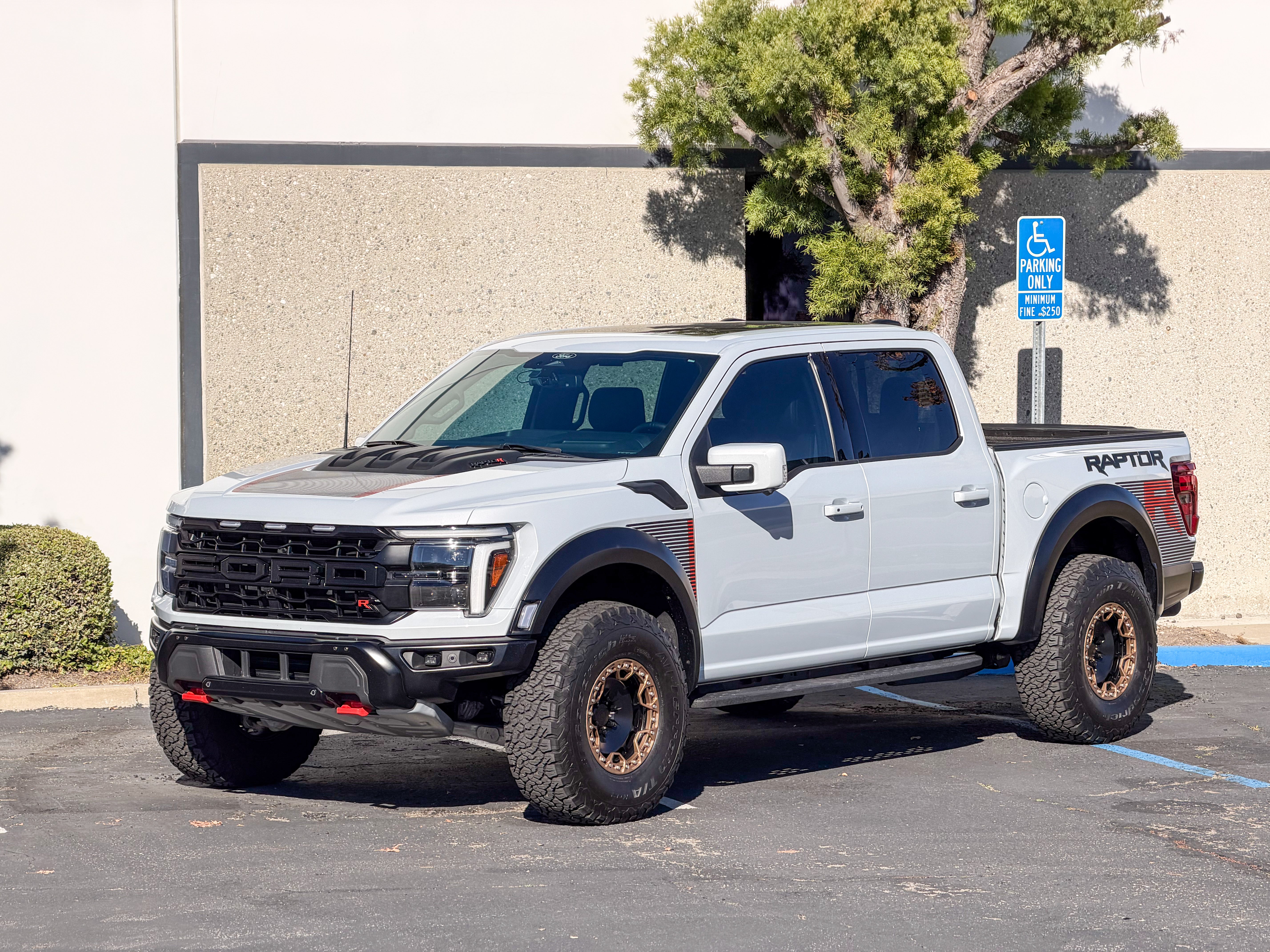

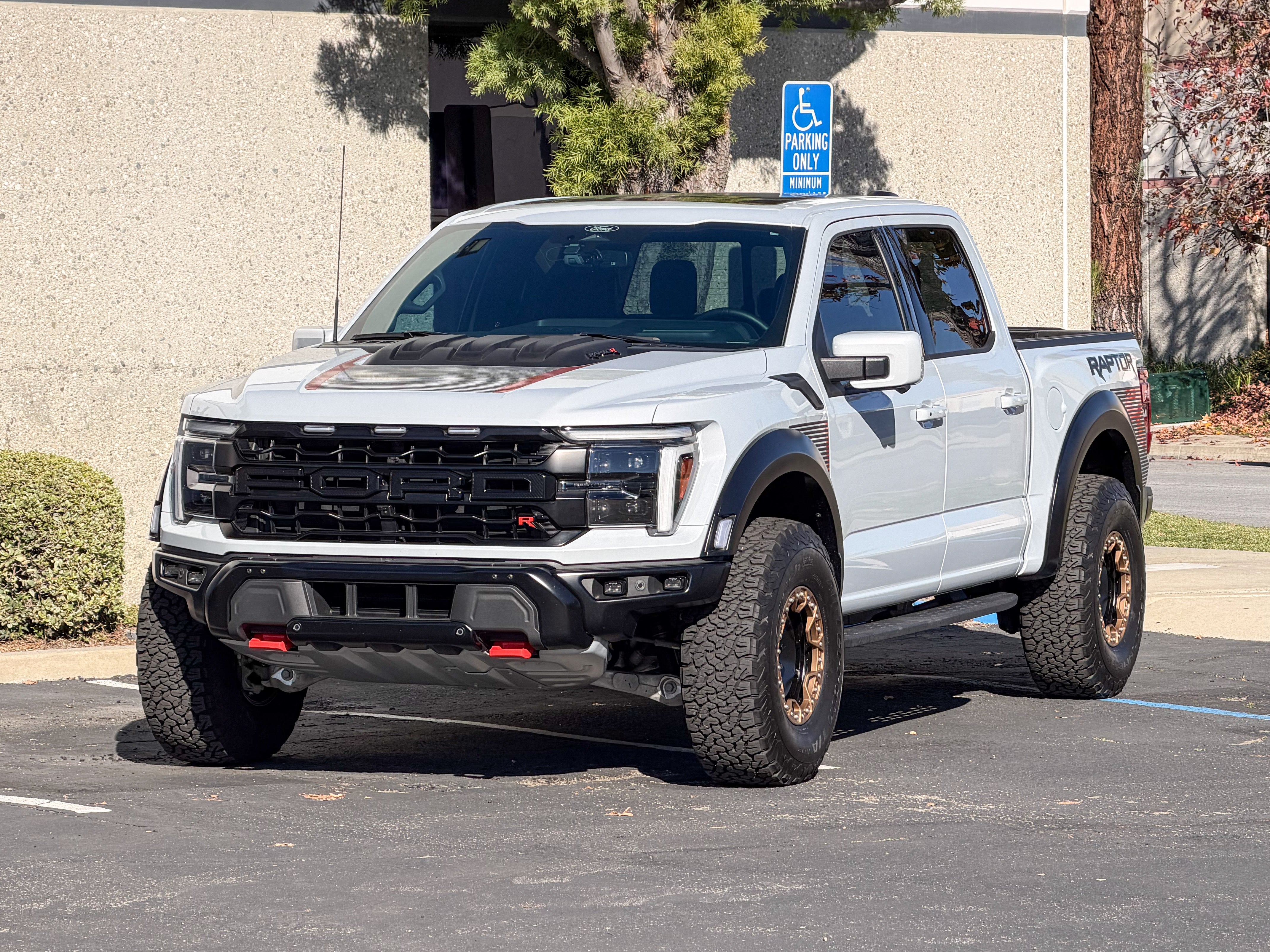

• 2004-current Ford F150/Raptor

• 2004-current Ford Expedition

• 2004-current Lincoln Navigator

• 2022-current Ford Bronco Raptor

Our ADV Series Off-road Beadlock Wheels are both lug centric and hub centric. Do NOT use extended lugs.

Max load rating 2,850 lbs. per wheel.

Wheel weight is around 23.5 lbs. per wheel.
