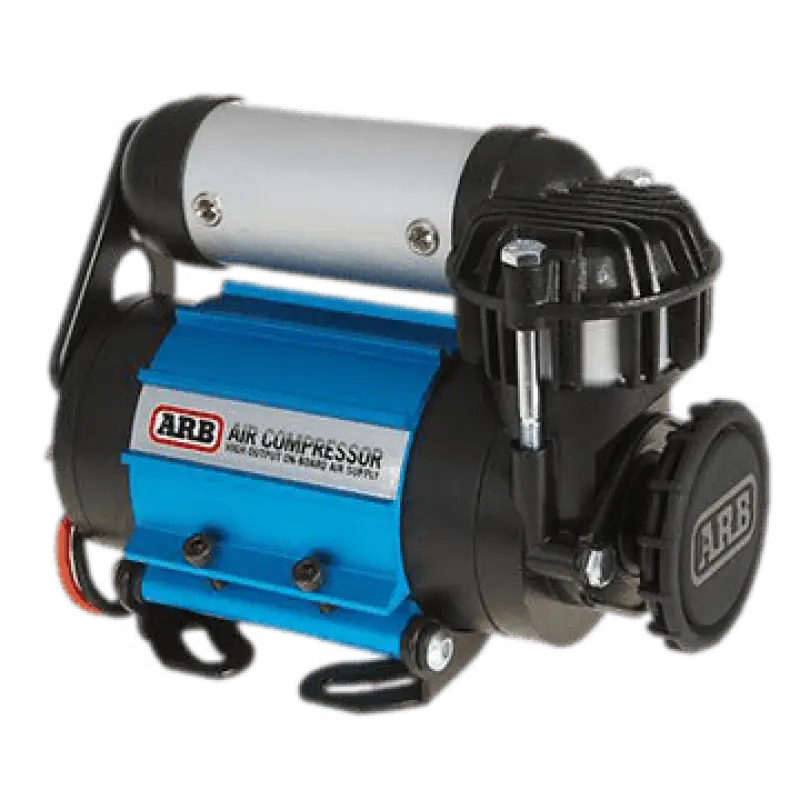

ARB - Single High Performance On-Board Compressor for ARB Air Lockers

The ARB Air Compressor is an integral component of the air locker system. The ARB Compressor Kit is designed to operate singly as well as a dual (front and rear) locker system. Not only will it enable the ARB lockers to work but it is also capable of supplying air pressure for other occasions, such as refilling a low tire. This air compressor features a die-cast aluminum storage tank, oil-less operation, and the highest air delivery capacity of all the mid-price range compressors (100 psi) setting on the cut-off switch. The ARB Air Compressor Kit contains a pre-assembled compressor, mounting clamp, backing plate, pressure switch, wire loom, and all the mounting hardware. The current draw of 9 amps during no-load, 20 amps for a full load.

There's nothing quite as satisfying as having a vehicle that performs above the rest when it comes to off-road riding, but that means you have to invest some time and money. ARB Air Lockers are a great way to give your vehicle more traction when it comes to off-road riding, but you need to make sure you have an ARB air compressor to accompany it. These air compressors are designed with a full seal to resist moisture and dust so they can keep your ARB Air Lockers up and running for a long time to come.

• The compact design makes it the highest flowing compressor in its class (voltage vs size).
• Fully sealed components for moisture and dust.
• Pressure switch controlled air manifold systems specially designed to suit ARB Air Locker equipped vehicles.
• Hard anodized cylinder bore and PTFE (Teflon) impregnated carbon fiber piston seal for reduced friction and maximum trouble-free life.
• The new anodized mounting bracket dissipates motor heat and allows the compressor to be repositioned 180°.
• Anti-vibration sound deadening mount.
• Relocatable splash resistant air filter assembly for a cleaner, cooler air supply, and versatile waterproof air intake positioning.
• High density, high flow washable sintered bronze air filter element.
• Maxi-Fuse equipped for professional in-line circuit protection.
• The motor is 100% ball bearing equipped with a unique linear brush pre-load system for extra long life, low heat, and quiet operation.
• The compressor piston is equipped with a German-made high shock rated cylindrical roller bearing.
• Constructed entirely of lightweight, high strength engineering grade materials, including military and aerospace-grade components.
• Over-pressure safety valve equipped.
• The motor is internally thermal protected against extreme temperature damage.
