Bilstein B8 8112 ZoneControl CR 0.4-2" Suspension Kit| 2023-2016 Toyota Tacoma

Sale price$2,379.80 USD

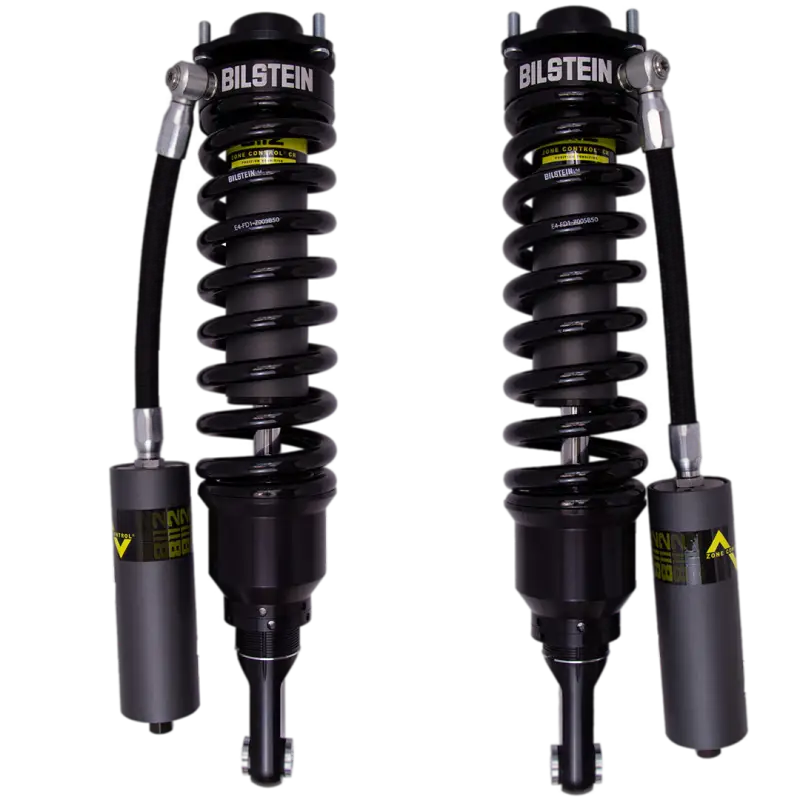

The Toyota Tacoma Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • Rig Position: Front
  • Collapsed Length (IN)17.43
  • Extended Length (IN)22.39
  • Collapsed Length (MM)442.6
  • Extended Length (MM)568.8
  • FinishDampers: EVO Grey/Springs: Black
  • ReservoirYes
  • Body DesignSmooth Body (Coilover)
  • Body Diameter60mm
  • Spring Seat IncludedYes
  • Adjustable DampingNon-Adjustable
  • Optional Heavy Load Springs: 53-291394, 53-291387
  • Fits: 2016+ Toyota Tacoma

Features & benefits:

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons

• Compression (C): Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop

• Rebound (R): Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap

• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

• Adjustable threaded spring seat allows for fine-tuned ride height. Adjustable range .6-2.5in • 60mm remote reservoir for increased oil capacity and cooling

• Vehicle specific design and tuning provides the ultimate driving experience. Aerospace quality components are vehicle specific to optimize wheel travel and clearance

• High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution • Aluminum components with zinc plated shock bodies will resist harsh off-road elements

• Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height

• Factory rebuildable

• Made in the USA
