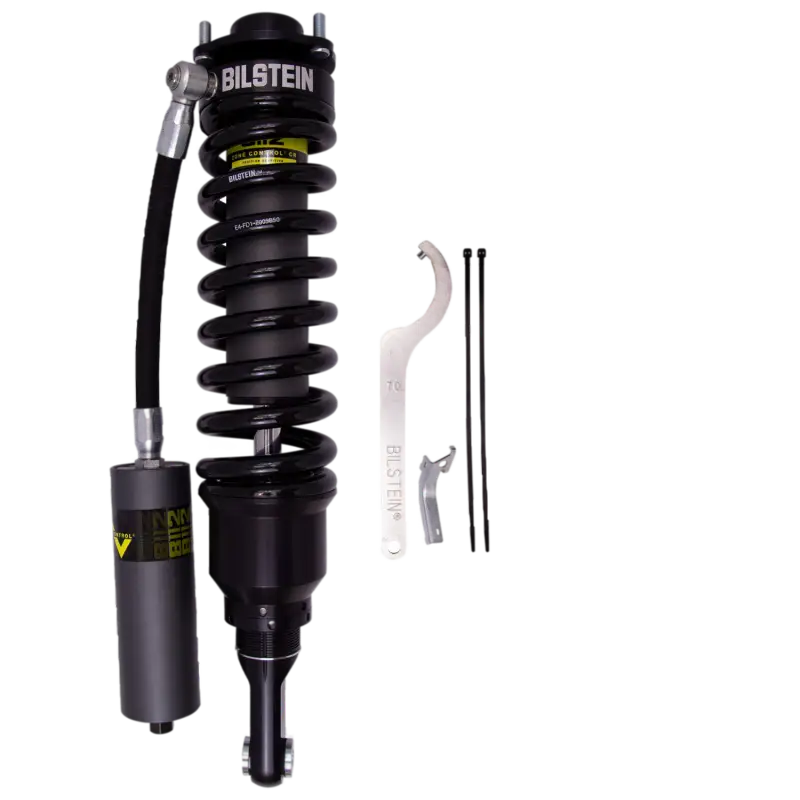

Bilstein B8 8112 ZoneControl CR - Front Left | 2023-2016 Toyota Tacoma(41-322673)
The Toyota Tacoma Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
- Rig Position: Front
- Collapsed Length (IN)17.43
- Extended Length (IN)22.39
- Collapsed Length (MM)442.6
- Extended Length (MM)568.8
- FinishDampers: EVO Grey/Springs: Black
- ReservoirYes
- Body DesignSmooth Body (Coilover)
- Body Diameter60mm
- Spring Seat IncludedYes
- Adjustable DampingNon-Adjustable
- Optional Heavy Load Springs: 53-291394, 53-291387
- Fits: 2016+ Toyota Tacoma
Features & benefits:
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Compression (C): Provides superior bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop
• Rebound (R): Secondary rebound stop will dissipate spring energy and stabilize the suspension directly following a large compression event. The internal rebound stop will also eliminate harsh top-out events and the need for an external limit strap
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
• Adjustable threaded spring seat allows for fine-tuned ride height. Adjustable range .6-2.5in • 60mm remote reservoir for increased oil capacity and cooling
• Vehicle specific design and tuning provides the ultimate driving experience. Aerospace quality components are vehicle specific to optimize wheel travel and clearance
• High quality chrome 5/8” heim joint mounting with rubber sealed misalignment spacers offer the most durable, load bearing mount solution • Aluminum components with zinc plated shock bodies will resist harsh off-road elements
• Coilover supplied as a complete module for easy installation. Spring is pre-loaded to the factory recommended ride height
• Factory rebuildable
• Made in the USA
