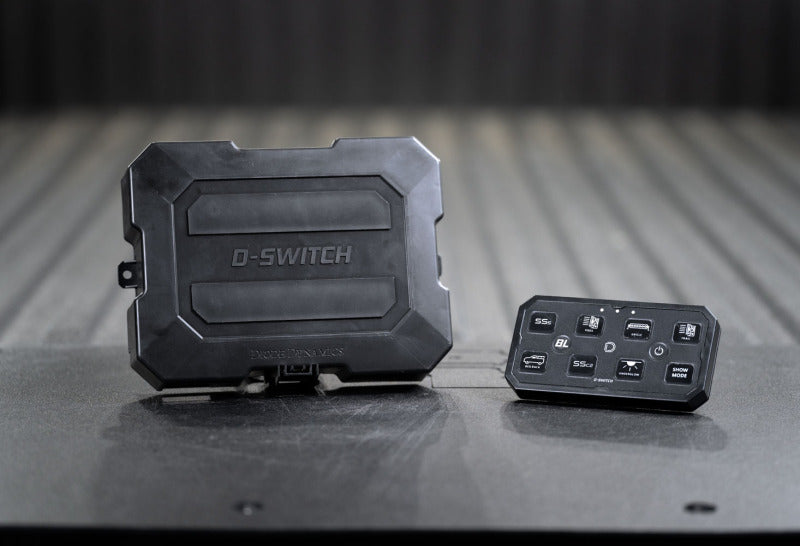

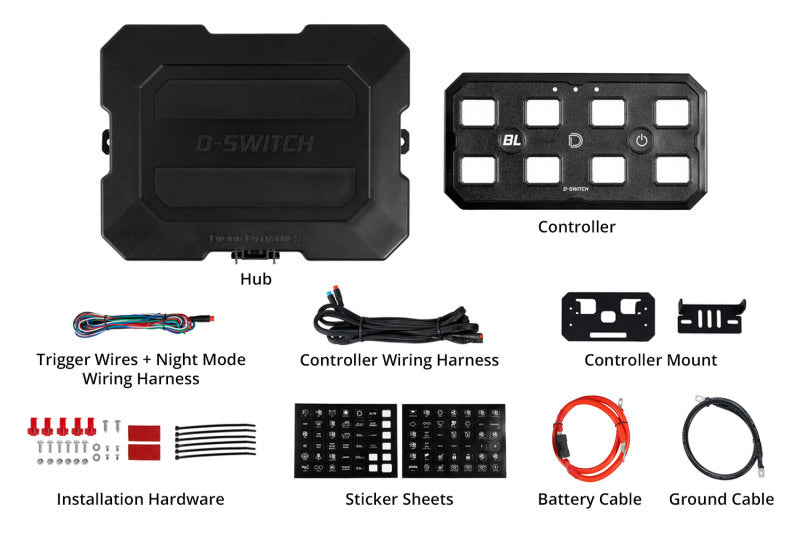

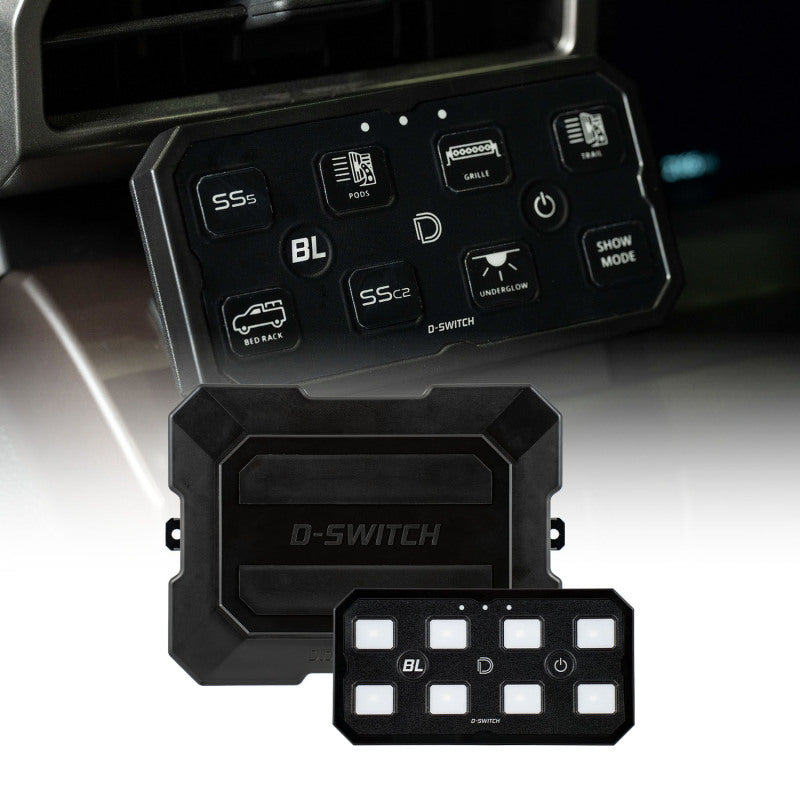

Diode Dynamics D-Switch 8 Button Controller Kit
Overview: Upgrade your vehicle’s setup with the Diode Dynamics D-Switch, an advanced 8-channel switch panel that gives you full control over any 12V accessory. With four 30A and four 15A outputs, it delivers serious power and extensive customization for lighting and other accessories.

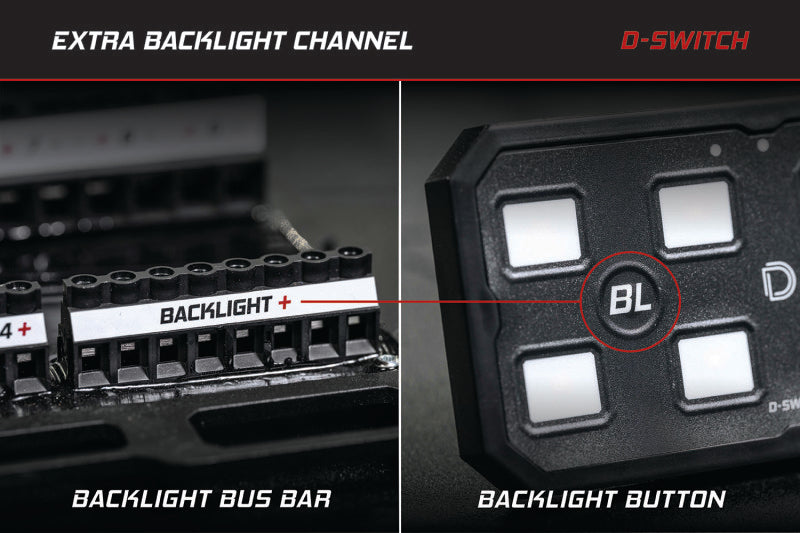

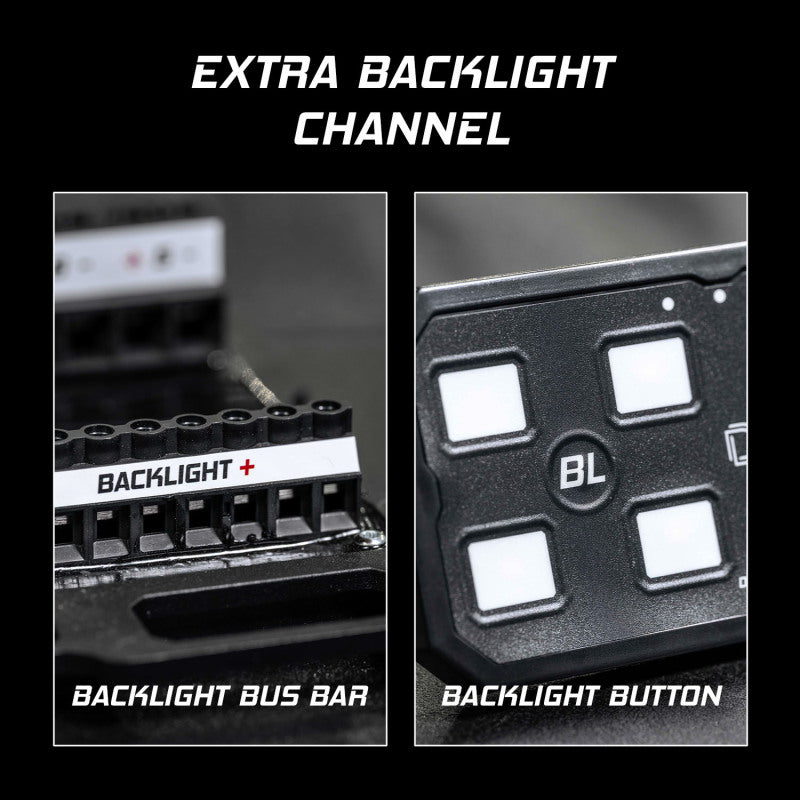

Dedicated backlight channel: The D-Switch includes a unique ninth button dedicated to a backlight bus bar, adding eight additional outputs specifically for accent lighting. This lets you turn on all backlit accessories with a single press, freeing the main eight outputs for primary functions.

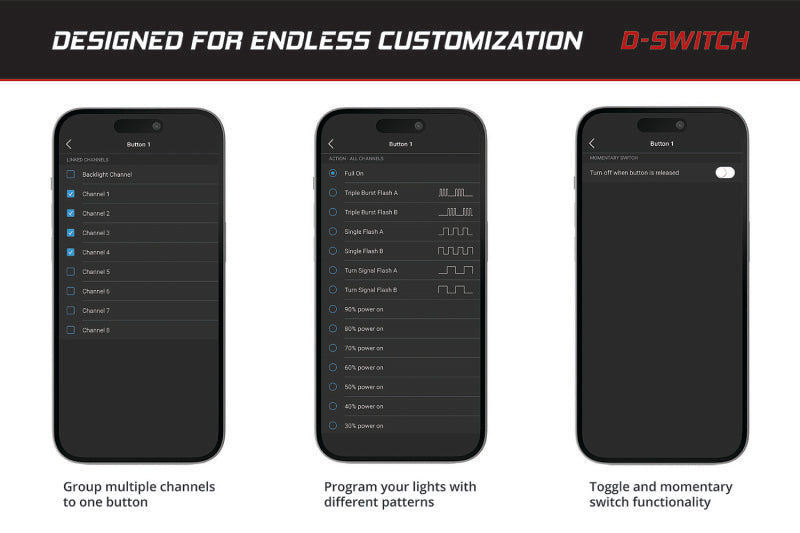

Dynamic channel assignment: Unlike fixed one-to-one switch panels, the D-Switch allows you to assign multiple output channels to a single button for flexible control. You can also map different behaviors of the same output to separate buttons, such as one button for a flashing pattern and another for full-power operation of the same light.

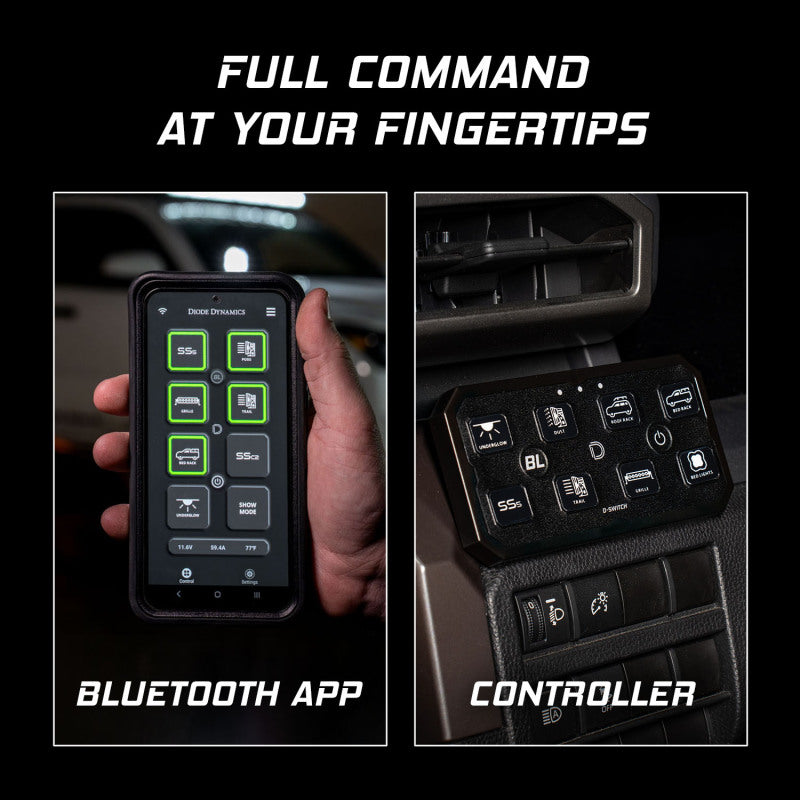

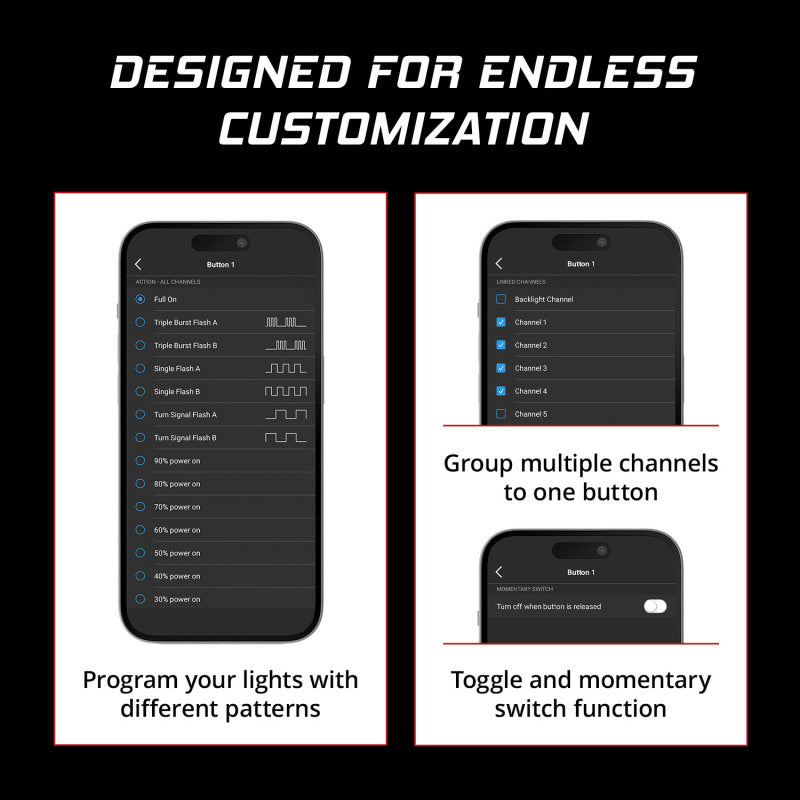

Fast, responsive Bluetooth app: Configuration and control are handled through a Bluetooth app for iOS and Android, designed for instant response and lag-free operation. The app makes it easy to program outputs, assign buttons, and fine-tune behavior without manual rewiring.
OEM signal integration: Three trigger inputs allow the D-Switch to respond automatically to vehicle signals like high beams, fog lights, or reverse lights. An ignition input powers the controller when the vehicle starts and shuts it down when the vehicle is turned off, while a Night Mode input can dim the controller and adjust output settings for low-light driving.

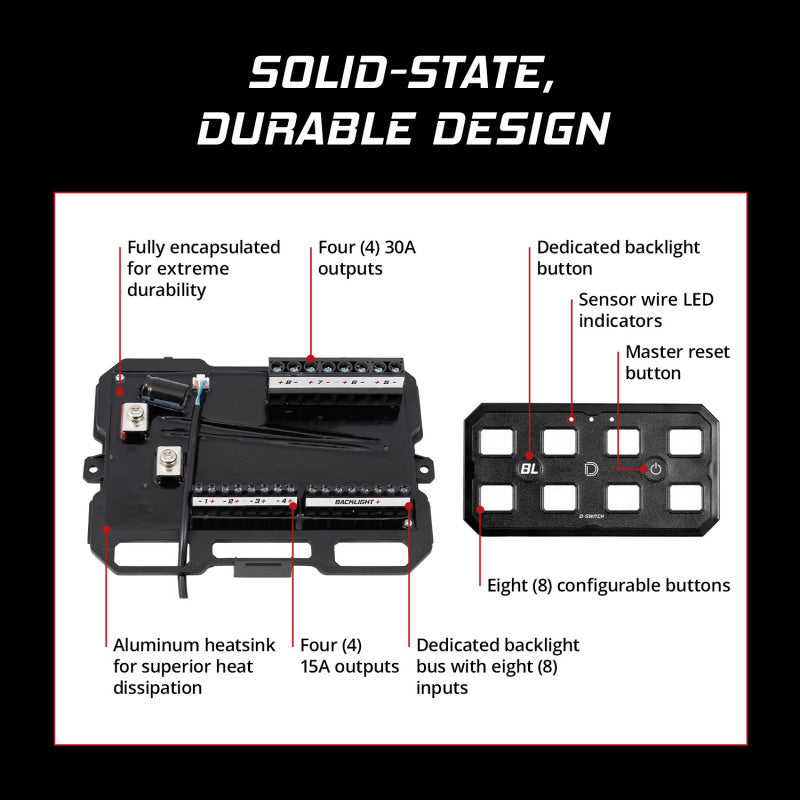

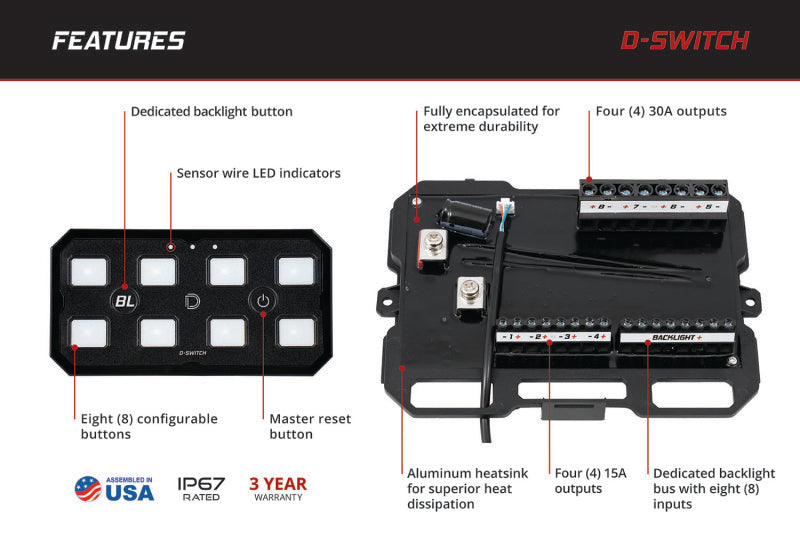

Solid-state, durable design: Built for harsh environments, the D-Switch uses a solid-state design with no mechanical relays or replaceable fuses to wear out. An IP67-rated aluminum heatsink enclosure provides excellent heat dissipation and weather resistance, making it a robust solution for off-road lighting and other demanding 12V applications.
- Three trigger wires for OEM-like control through vehicle signals.
- Fast responsive Bluetooth App - no lagging or loading screens!
- Solid-state fully-encapsulated design for extreme durability.
- Dedicated backlight channel to control your accent lighting.
- Group and control multiple outputs with a single button.
