Diode Dynamics

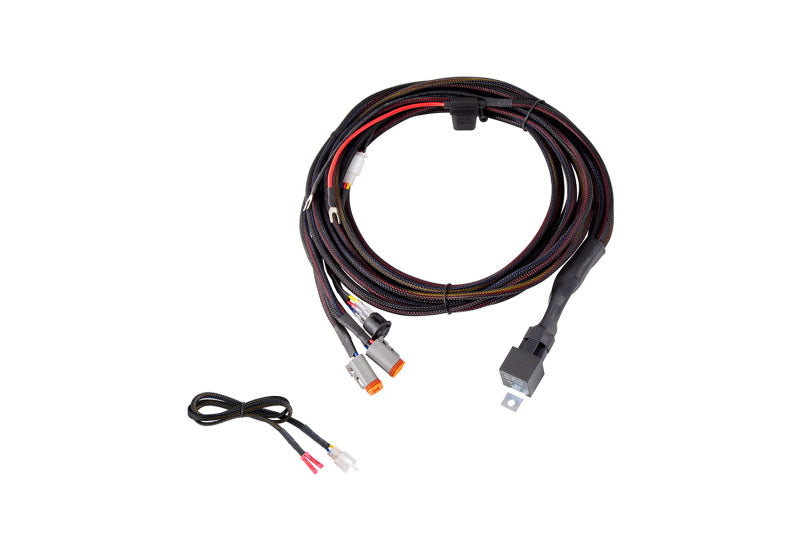

Diode Dynamics Heavy Duty Dual Output 3-way 4-pin Wiring Harness

Sale price$59.95 USD

Features

  • Powers Diode Dynamics Stage Series LED pods that include a backlight function, handling both the accent/backlight and main beam.

  • Connects directly to the vehicle’s battery to provide a dedicated, stable power source for off-road lighting.

  • High-capacity 14 AWG wiring supports substantial current with reduced voltage drop and added durability.

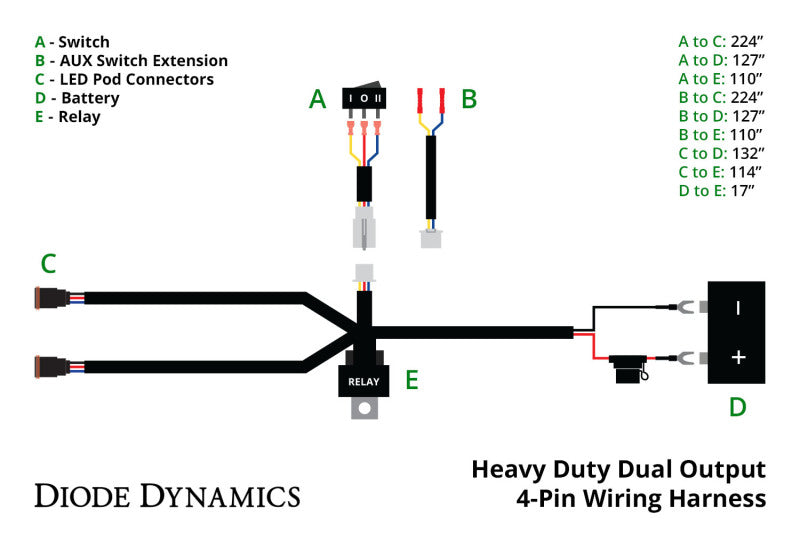

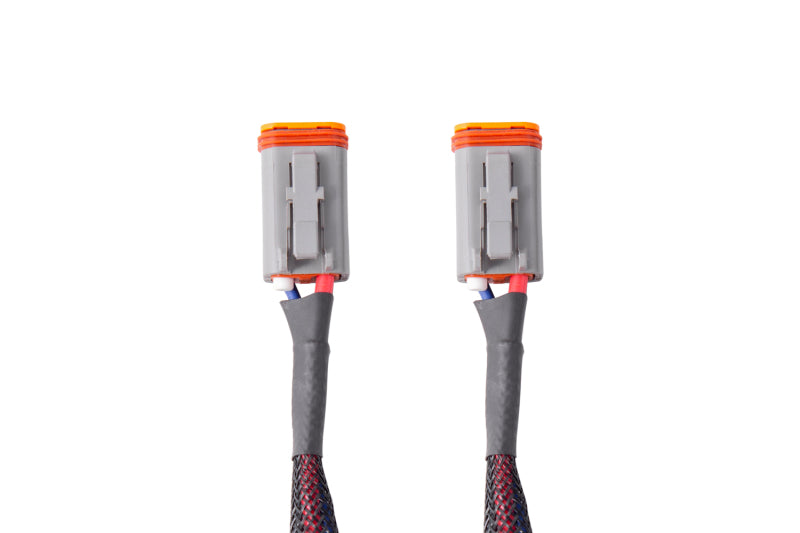

  • Dual Deutsch DT output connectors let you plug in two pods (or two pod pairs via splitters) for simple, plug‑and‑play installation.

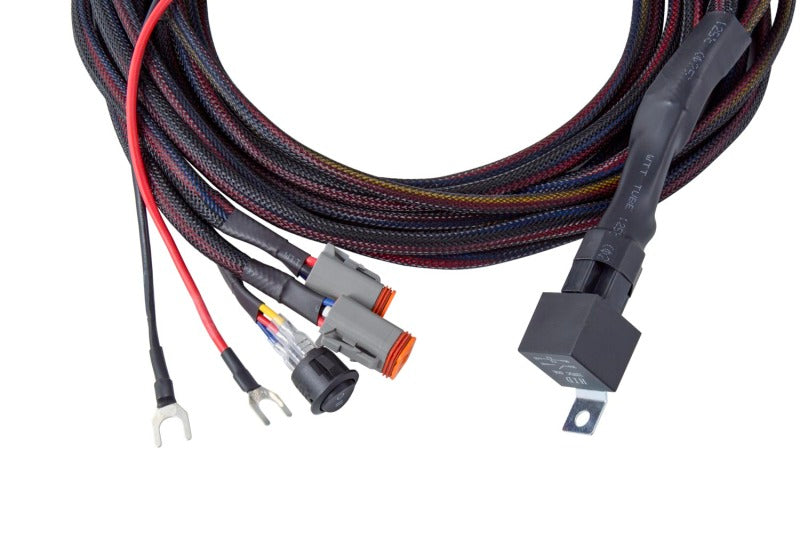

  • Integrated 30 A waterproof fuse and 60 A 12 V relay help protect both the lights and the vehicle’s electrical system.

Stage Series usage

This harness is intended specifically for Stage Series pods with backlight functionality (C1, SSC2, SS3 Backlit, SS5, etc.). It connects straight to your battery and uses a three‑way switch so you can toggle between backlight, off, and main beam. That gives you quick control over accent lighting and full-output lighting from a single, dedicated harness.

Power capacity and current draw

The harness is rated to safely power up to 25 A of auxiliary lamps. To size your setup correctly, you sum the current draw of each pod you plan to run:

  • C1 Sport: 1.2 A

  • C1 Pro: 1.7 A

  • SSC2 Sport: 0.6 A

  • SSC2 Pro: 1.75 A

  • SS3 Non‑Backlit Sport: 2.9 A

  • SS3 Non‑Backlit Pro: 1.2 A

  • SS3 Non‑Backlit Max: 3.3 A

  • SS3 Backlit Sport: 1.06 A

  • SS3 Backlit Pro: 2.87 A

  • SS5 Sport: 2.8 A

  • SS5 Pro: 6.7 A

As long as the total stays at or below 25 A, you’re within the harness’s intended capacity.
