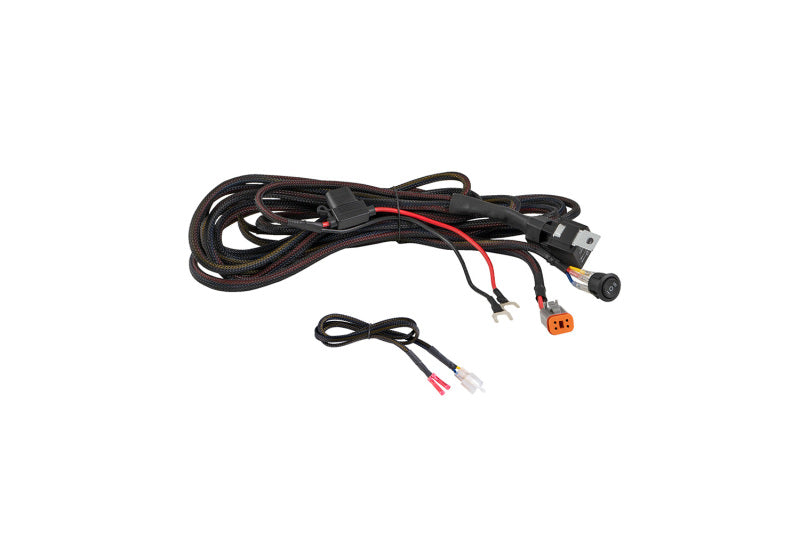

Diode Dynamics Heavy Duty (Single) Output 4 Pin Wiring Harness
Features
-
Powers Diode Dynamics LED pods that include a backlight function, controlling both backlight and main beam together.
-
Connects directly to the vehicle battery to provide a clean, stable power source for off-road lighting.
-
Built with high-capacity 14 AWG wiring to support higher current loads with minimal voltage drop.
-
Includes a single Deutsch DT output connector for simple, plug-and-play connection to compatible pods or splitters.
-
Integrates a 30 A waterproof fuse and a 60 A 12 V relay to safeguard both the harness and your pods.
Overview
This harness is intended specifically for Stage Series LED pods that feature a backlight, such as C1, SSC2, and SS5 pods with backlight functionality. It connects directly to your vehicle’s battery and lets you power your auxiliary lighting from a dedicated, robust circuit rather than tapping into factory wiring. A three‑way switch is included, allowing you to toggle between backlight, off, and main beam, so you can easily choose accent lighting or full output.
Capacity and current draw
With 14 AWG wiring and integrated protection, this harness is designed to safely power up to 25 A of auxiliary lighting. To stay within that limit, you’d add up the current draw of your connected pods based on their type and power level:
-
C1 Sport: 1.2 A
-
C1 Pro: 1.7 A
-
SSC2 Sport: 0.6 A
-
SSC2 Pro: 1.75 A
-
SS5 Sport: 2.8 A
-
SS5 Pro: 6.7 A
As long as the sum of these values stays at or below 25 A, you are within the rated capacity of the harness.
- Powers Diode Dynamics LED pods with backlight functionality
- Connects directly to the battery to power your LED pods
- 30A waterproof fuse and 60A 12V relay
- Single Deutsch DT output connector
- High capacity 14AWG wiring
