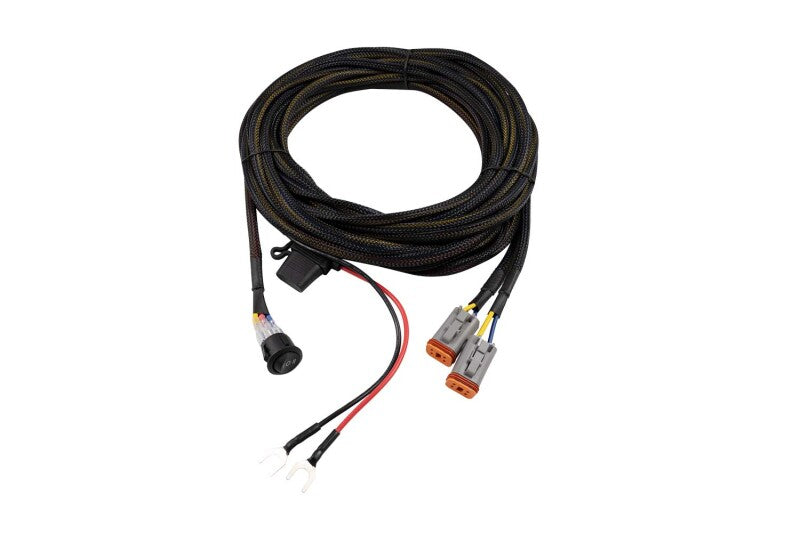

Diode Dynamics Light Duty Dual Output 3-way 4-pin Wiring Harness
Overview

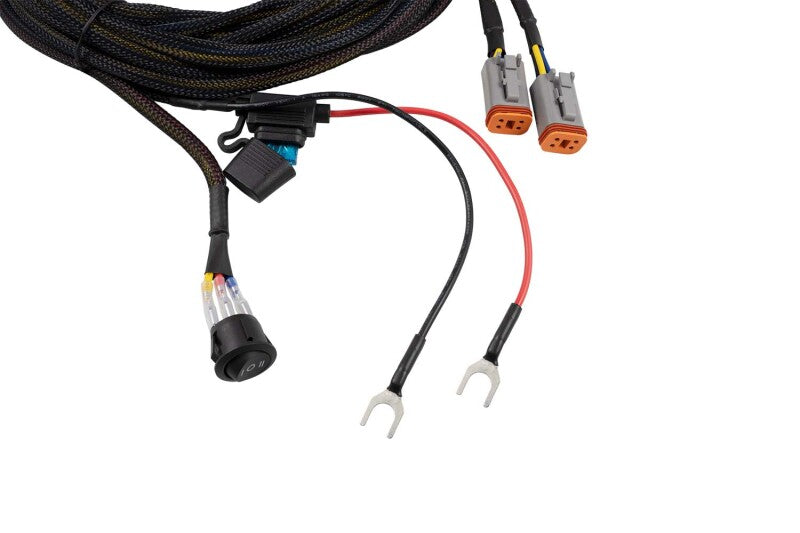

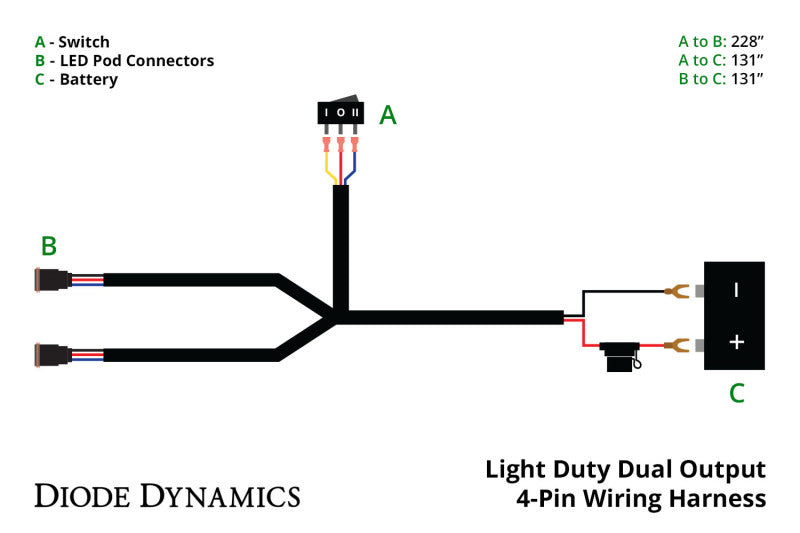

This harness is intended for use with Stage Series pods that include a backlight feature, such as C1, SSC2, or SS3 Backlit models. It connects directly to your vehicle’s battery and uses a three-way switch so you can toggle between backlight, off, and the main beam, giving you simple control over both accent lighting and full-output lighting from a single circuit.
Wiring and capacity
The harness uses high-capacity 16 AWG wiring and Deutsch DT connectors to provide a plug-and-play installation with reliable connections. It is rated to safely power up to 6 A of auxiliary lamps, so you need to size your setup based on the current draw of each pod:
-
C1 Sport: 1.2 A
-
C1 Pro: 1.7 A
-
SSC2 Sport: 0.6 A
-
SSC2 Pro: 1.75 A
-
SS3 Sport (main beam): 1.1 A, backlight: 0.03 A
-
SS3 Pro (main beam): 2.7 A, backlight: 0.03 A
-
SS3 Max (main beam): 3.0 A, backlight: 0.03 A
- Connects directly to the battery to power your offroad lighting
- 15A to safeguard the electrical systems in your offroad lighting
- battery to power your offroad lighting
- Black wire sheathing to protect cables

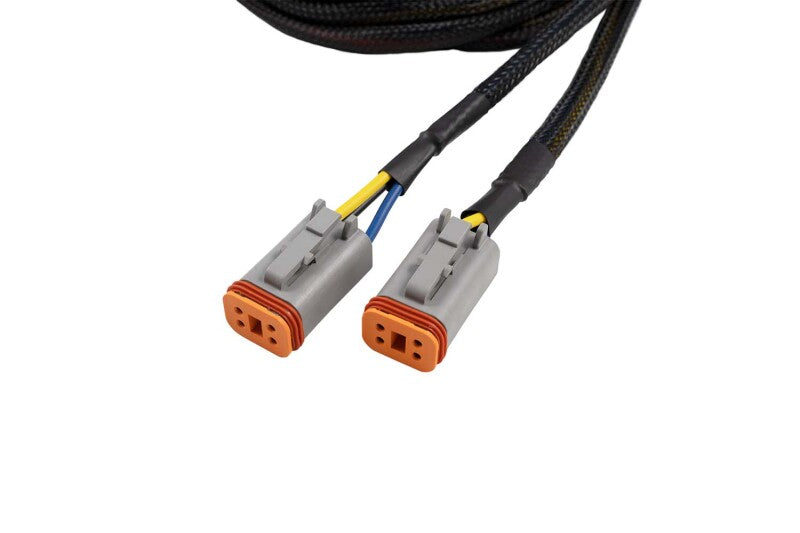

- Dual Deutsch DT output connectors
- Connects directly to the
- High capacity 18AWG wiring
