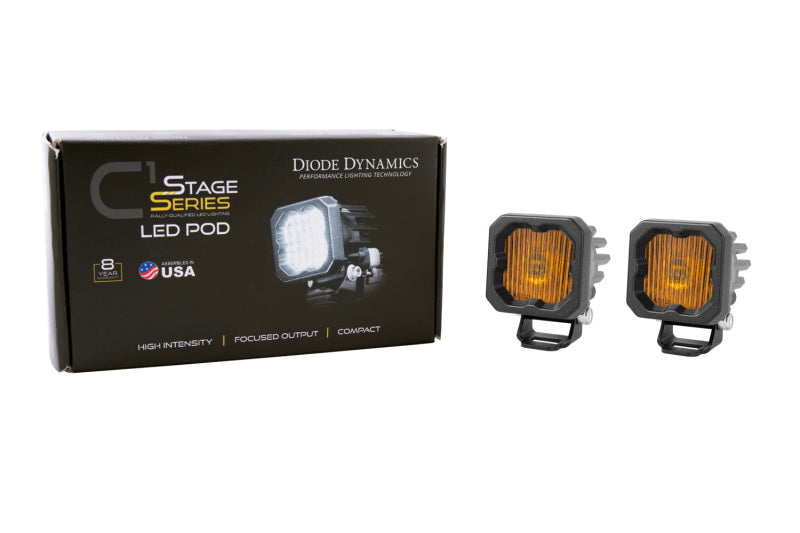

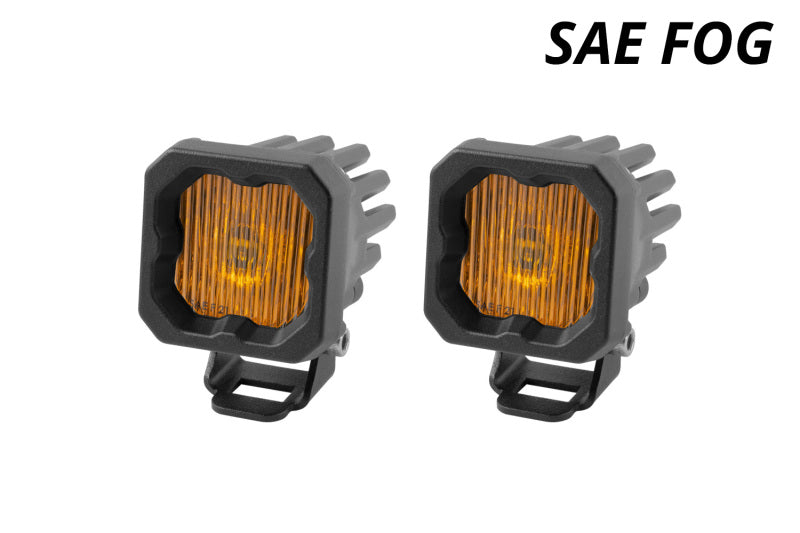

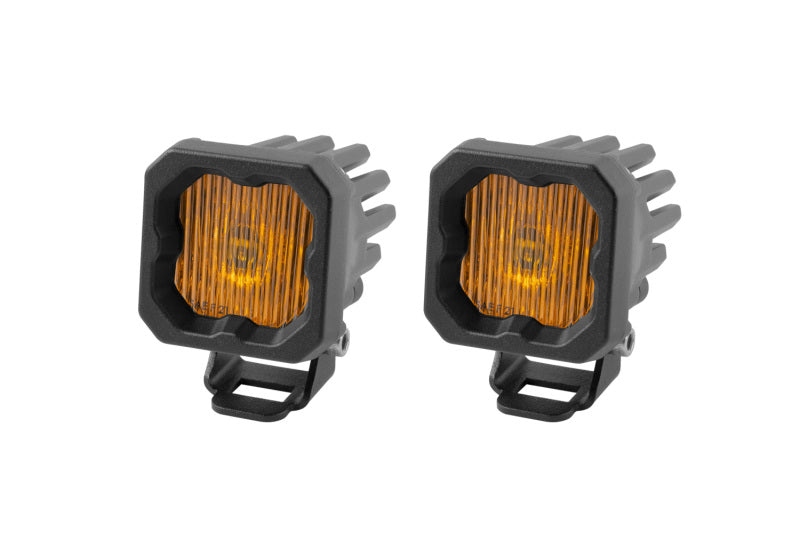

Diode Dynamics Stage Series C1 LED Pod - Yellow SAE Fog Standard ABL (Pair)

Features: Compact single-LED form factor. SAE-compliant, road-legal output. Single automotive-grade Osram HX Boost 20-watt LED. Brilliant amber backlighting. Integrated Deutsch-style connector. Designed, torture-tested, and assembled in the USA.

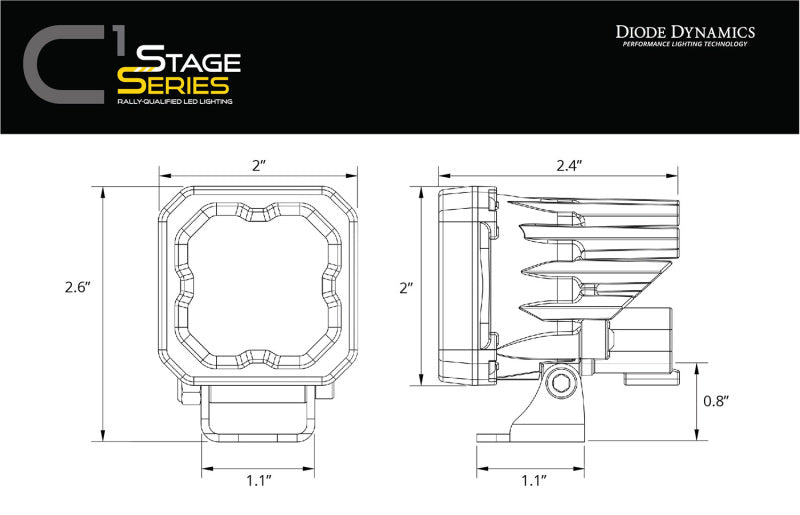

Overview: The Stage Series C1 (SSC1) LED Pod combines custom-engineered TIR optics with a single high-power LED to deliver maximum performance and light output in an ultra-compact housing. Its small size allows it to be mounted almost anywhere on your car, truck, motorcycle, or UTV, including locations where larger pods simply won’t fit.

Focused optics: Traditional reflectors and simple lenses lose light internally and create glare, so not all of the output reaches the target. The SSC1’s custom TIR optic captures the LED’s light and directs it precisely where you need it, drastically reducing glare and improving overall efficiency.

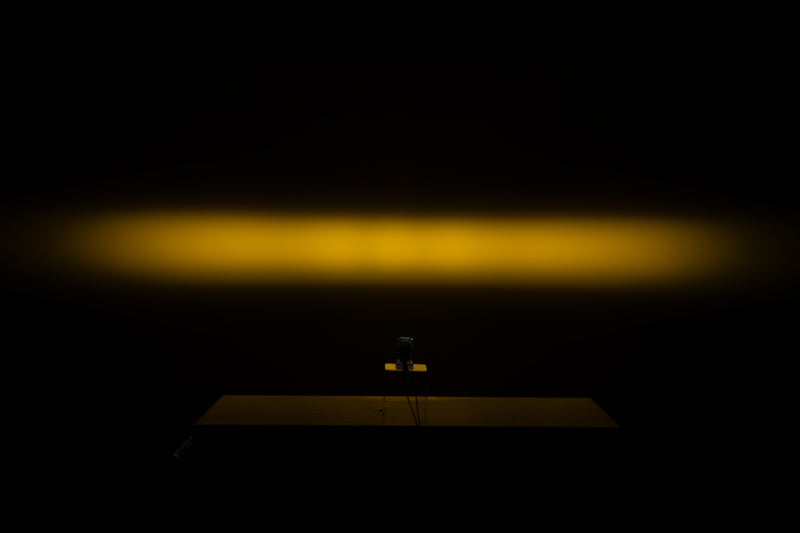

Functional output: The SSC1 SAE Fog variant is engineered using optical simulation to produce a highly effective, road-legal fog pattern that meets the SAE J583 standard as a foglamp. With just a single LED, it delivers full illumination of the area in front of your vehicle while remaining the smallest aftermarket fog lamp on the market.

Backlight functionality: The Stage Series C1 LED Pod also includes a distinctive amber backlight that fully illuminates the TIR optic, creating unique accent lighting not typically found in single-LED pods. This backlight provides a modern, eye-catching visual signature separate from the main beam.

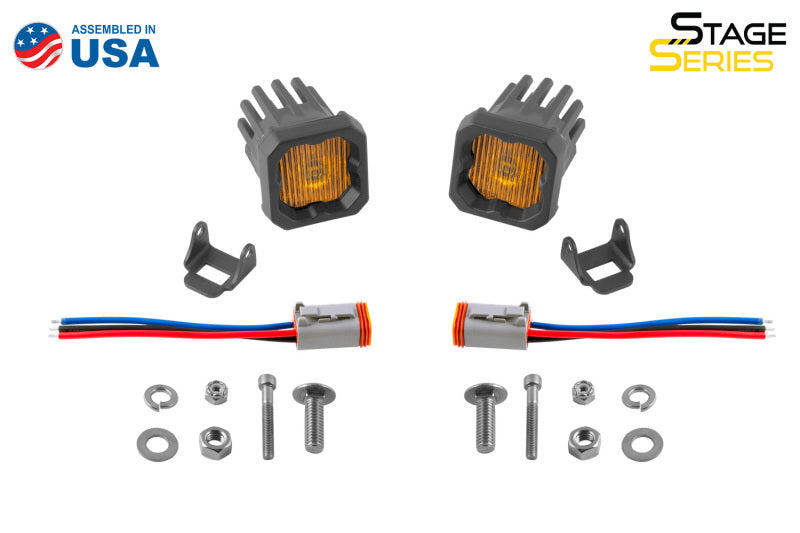

Simple connections: Each Stage Series C1 LED pod uses a custom-molded DT-type Deutsch-style connector on the back and comes with a 6-inch pigtail with bare leads. This setup makes wiring straightforward while ensuring a secure, weather-resistant connection.

Installation Instructions

• Modern TIR optics for the highest intensity on the market
• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design
