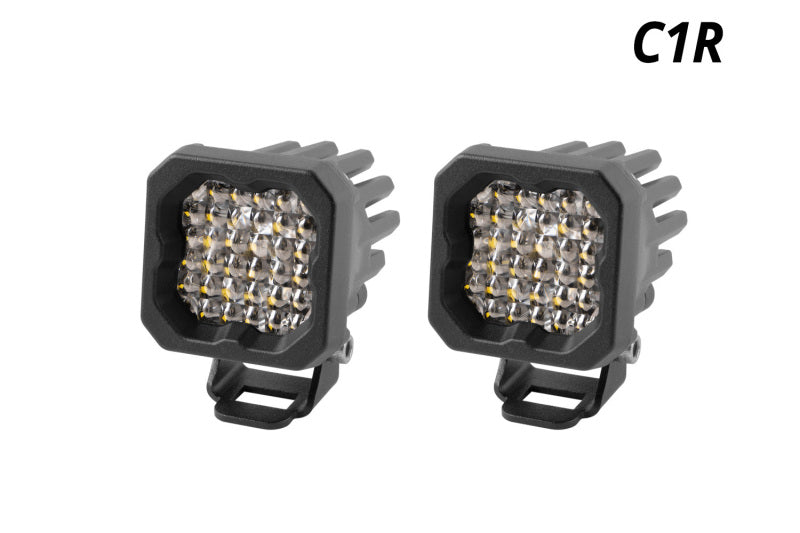

Diode Dynamics Stage Series C1R - White Flood Standard LED Pod (Pair)

Features: Ultra-compact single-LED form factor. Triple function: high-power white main beam, high-power red main beam, and low-power red accent light. Pin-fin heatsink design for superior thermal dissipation. Integrated Deutsch-style connector. Designed, torture-tested, and assembled in the USA.

Overview: The Stage Series C1R LED Pod combines custom-engineered TIR optics with a single high-power LED to deliver three distinct lighting functions in an extremely compact package. Its small size allows it to be mounted almost anywhere on a car, truck, motorcycle, or UTV, including locations where larger LED pods will not fit.

Triple function: The C1R features a cool white main beam, a high-power red main beam, and a low-power red accent light, each of which can be controlled independently. It is designed to function as a high-power reverse light alongside your factory reverse lights, a fourth brake light when the brakes are applied, and a secondary running light tied in with your tail lights.

Focused optics: Traditional optics such as reflectors or simple lenses lose light internally and create glare, so not all of the light reaches the target. The custom-engineered TIR optic in the C1R captures all of the light from the LED and directs it only where you need it, significantly reducing glare and improving overall efficiency.

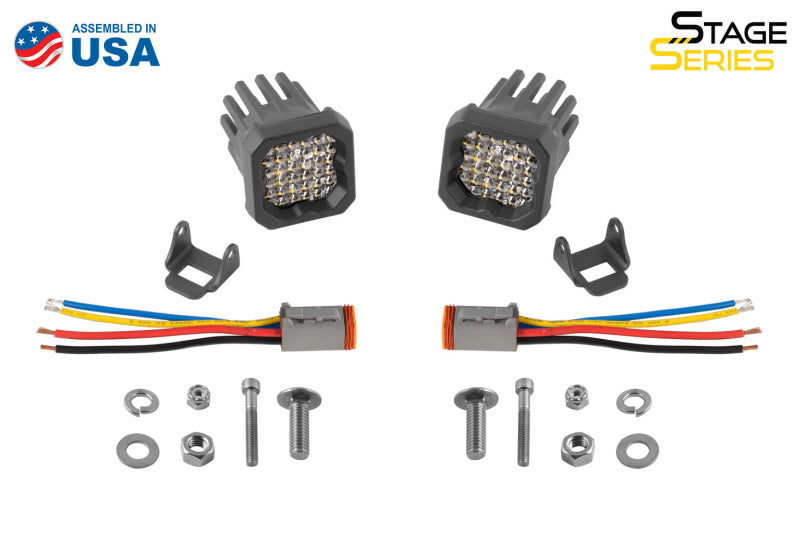

Simple connections: Each Stage Series C1R LED pod includes a custom-molded DT-type Deutsch-style connector and a 4-pin, 6-inch pigtail with bare leads. The yellow wire powers the high-power red output, the red wire powers the white main beam, the blue wire powers the low-power red accent, and the black wire serves as ground.

• Triple function: white main beam red main beam and red accent light
• Designed tested and assembled in USA
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design
