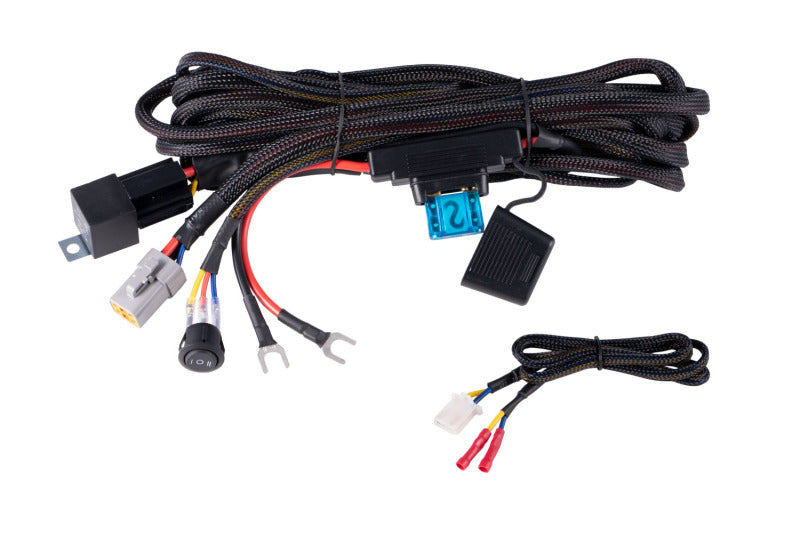

Diode Dynamics Ultra Heavy Duty Single Output 4-Pin Wiring Harness
This Ultra Heavy Duty harness is a high-capacity, battery-direct wiring solution designed specifically to power 5–8 pod SS5 CrossLink Pro light bars safely and reliably.
Features
Powers 5–8 pod SS5 CrossLink Pro light bars, providing stable power for high-draw off-road lighting setups.
Connects directly to the vehicle’s battery, supplying clean, consistent power to your LED pods.
Uses high-capacity 10 AWG wiring to handle heavy current loads without excessive voltage drop.

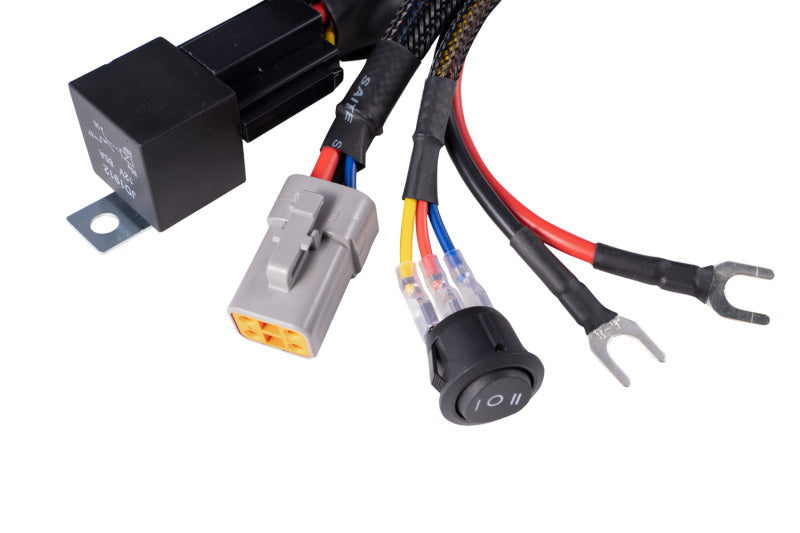

Single Deutsch DT‑P output connector (on single‑output versions) or dual DT‑P connectors (on dual‑output versions) for plug‑and‑play connection to UHD SS5 splitter harnesses.

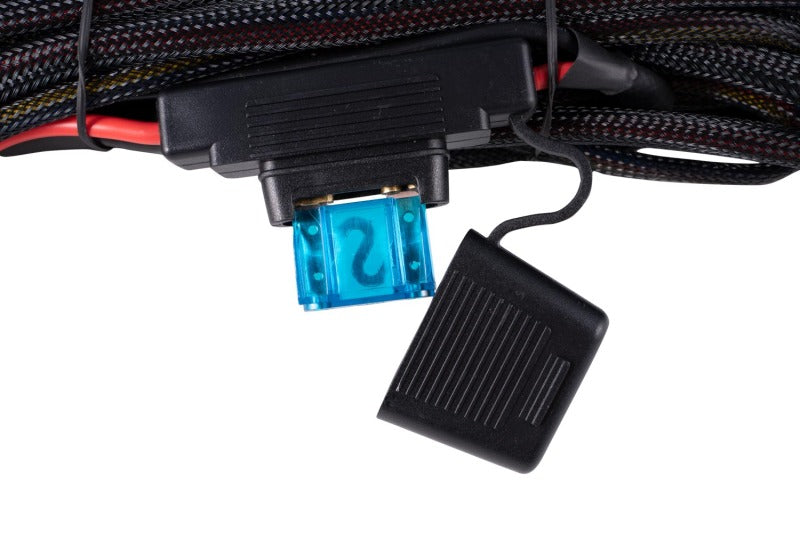

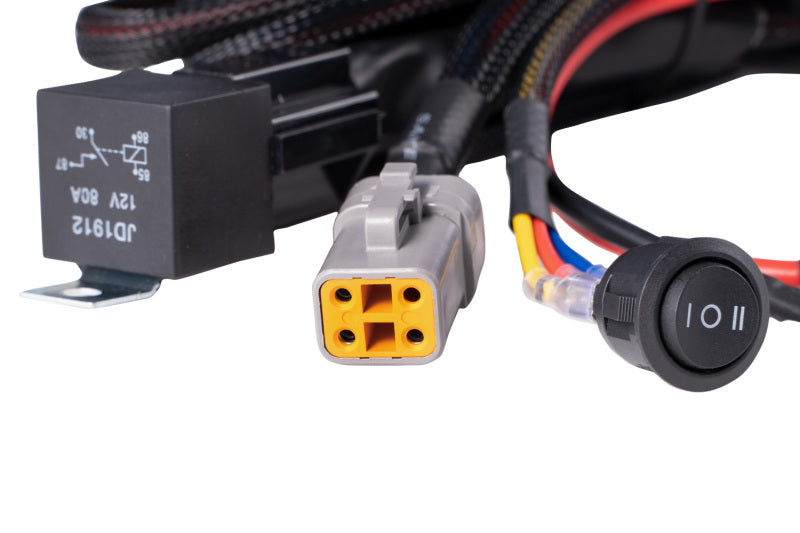

Integrated 60 A waterproof fuse and 80 A 12 V relay help safeguard your pods and vehicle electrical system.
Overview

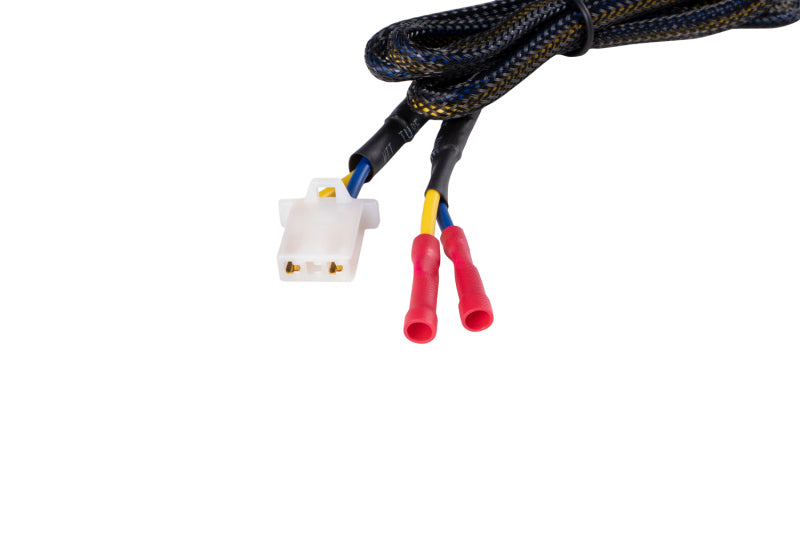

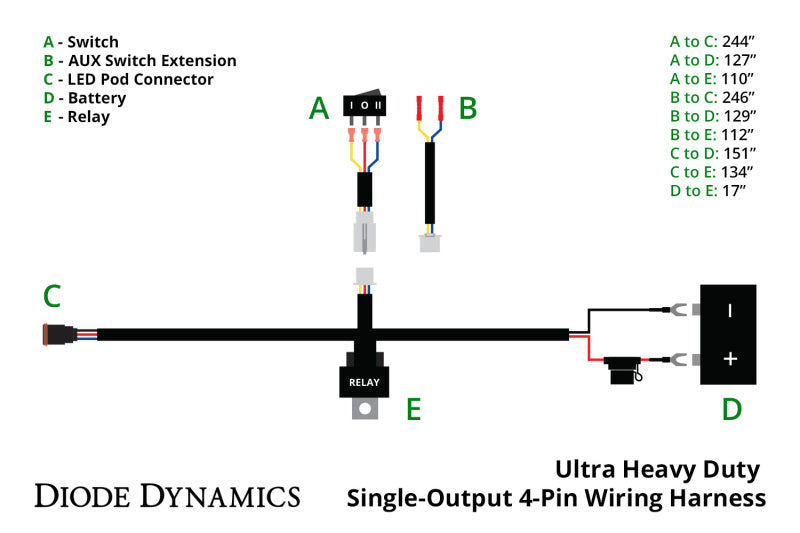

The harness is purpose-built as part of the Stage Series ecosystem to safely power CrossLink Pro light bars built with five or more SS5 Pro LED pods. It connects directly to your battery and lets you control the pods with the included three‑way switch (backlight / off / main beam) or through an auxiliary switch bank using the included adapter, giving flexible control options. High‑capacity 10 AWG wiring and a DT‑P connector make for a robust, plug‑and‑play installation suitable for up to roughly 45–60 A of auxiliary lighting, depending on harness version.
Compatibility
This harness uses a DT‑P size output connector, which is intended to plug into an Ultra Heavy Duty SS5 splitter harness when building a multi‑pod CrossLink bar. It does not plug directly into individual Diode Dynamics LED products; instead, the splitter harnesses bridge between the DT‑P output and the standard DT connectors found on each SS5 pod.
- 60A waterproof fuse and 80A 12V relay to safeguard the electrical systems in your pods
- 60A waterproof fuse and 80A 12V relay to safeguard the electrical systems in your pods
- Connects directly to the battery to power your LED pods
- Powers 5-8 Pod SS5 CrossLink Pro Lightbars
- Single Deutsch DT-P output connector
- High capacity 10AWG wiring
