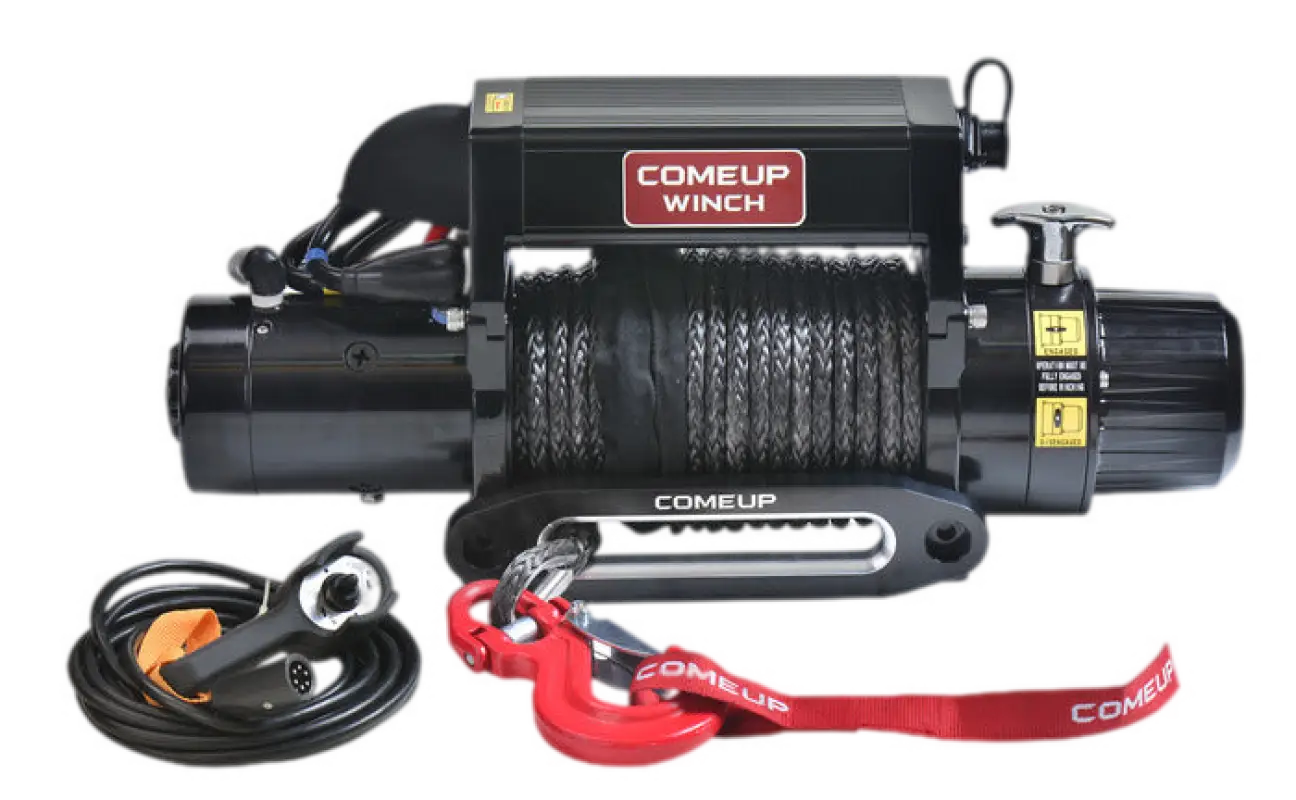

DV-9si, 12V WINCH
Fast, powerful and high efficiency performance.
Heavy duty series wound motor delivers superior torque output and faster line speed.
Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance.
Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion.
Tough Aluminum alloy housings.
Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated.
Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency.
An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
Specifications
Rated Line Pull 9,000 lbs (4,082 kg) single line
Motor 4.6 hp / 3,430 w 12V Series Wound
Gear Ratio 3-Stage Planetary 156:1
Clutch (freespooling) Rotating Ring Gear
Brake Automatic, full load CBS (Cone Brake Structure)
Winch Construction Aluminum Die Cast Housing with Steel Drum
Drum Size 2.5"� x 8.9"� (63.5 x 227 mm)
Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
Rope Type Synthetic Rope
Rope Size 3/8"� x 100' (10 mm x 30.5 m)

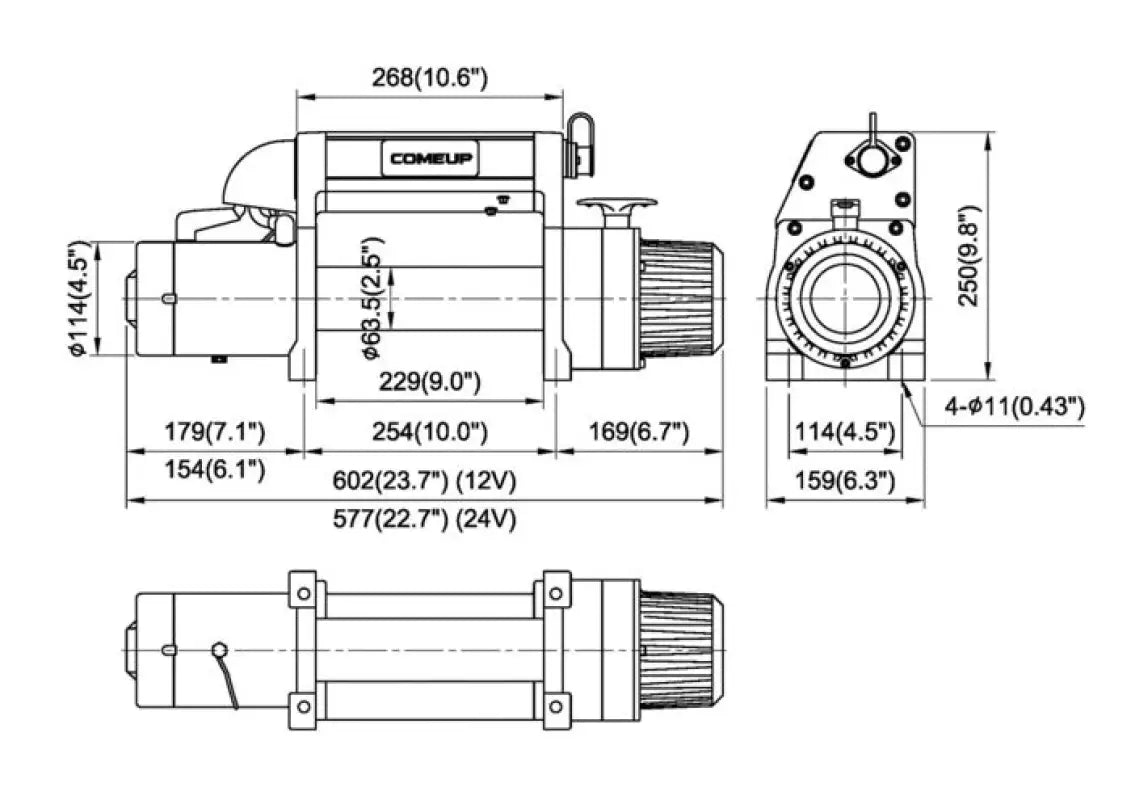

Mounting Bolt Pattern 10"� x 4.5"� (254 x 114 mm)
Winch Weight 68.3 lbs (31.0 kg)
Gross Weight 81.6 lbs (37.0 kg)
Box Dimensions 25.6"� x 7.7"� x 16.3"� (650 x 192 x 415 mm)
