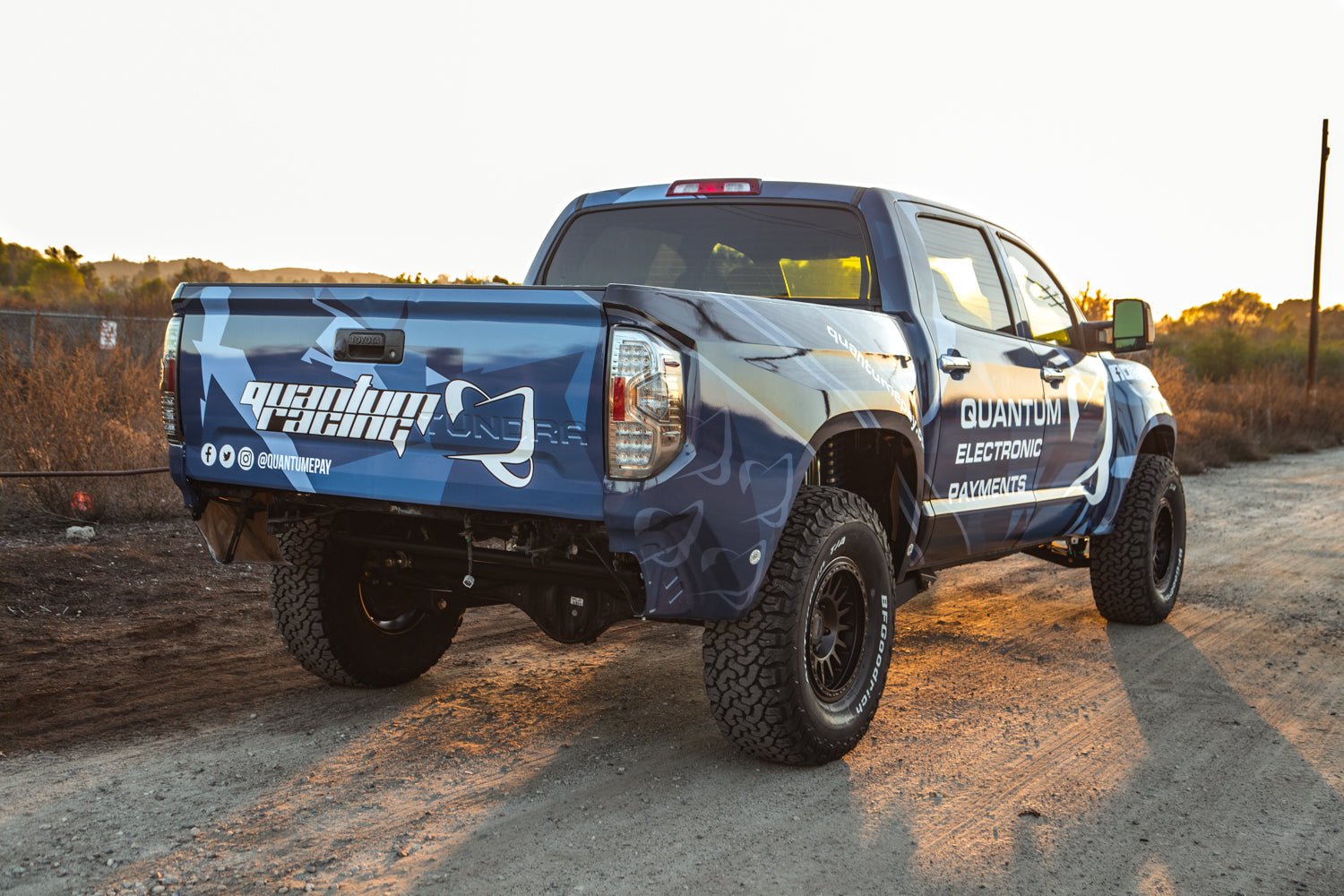

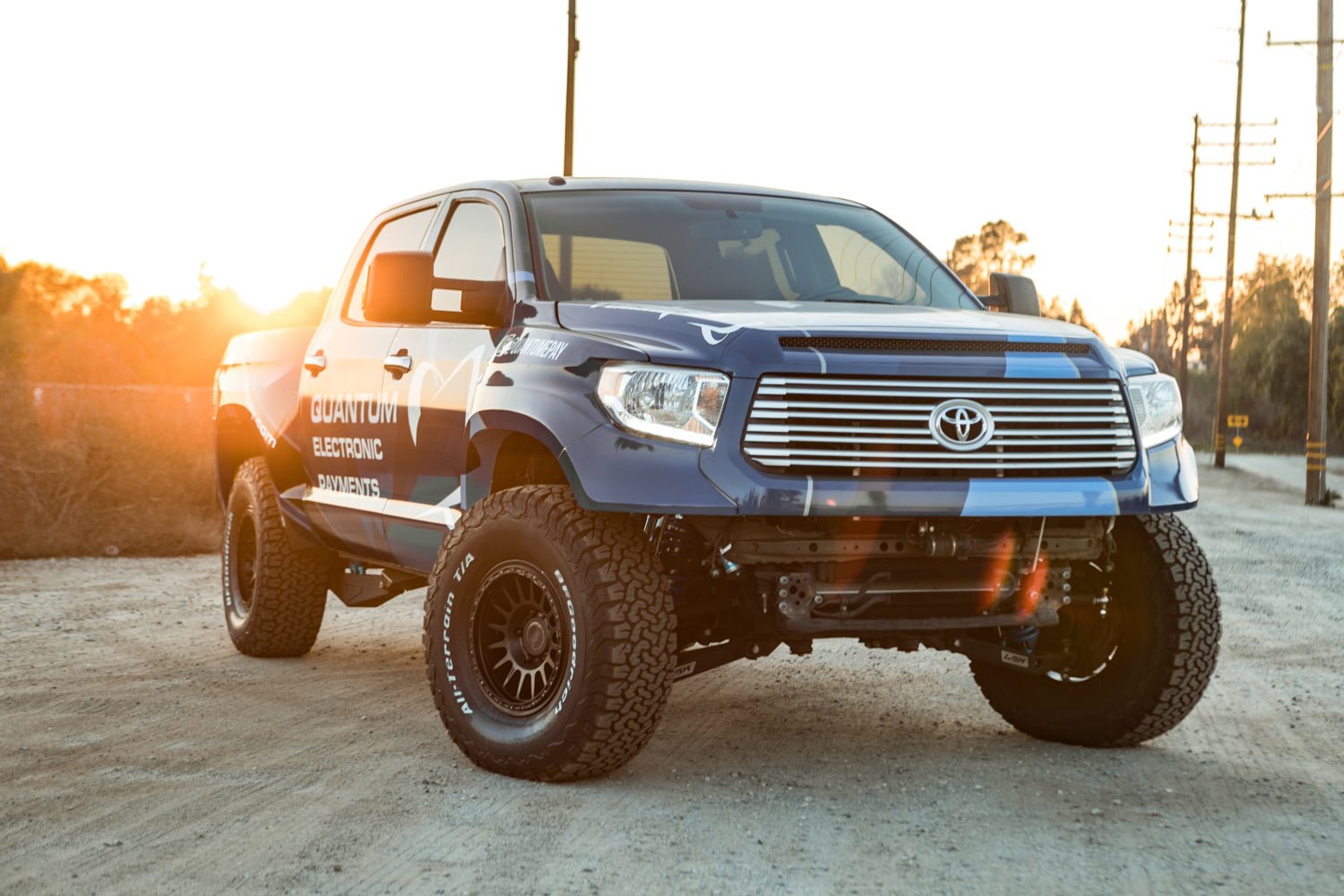

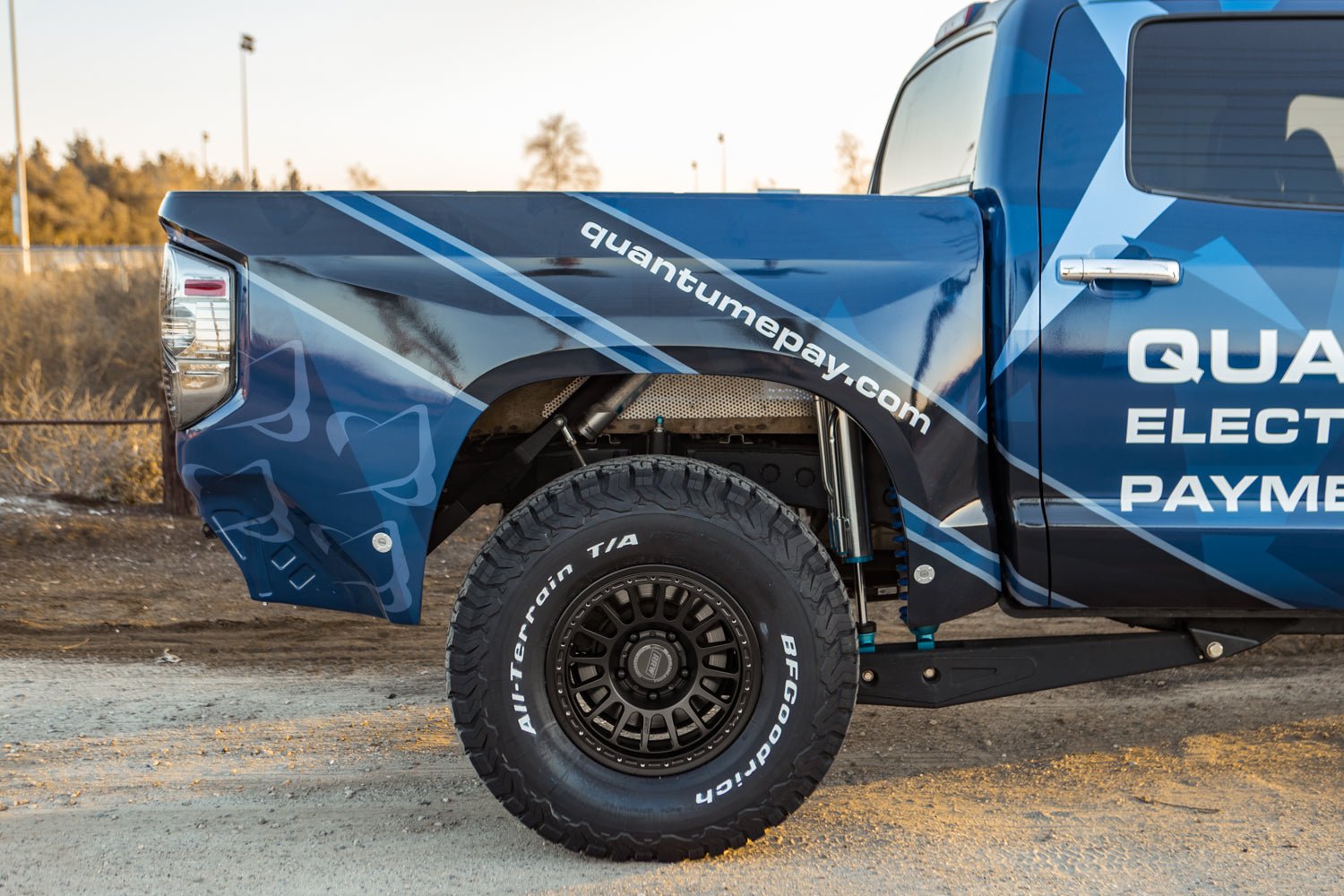

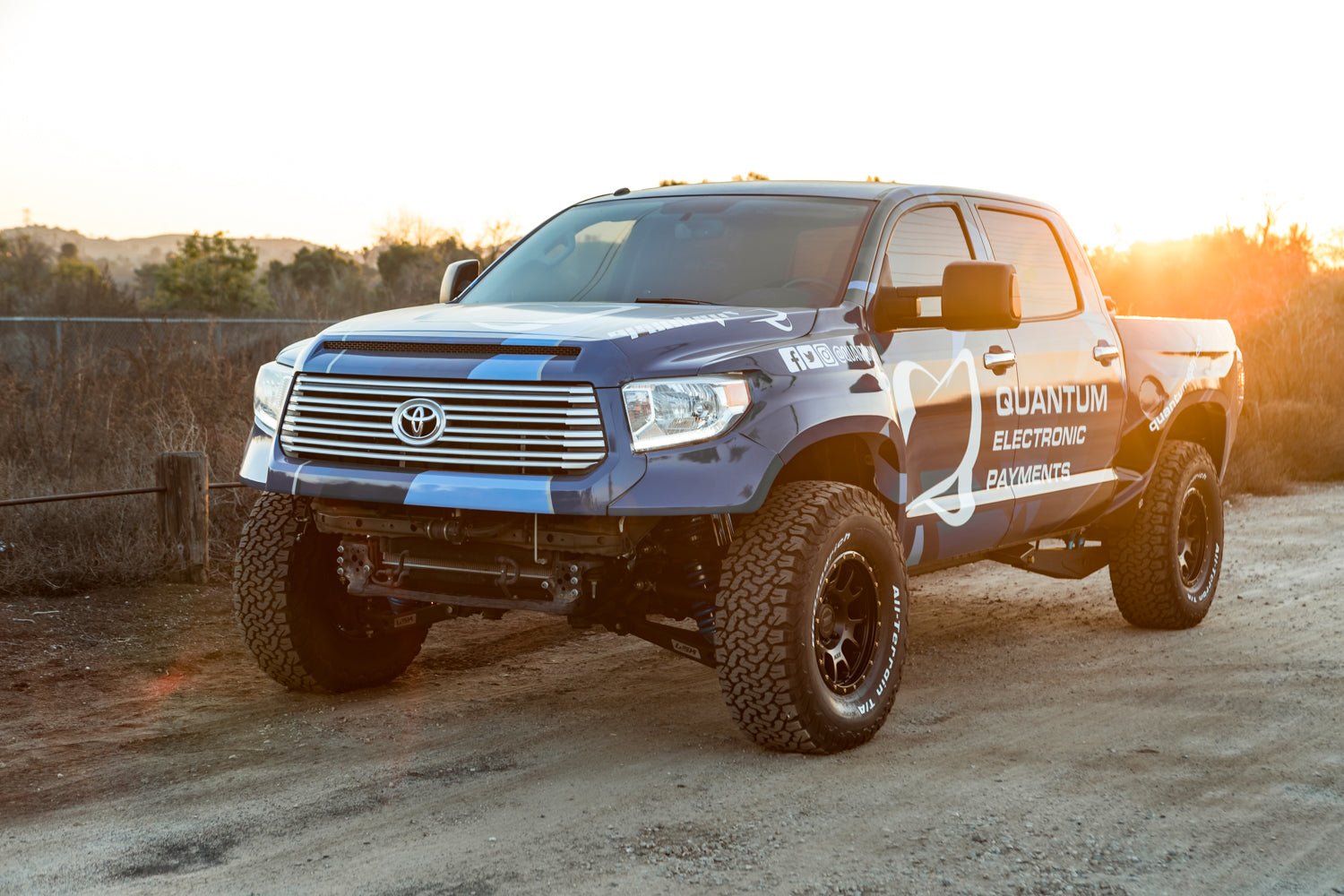

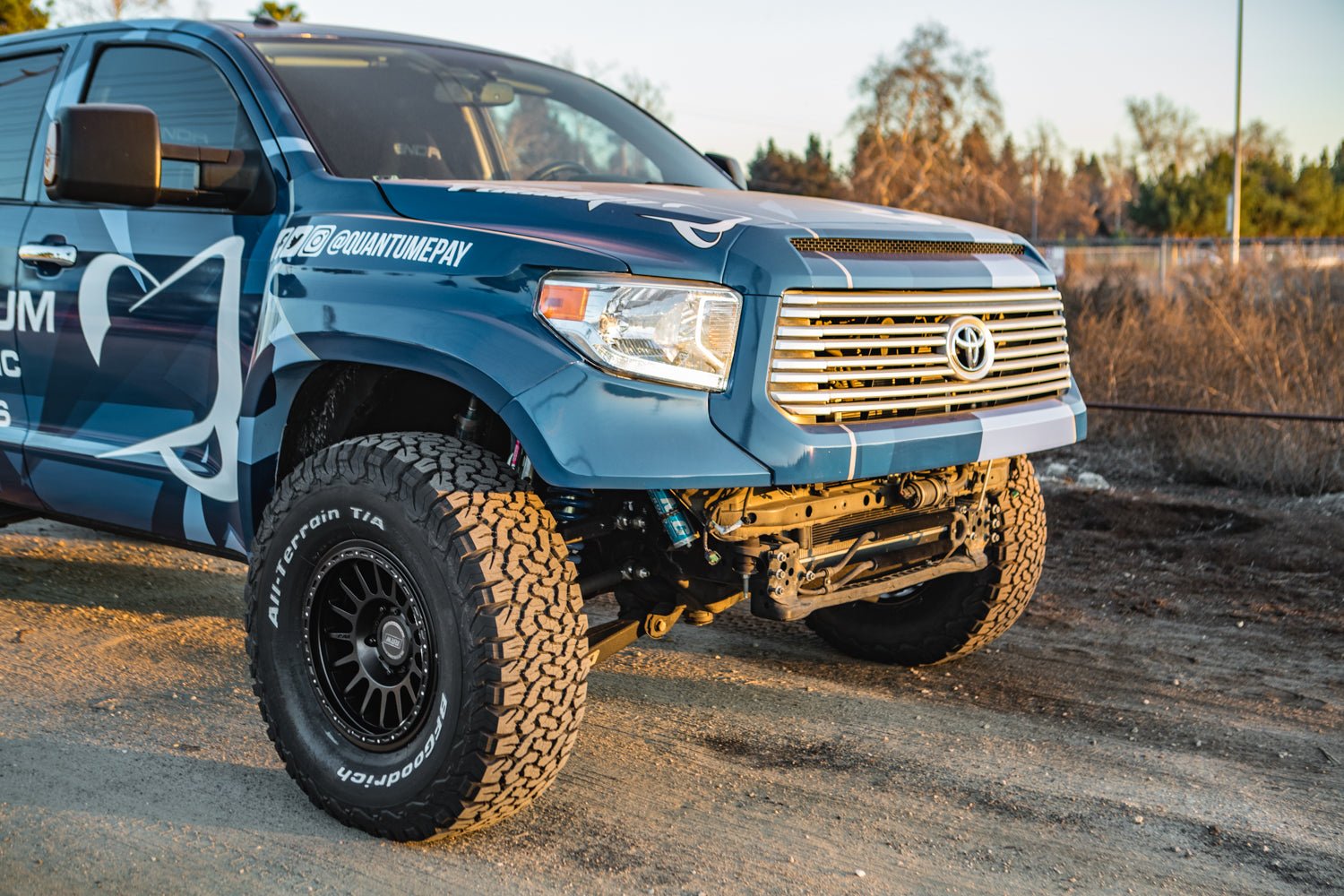

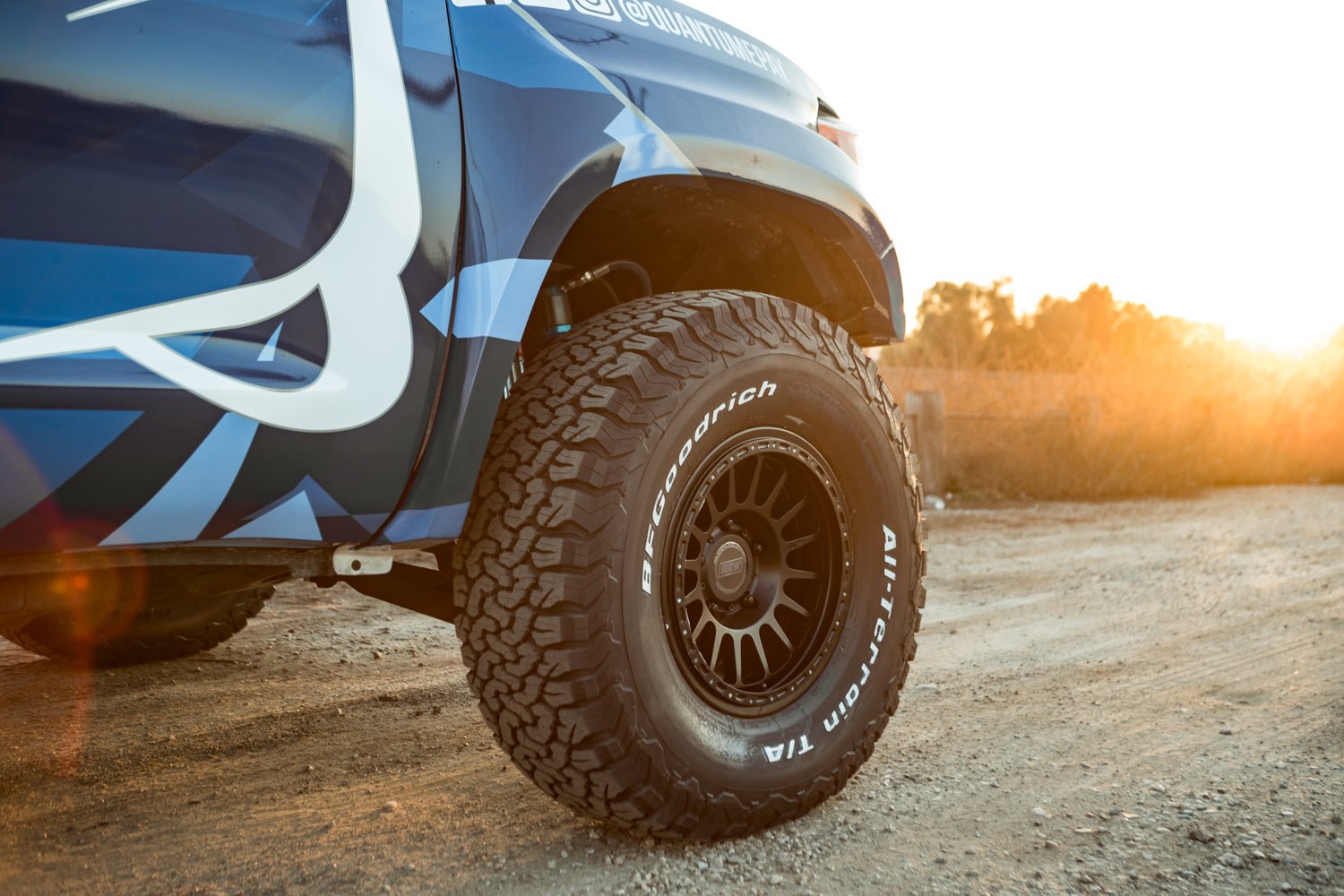

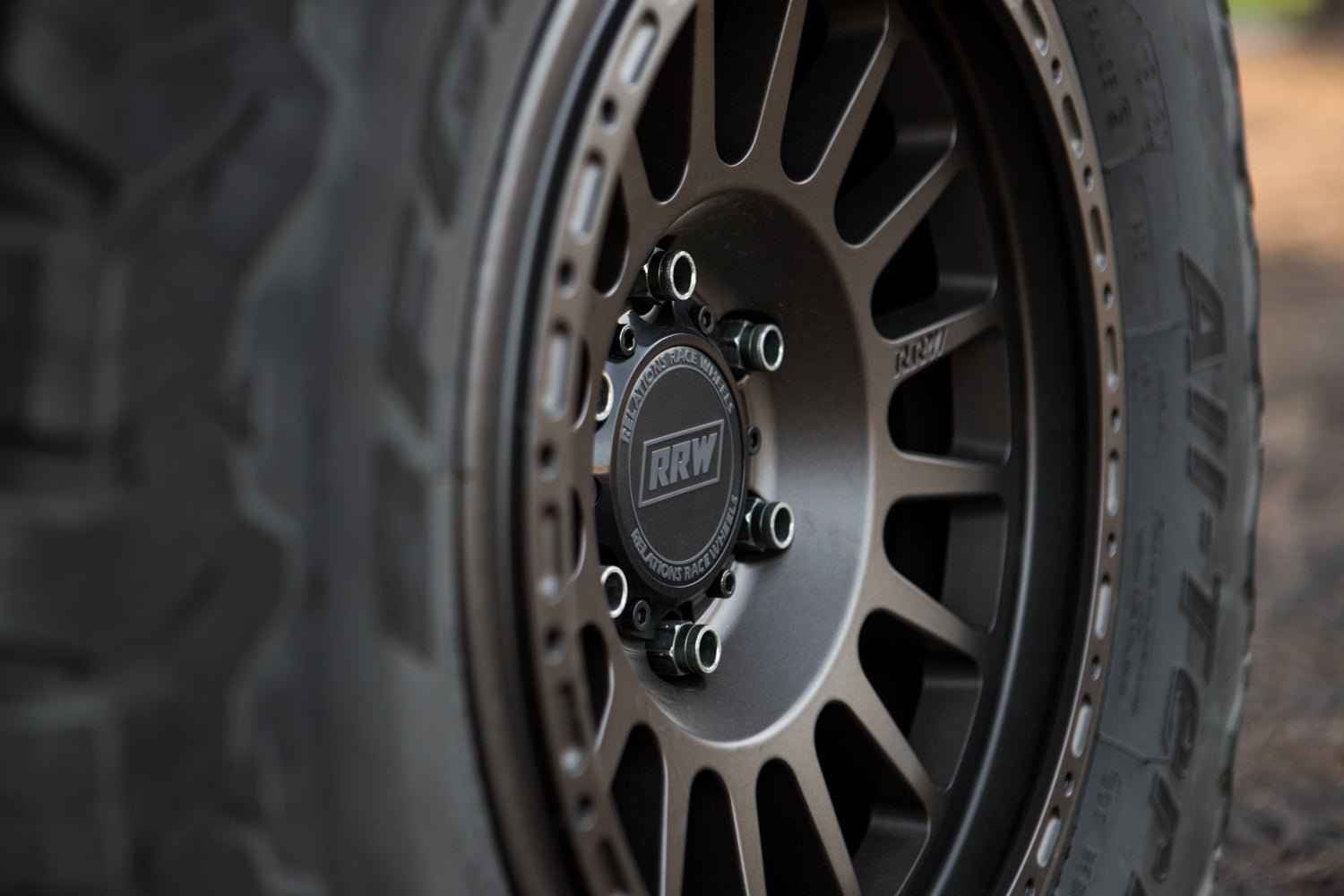

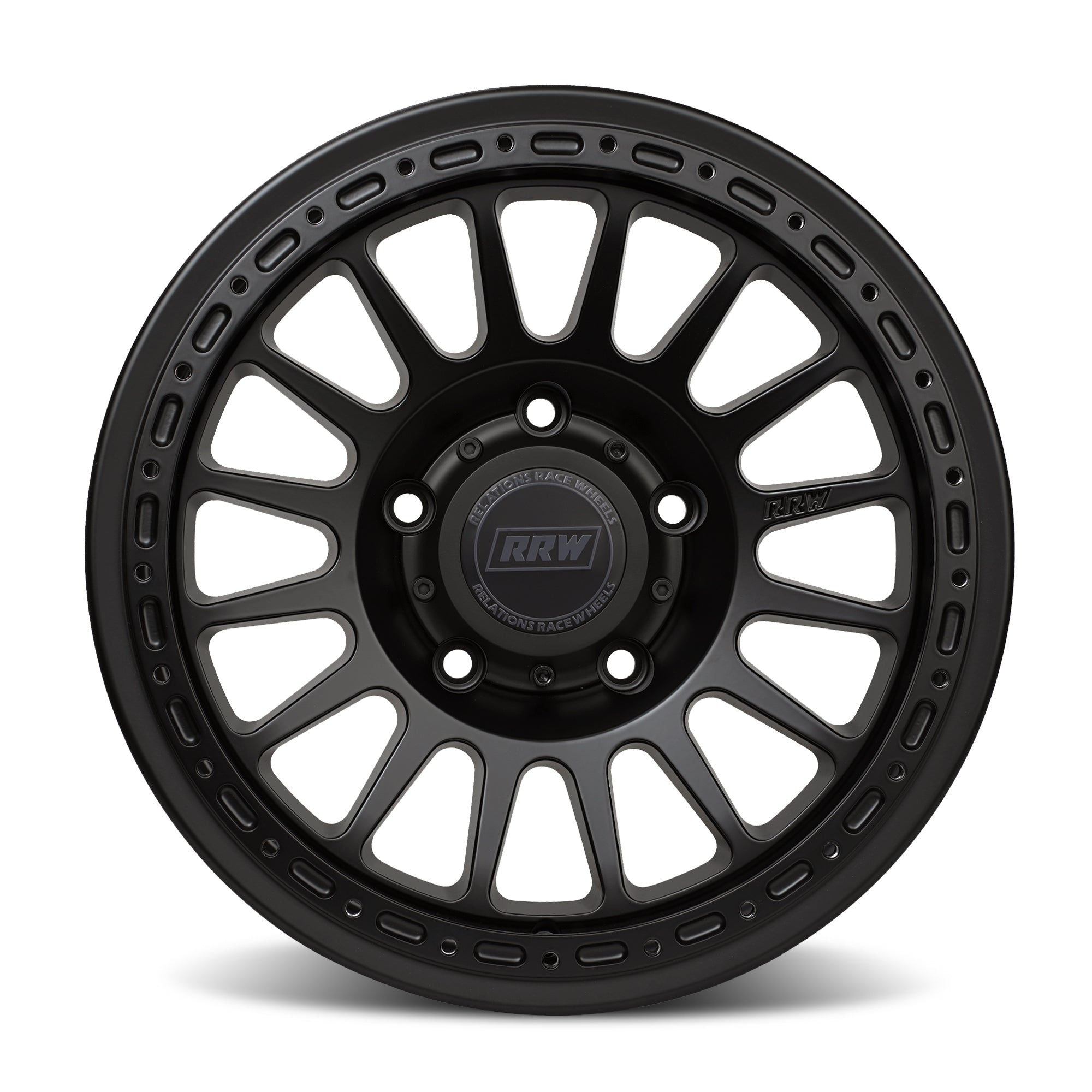

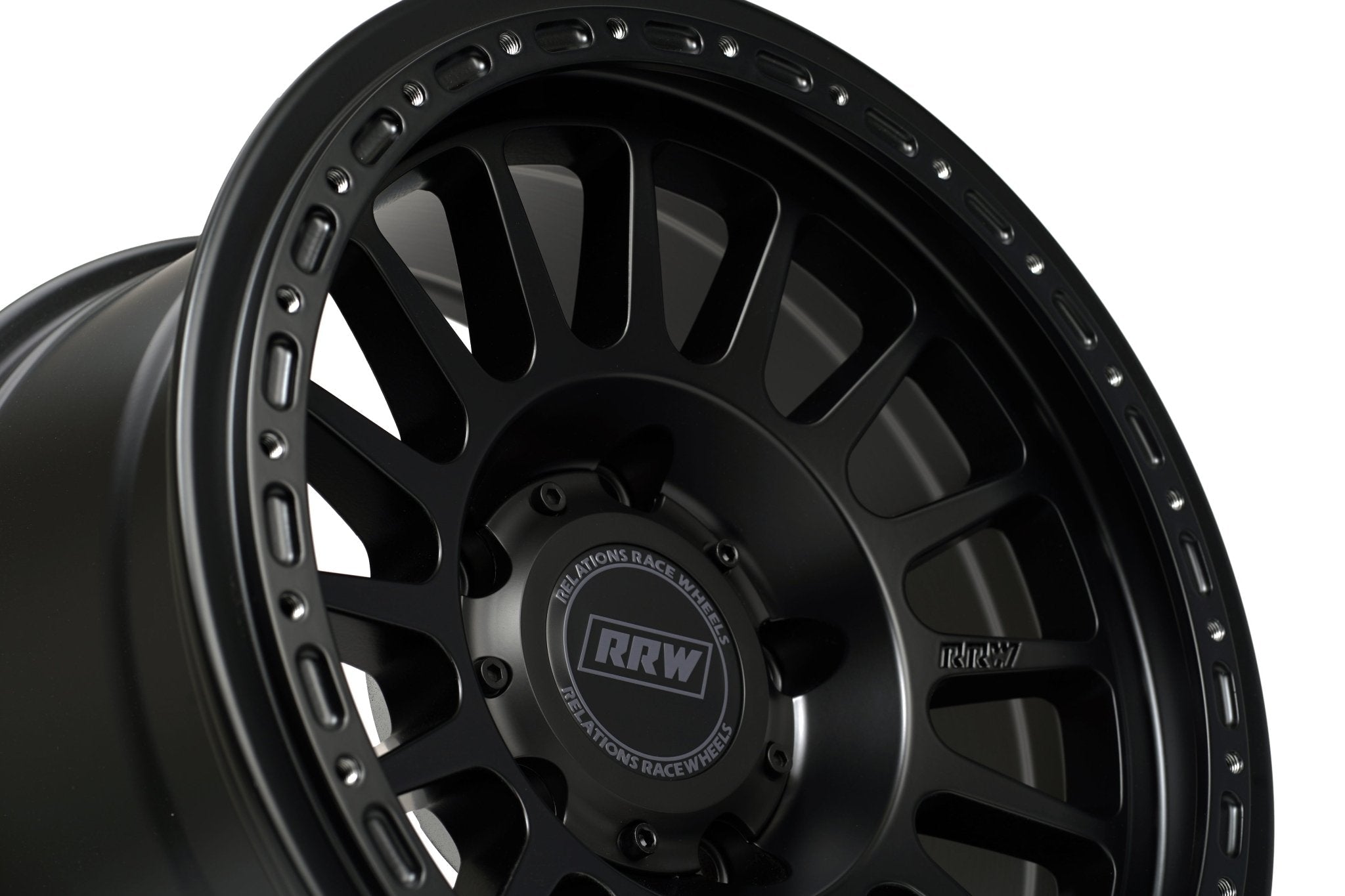

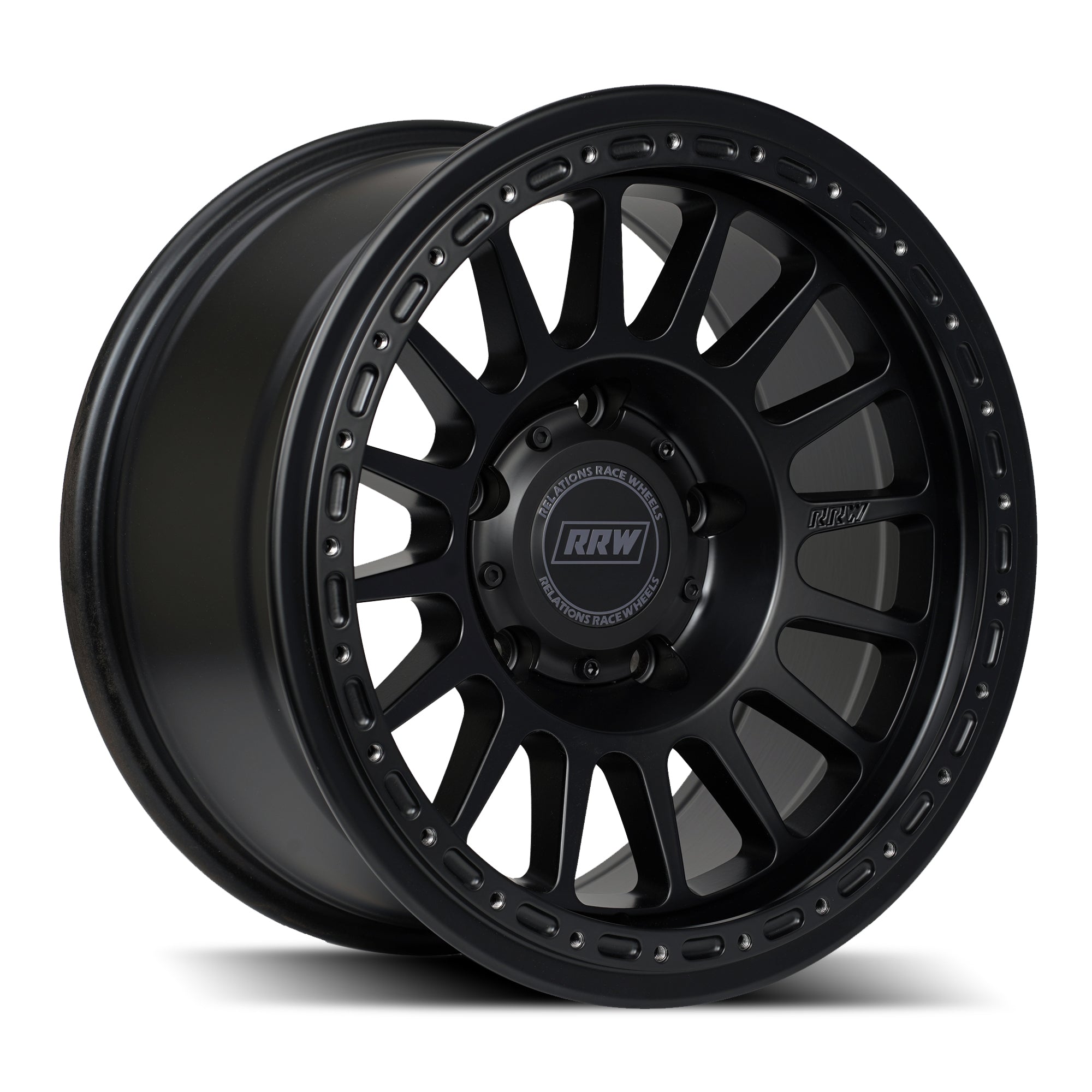

RR6-H 17x8.5 Hybrid Beadlock | MATTE BLACK

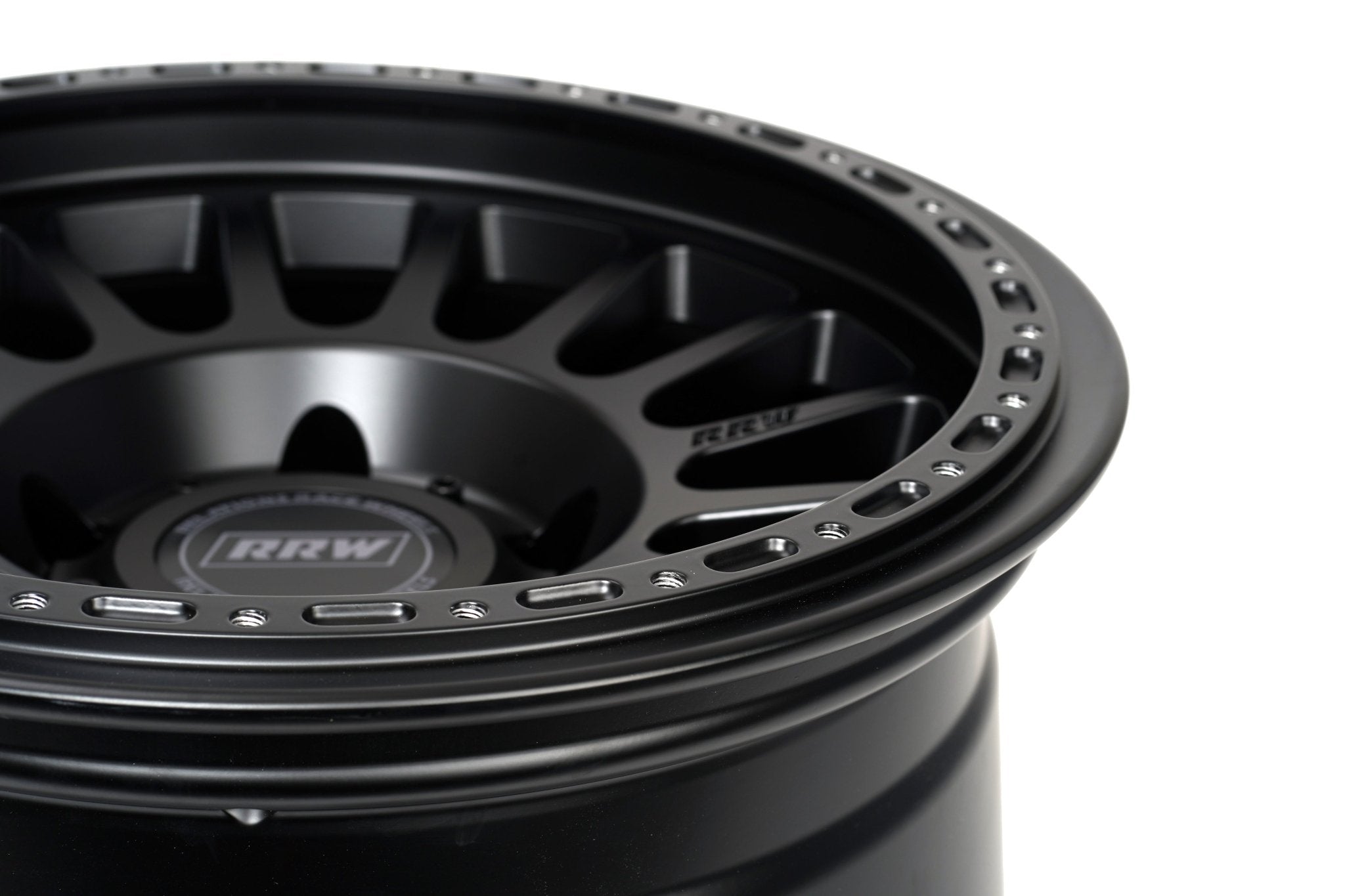

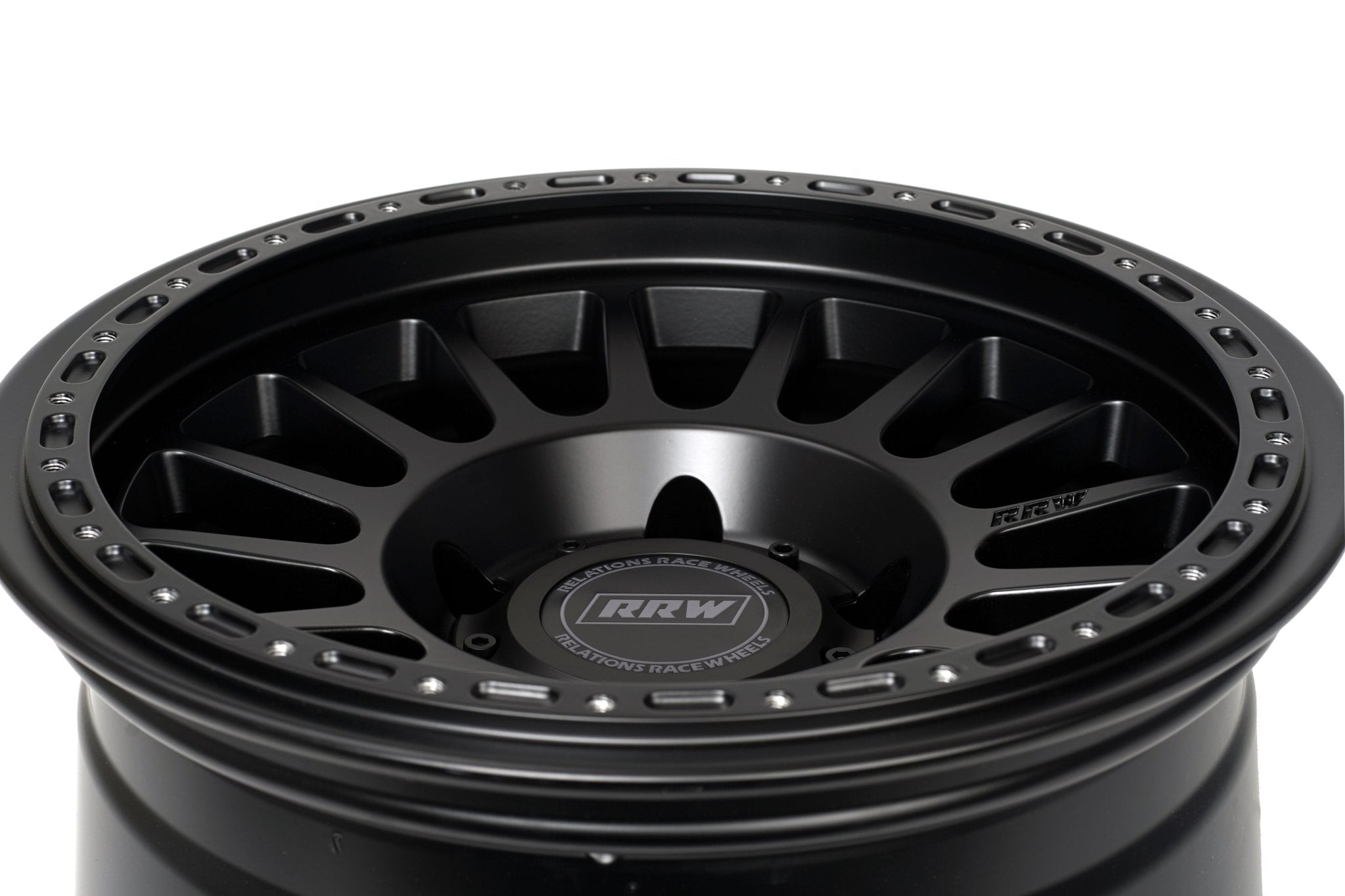

The RR6-H features a hybrid design that allows you to run it as a street wheel or as a true beadlock, allowing you to customize by your usage. Either add the Forged Beadlock Ring if you ever decided to go wheeling, or purchase the Protection Ring which comes in your choice of design and color, and offers standard protection to the lip.
Specifications
Size: 17x8.5
Bolt Pattern and offset: 5x150 +0 or 6x139.7 -25
Center Bore for 5x150: 110.1 mm (hub-centric for the Toyota Tundra)
Center Bore for 6x139.7: 106.1mm (hub-centric for 3G Tacoma, 4Runner and GX)
Load Rating: 2500 lbs
Weight: approx 28.4 lbs
Backspacing: 4.75"
Compatible with TPMS
Customization Options (Accessories)
- Add a Protection Ring
- Protection Ring can be replaced once worn if heavily damaged
- Add a Forged Beadlock Ring made of aluminum that includes longer grade 10.9 bolts by clicking here
- The beadlock ring is intended for offroad use ONLY
Vehicle Fitment
5x150: Toyota Tundra (2021 and older ONLY. This DOES NOT fit the 2022-2023 Tundra)
6x139.7: 3G Tacoma, 4Runner, Lexus GX460 GX470, Chevy Silverado
Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
RR6-H with the true beadlock ring is for offroad use ONLY and NOT street use.
