All-Pro Tacoma Leaf Springs - Rear 3" (05-23)
All-Pro Tacoma Leaf Springs - Rear 3" (05-23)
All-Pro Tacoma Leaf Springs - Rear 3" (05-23)
Trail-Gear

All-Pro Tacoma Leaf Springs - Rear 3" (05-23)

Sale price$979.00 USD
Spring Rate: Standard - Stock Weight

2005+ Tacoma Rear 3" Leaf Springs

  • SOLD AS A PAIR
  • Free Shipping

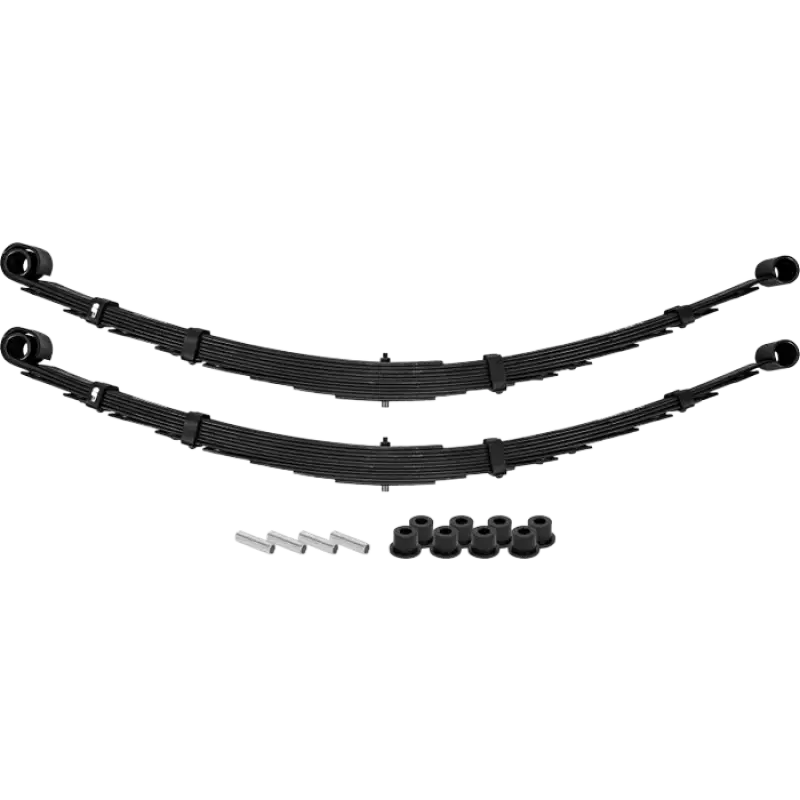

All-Pro Standard Leaf Springs

Improve your Tacoma's suspension performance and gain lift for tire clearance and long travel with All-Pro Standard Duty Leaf Springs! These 2005+ Tacoma 3″ lift leaf springs mount in the original spring hangers. They feature a special torque leaf to reduce axle wrap. The 11-leaf pack provides a smooth, progressive spring rate, while extended U-straps and Teflon friction pads improve performance. The military wrap at the non-shackle eye provides the durability to take years of punishment.

Standard Leaf Spring Specifications

  • Number of Leaves: 10 + 1 Overload/Rebound
  • Eyelet-to-Eyelet Length (Free): 54-3/8″ (1381 mm)
  • Spring Rate: 151 lbs/in

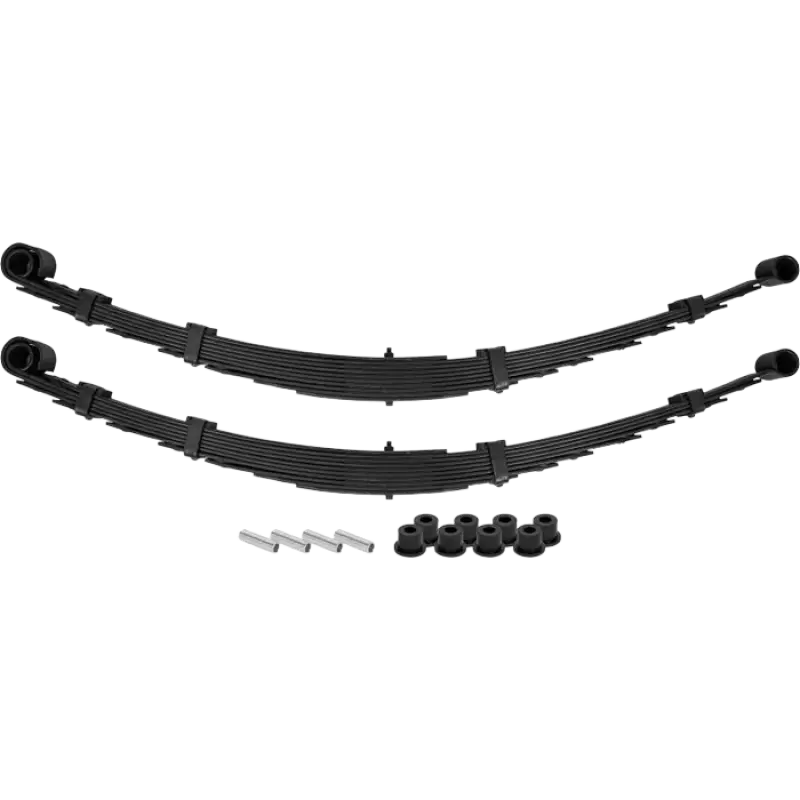

All-Pro Expedition Leaf Springs

All-Pro Off-Road now offers a heavy duty "Expedition" version of its popular rear leaf springs for Toyota Tacoma. Long known for the superior quality and off-road performance of their standard duty leaf springs, All-Pro's new Expedition leafs are specifically designed to combine off-road performance with heavy duty weight carrying capacity. The popular expedition style in off-road vehicles results in trucks that are carrying heavier loads than normally seen off-road. Specialized long-distance excursion gear such as roof-top tents, recovery and repair gear, camping equipment, and extra water and other fluids can add significantly to the cargo weight of expedition vehicles. This usually means exceeding the intended operating parameters of typical performance leaf springs.

All-Pro's Expedition Leaf Springs feature a 20% higher spring rate than their standard leaf springs. They are otherwise identical in dimension and quality, providing the same eye-to-eye measurements and wheel travel. Our Expedition leaf springs are designed to carry up to 500lbs consistently. They may settle up to 1/2″ in height.

The Expedition Leaf Springs were developed in conjunction with All-Pro's Baja Taco R&D platform. The Baja Taco was developed as an all-around off-road vehicle with long-term expedition capabilities as a key design parameter.

Expedition Leaf Spring Specifications

  • Number of Leaves: 9 + 1 Overload/Rebound
  • Eyelet-to-Eyelet Length (Free): 54-3/8″ (1381 mm)
  • Spring Rate: 207 lbs/in

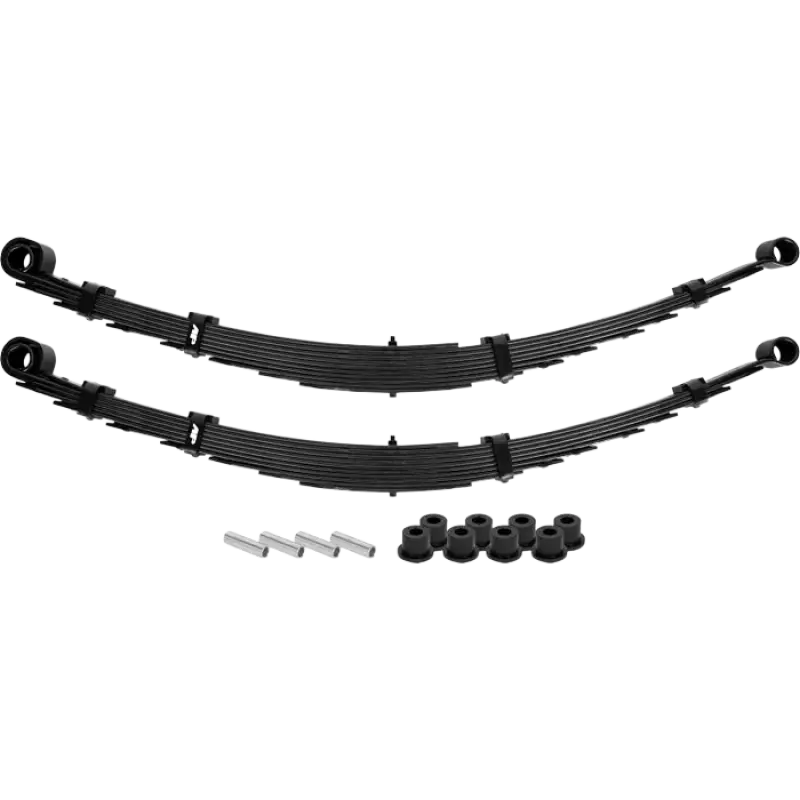

All-Pro Expedition 2.0 Leaf Springs

The Expedition 2.0 Leaf Springs are developed as an all-around off-road suspension option with long-term expedition capabilities. Expedition-oriented products are a growing segment of the Toyota aftermarket. From rock crawlers to pre-runners, All-Pro Off-Road has always been at the forefront of development for Toyotas. So, the expedition products are a natural addition to our product line. A higher leaf count spring allows the use of thinner leaf material that yields a more flexible and progressive leaf stack, or pyramid, producing a much smoother spring rate curve throughout the complete suspension cycle. Our Expedition leaf springs are designed to carry up to 1000lbs consistently.

Expedition 2.0 Leaf Spring Specifications

  • Number of leaves 9+1 Overload/Rebound
  • Eyelet-to-Eyelet Length (Free): 54-3/8" (1381 mm)
  • Spring Rate: 248lbs/in
