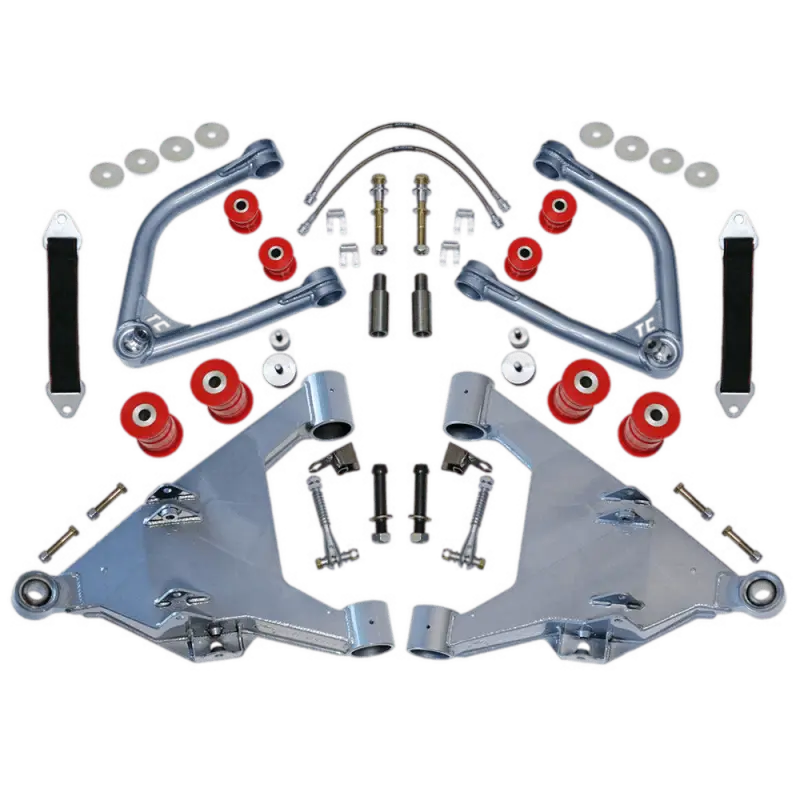

Total Chaos - +2.5" Long Travel Kit - For Tundra (07-21)

Features:

• Chromoly upper and lower control arms are extended to increase the track width 2.5" per side and bolt to the factory control arm mounting locations.
• 14.5" of wheel travel with 4WD.
• Upper and lower ball joints are upgraded to 1" uniballs for additional strength and wheel travel.
• TOTAL CHAOS 1" I.D. uniballs feature a heat treated stainless steel ball & race for superior corrosion resistance and component strength. A military grade PTFE woven fabric liner surrounds the uniball which helps prevent noise.
• Upper and lower control arms utilize urethane bushings which greatly reduce bushing deflection compared to stock rubber bushings. Providing a tighter off road feel and trail handling. All pivots include zerk fittings for easy lubrication maintenance.
• Billet CNC machined uniball cups integrate into the lower arm providing increased LCA strength and factory turning radius.
• Lower arms are internally gusseted, fully boxed and include dual shock tabs.
• TC boxed lower arms feature sway bar mounting tabs to retain the factory sway bar for better high speed cornering stability. TC sway bar link #87250 is required to retain the sway bar system- sold separately.
• Secondary shock tabs are included to allow a TC specific external bypass shock to be installed for additional dampening control. Maximize tunability and performance. Customize your ride quality for added vehicle weight and specific terrain.
• TC specific long travel coil over shocks bolt to the factory coil bucket location.
• Adjustable limit strap clevises are supplied to properly limit suspension droop wheel travel and allow necessary adjustments during the life of the limit strap. Straps will stretch over time.
• Kit includes: DOT approved stainless steel braided brake lines that do not expand. TC custom 17-4 stainless hi-misalignment spacers. Grade 8 mounting hardware.
• TC custom 4WD extended axles are machined from 4340 and insert into the factory inner and outer CV joints to retain 4WD - sold separately.
• Fiberglass fenders are required.
• Hand crafted in the U.S.A.
• 3 stage powder coat process includes a durable clear coat to provide a long lasting finish.
