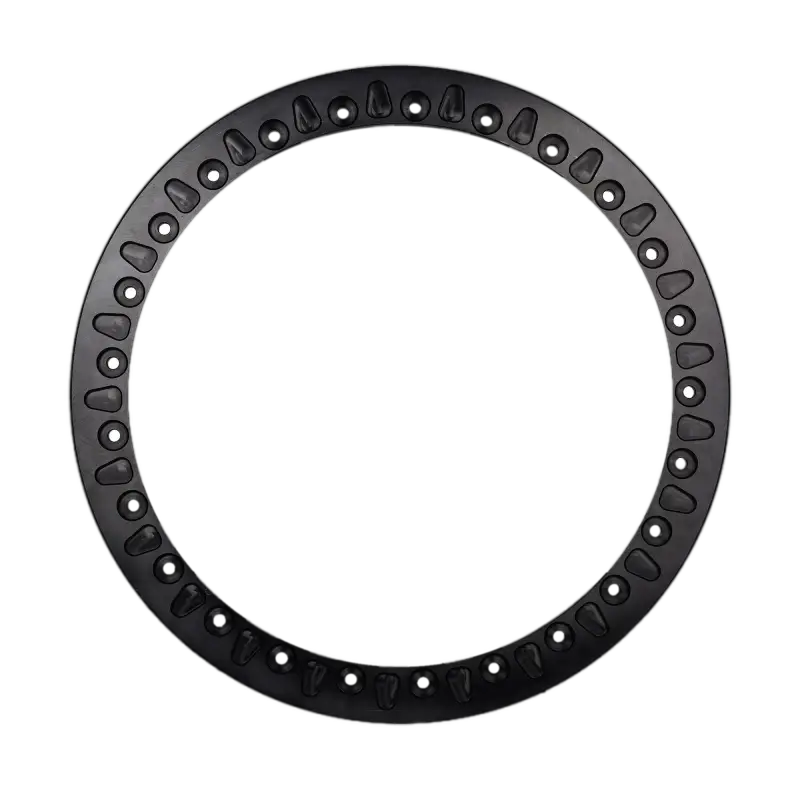

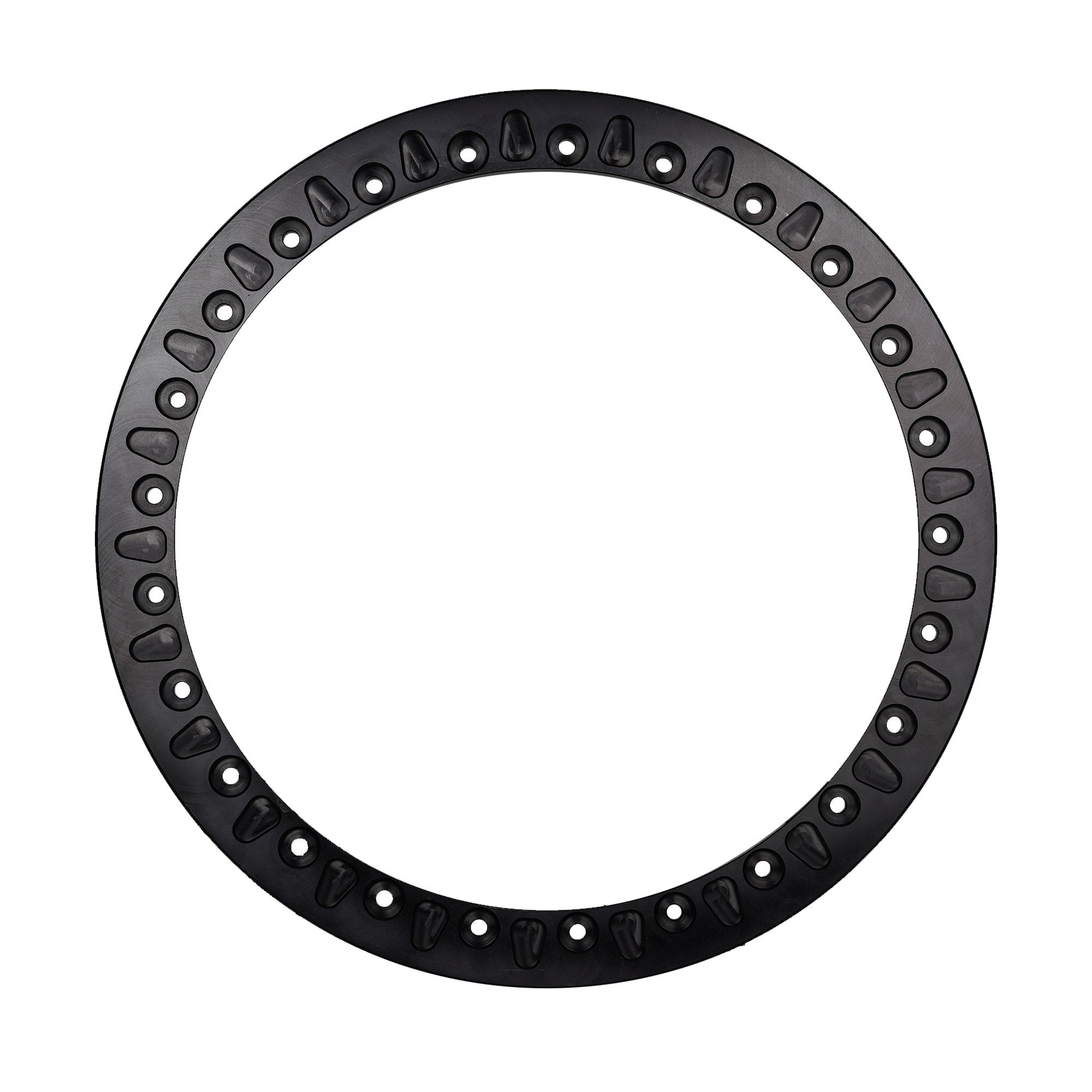

Black True Beadlock Ring for Hybrid Wheels V2 with knurled surface and CNC laser-cut precision, designed for off-road durability.

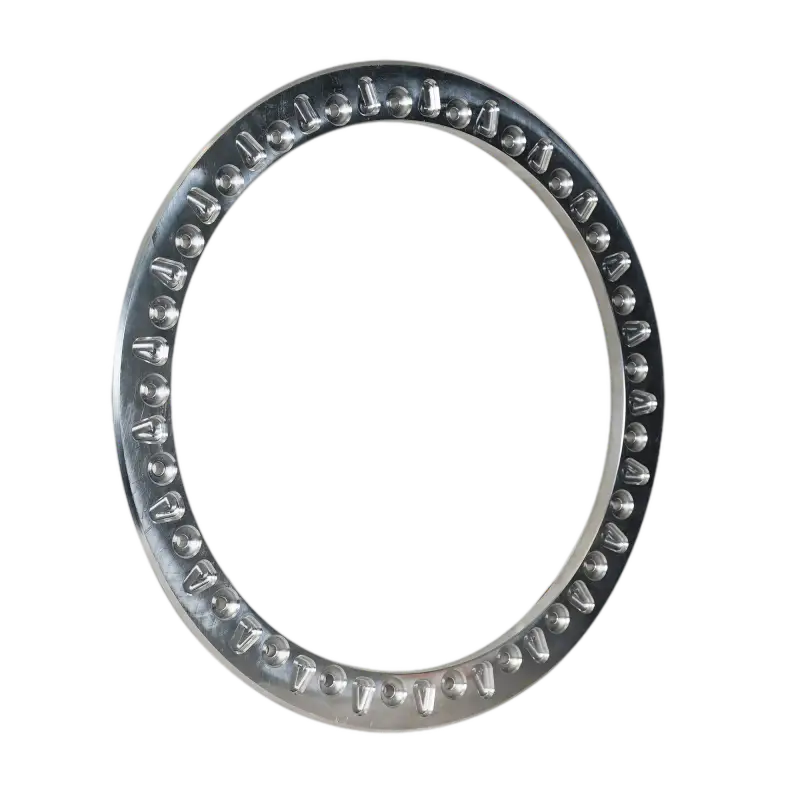

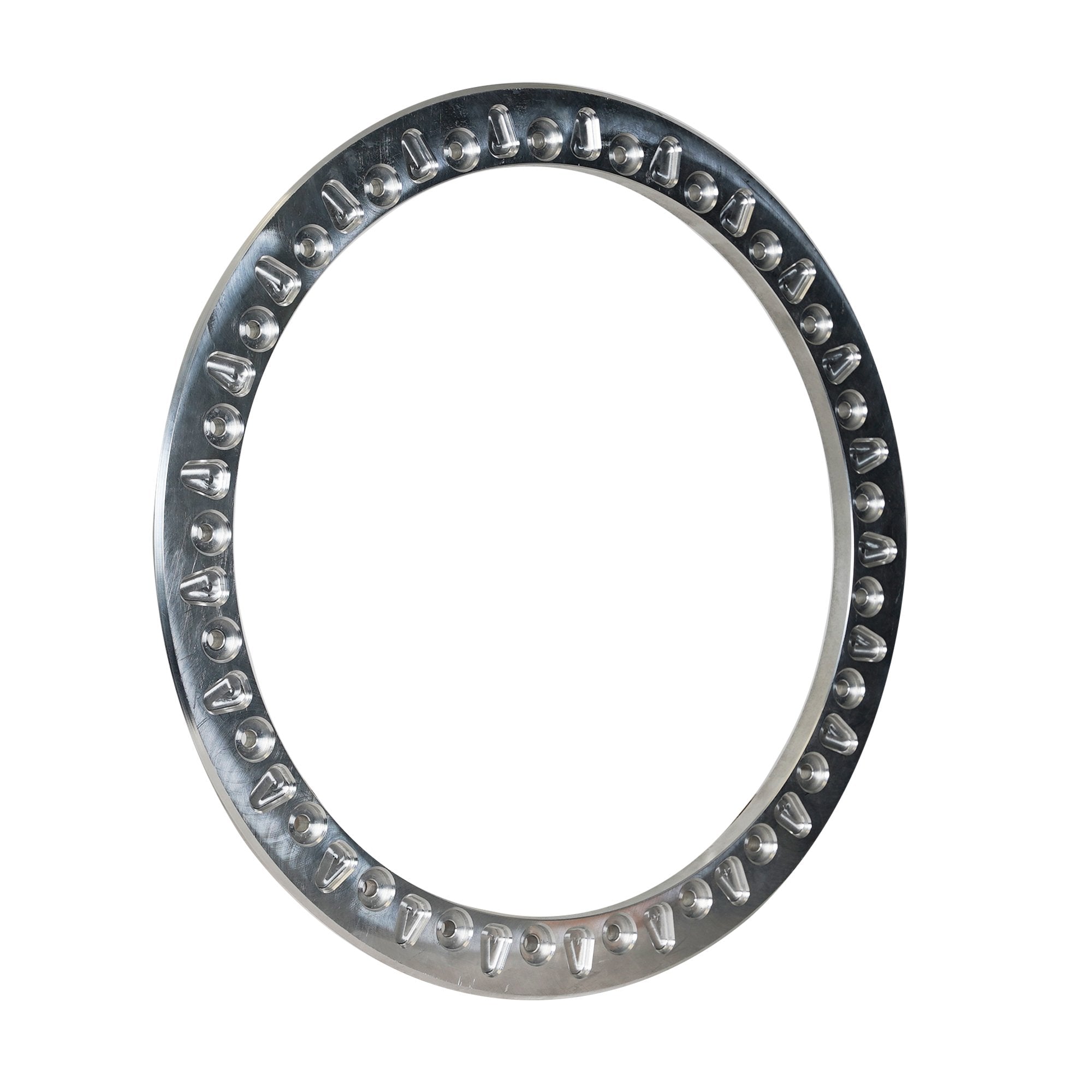

Polished aluminum True Beadlock Ring for Hybrid Wheels V2, featuring high tensile 6061-T6 material for off-road applications.

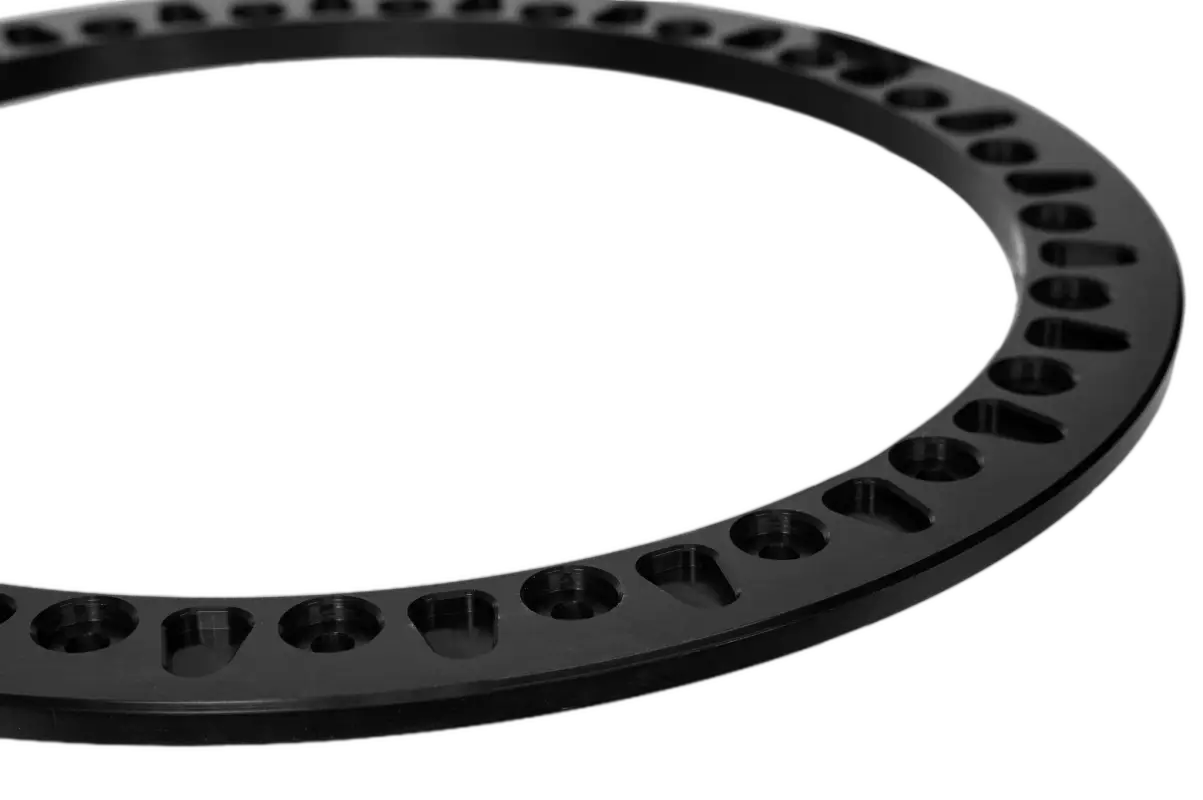

Close-up of black True Beadlock Ring for Hybrid Wheels V2, showcasing CNC laser-cut tolerance and robust design for off-road use.

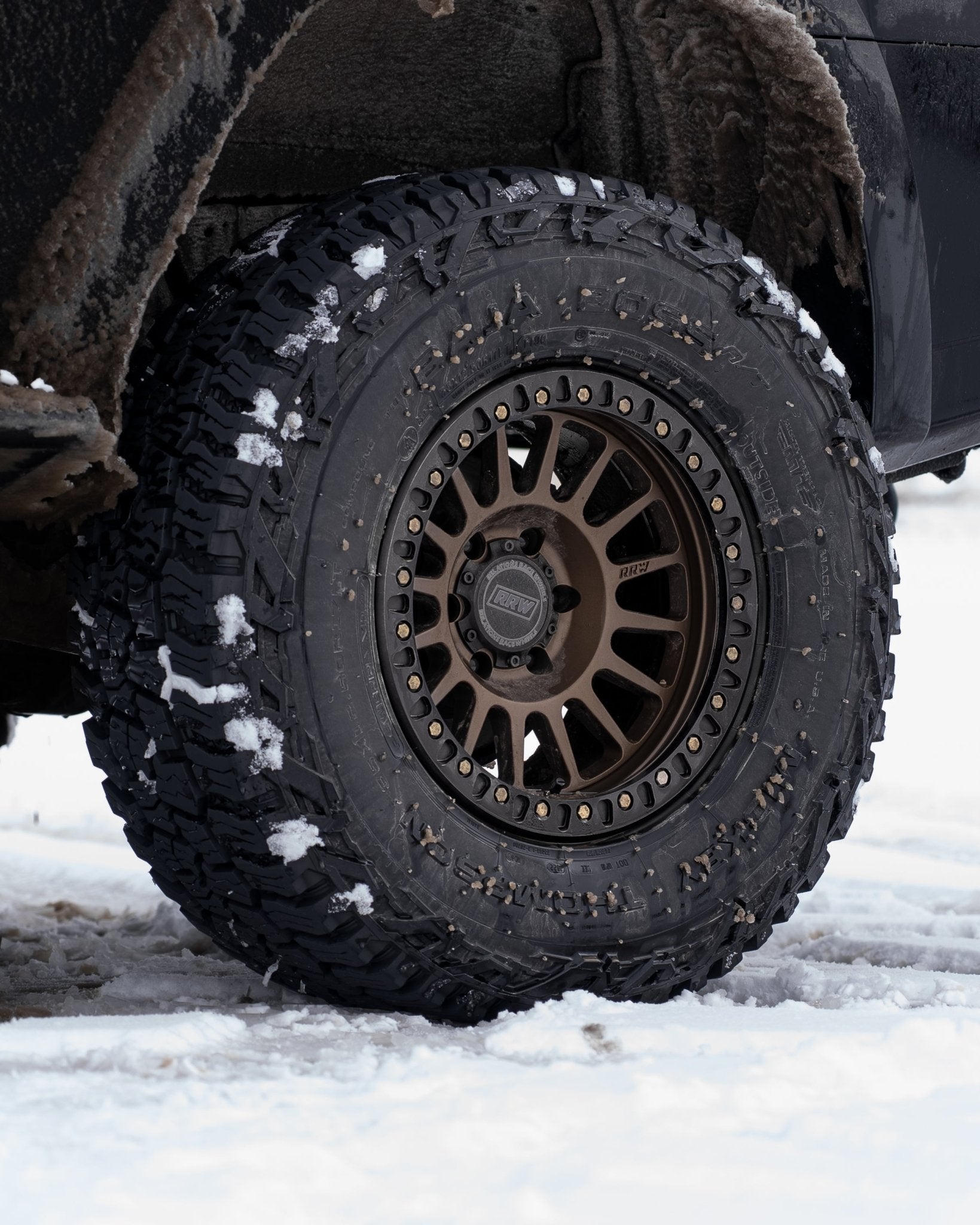

Mounted True Beadlock Ring for Hybrid Wheels V2 on an off-road vehicle tire in snowy terrain, emphasizing durability and performance.

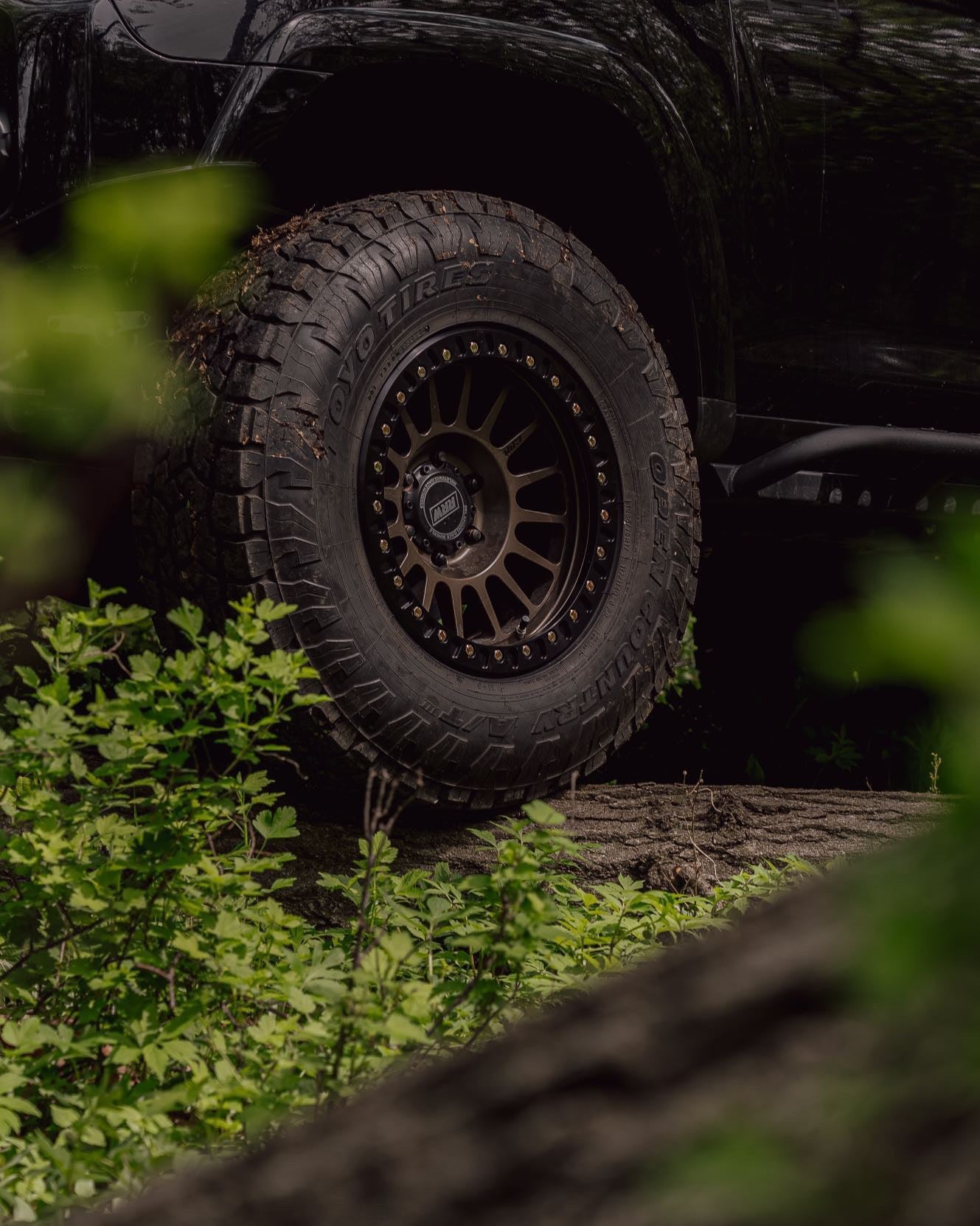

True Beadlock Ring for Hybrid Wheels V2 installed on an off-road vehicle tire in a forest setting, highlighting rugged design.

Detailed view of True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, showcasing knurled surface and precise fitment.

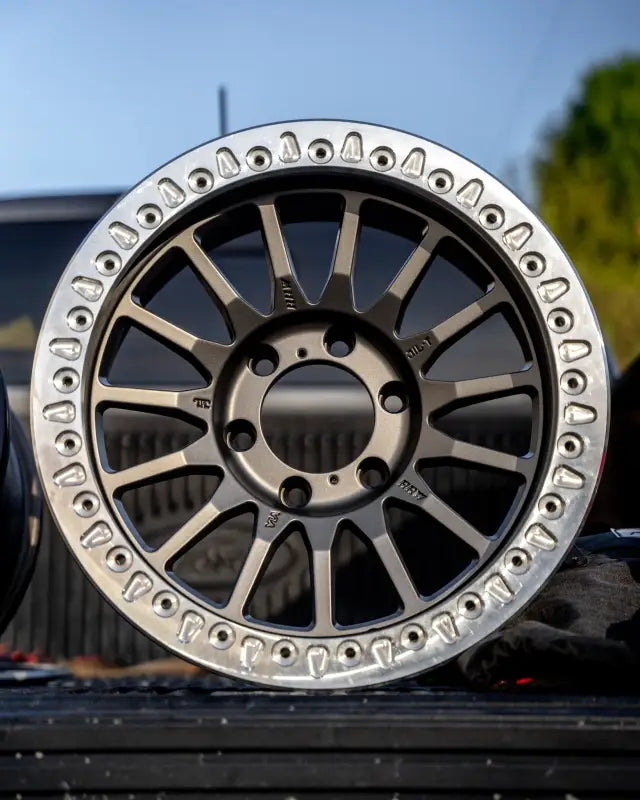

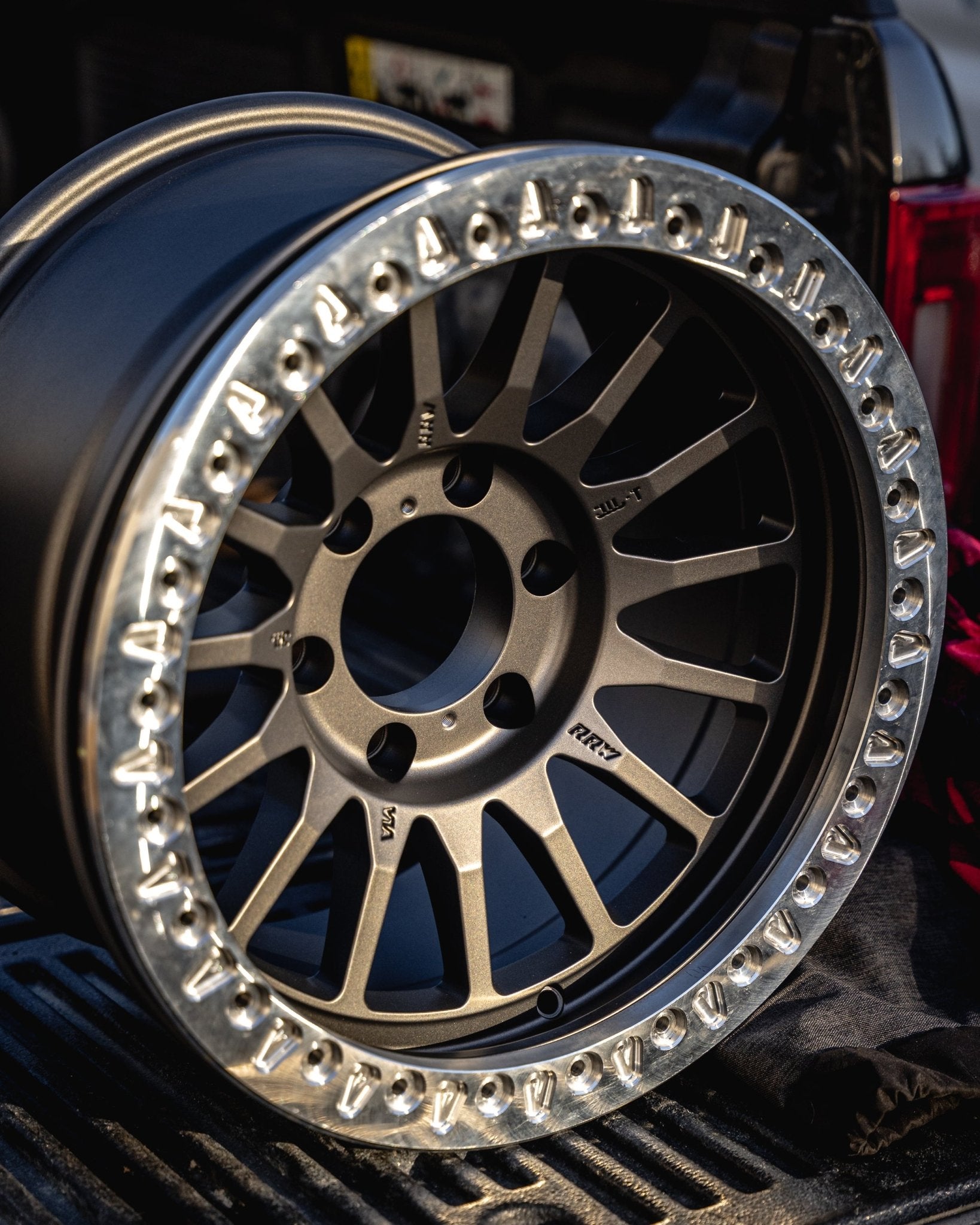

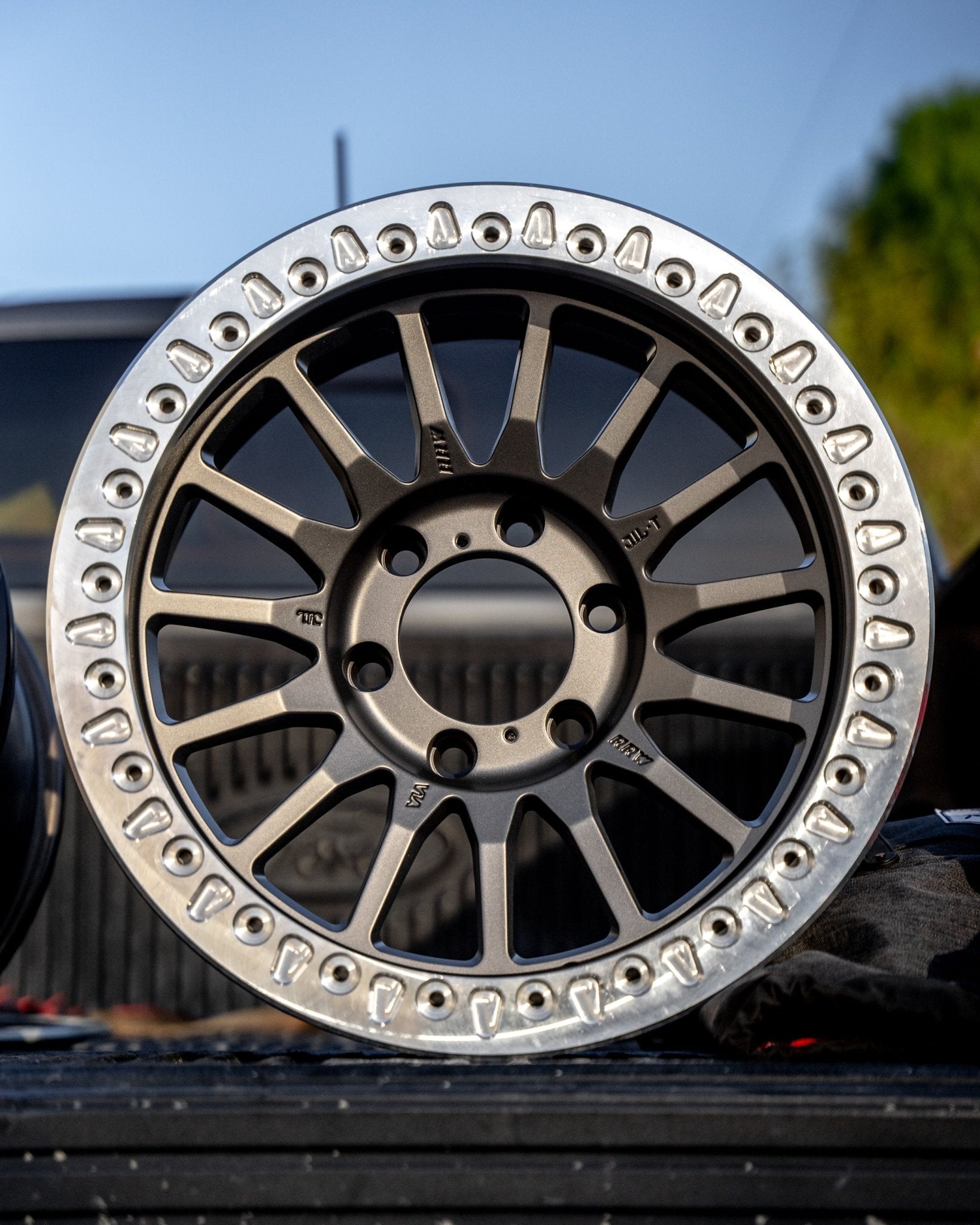

Polished aluminum True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, emphasizing off-road durability and style.

Off-road vehicle equipped with True Beadlock Ring for Hybrid Wheels V2, highlighting rugged performance in a mountainous setting.

Close-up of True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, showcasing robust construction and off-road readiness.

True Beadlock Ring for Hybrid Wheels V2 mounted on a vehicle tire in grassy terrain, emphasizing off-road capability and style.

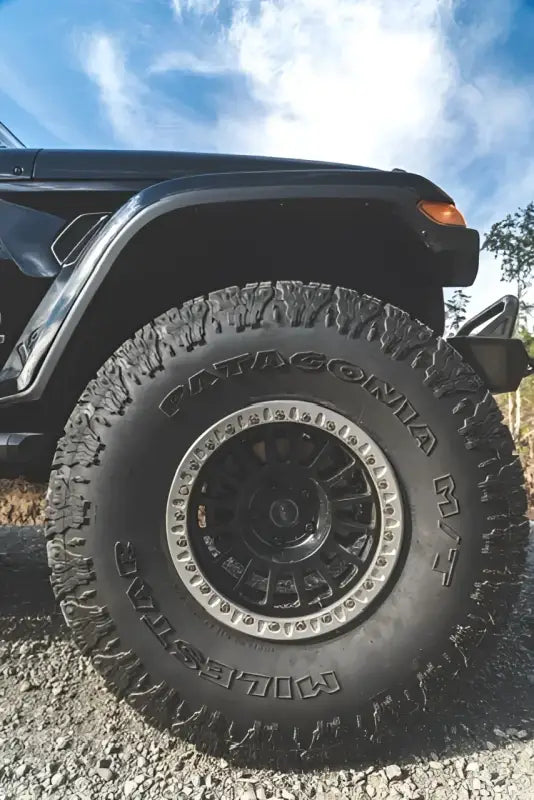

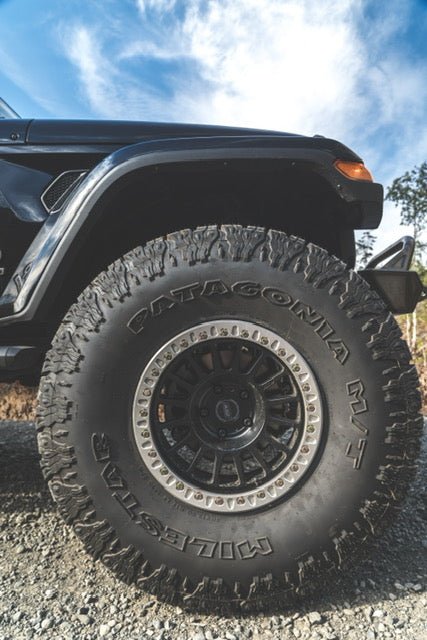

True Beadlock Ring for Hybrid Wheels V2 installed on a tire with Patagonia MT branding, showcasing rugged off-road performance.

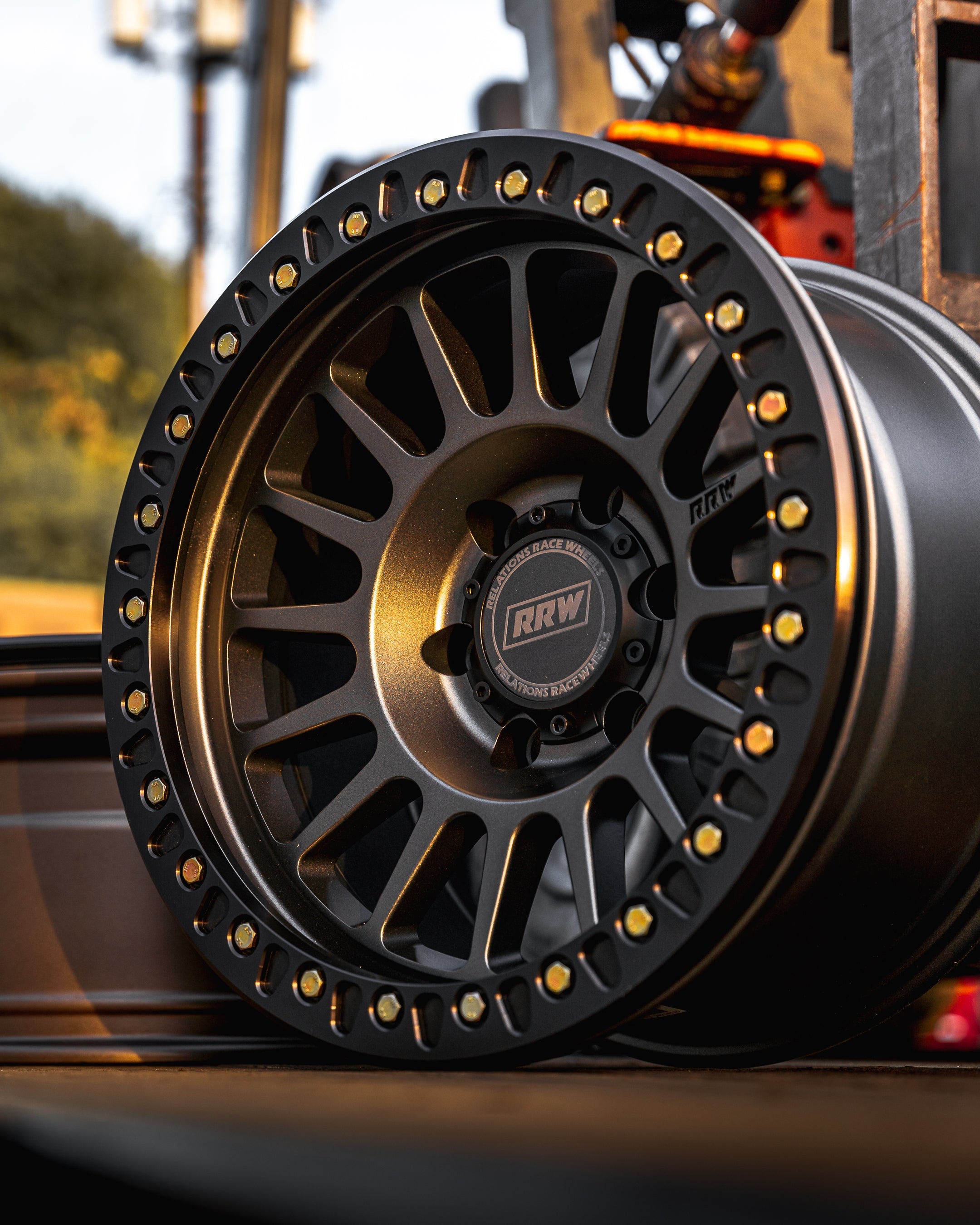

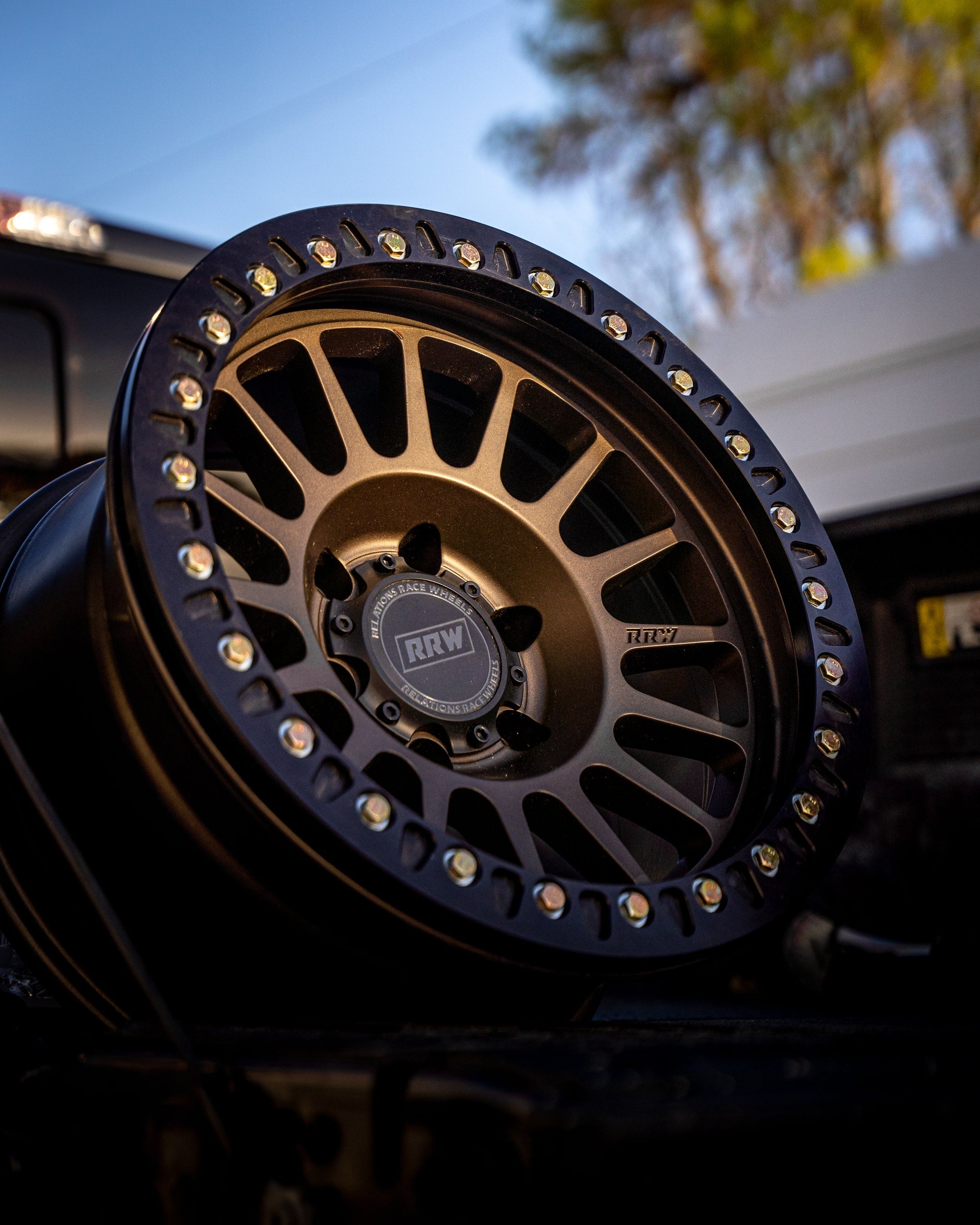

Black True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, highlighting CNC laser-cut precision and off-road durability.

True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, emphasizing high tensile 6061-T6 aluminum construction for off-road use.

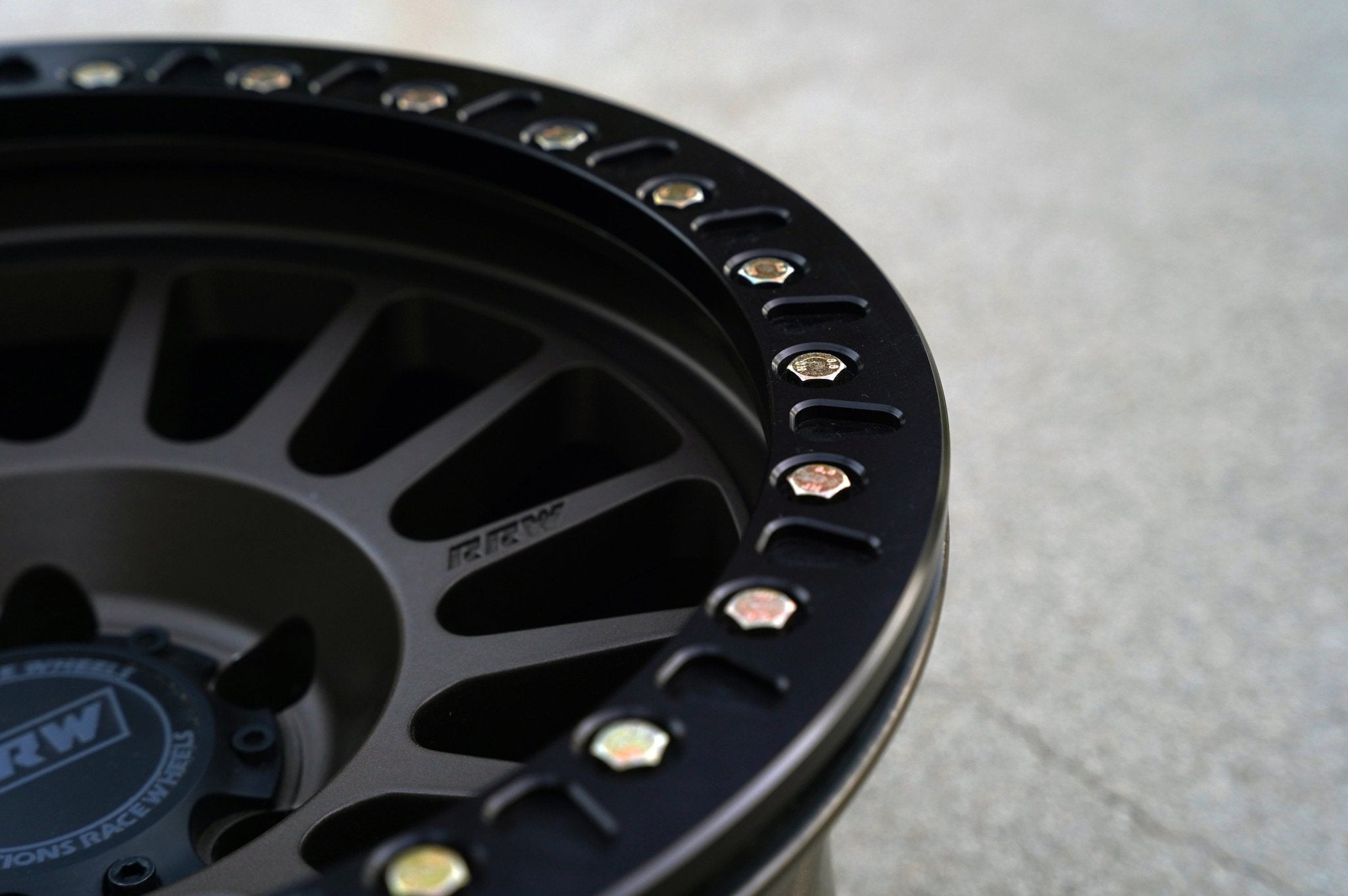

Close-up of True Beadlock Ring for Hybrid Wheels V2 installed on a wheel, showcasing knurled surface and robust off-road design.

Relations Race Wheels

True Beadlock Ring for Hybrid Wheels (V2)

$185.00 USD

Finish: Raw Billet

Bolt Color: Black Bolts

Quantity:

Description

Beadlock rings are currently in production and have an estimated lead time of 6-8 weeks

This listing is for 1 beadlock ring

Beadlock rings are for OFFROAD USE ONLY. These are NOT DOT approved for highway use

This billet beadlock ring is designed for use with our RR5-H, RR6-H and RR7-H and -H 17x8.5 Monoforged wheels. Machined from 6061-T6 aircraft grade aluminum, this ring has very high tensile strength built for off-road duty.

CNC laser cut precision tolerance
5/8" thickness
The V2 ring has a knurkled surface for improved tire bite
Available in a Raw Billet or Black Anodized finish
FOR OFFROAD USE ONLY
Designed specifically for use with the RR5-H, RR6-H, RR7-H and -H 17x8.5 MonoForged Wheel ONLY
Each ring will include (25) M8 (Grade 10.9) gold or black zinc bolts
Weight (without hardware): 3lbs 10oz
Sold individually

**2024 Revision**

The beadlock ring now has 2mm more clearance to mate with tire’s with a thicker bead. This revision should make fitment more universal throughout and ease installation in some cases. This should eliminate the requirement of using “spacers” for those mounting certain select MT tires with an abnormally thick bead.

BEADLOCK RINGS ARE STRICTLY FOR OFF-ROAD USE ONLY. These are NOT DOT approved for highway use
Note: DO NOT over-torque. Improper torqueing can cause the threads to strip. Torque in a star pattern to 7 ft lbs. Once that is done, set torque wrench to 14 ft lbs.

Installation instructions can be found here

We are currently in the process of developing a DOT approved beadlock wheel. There is currently no definite timeline on this.

"This is an aftermarket product"
