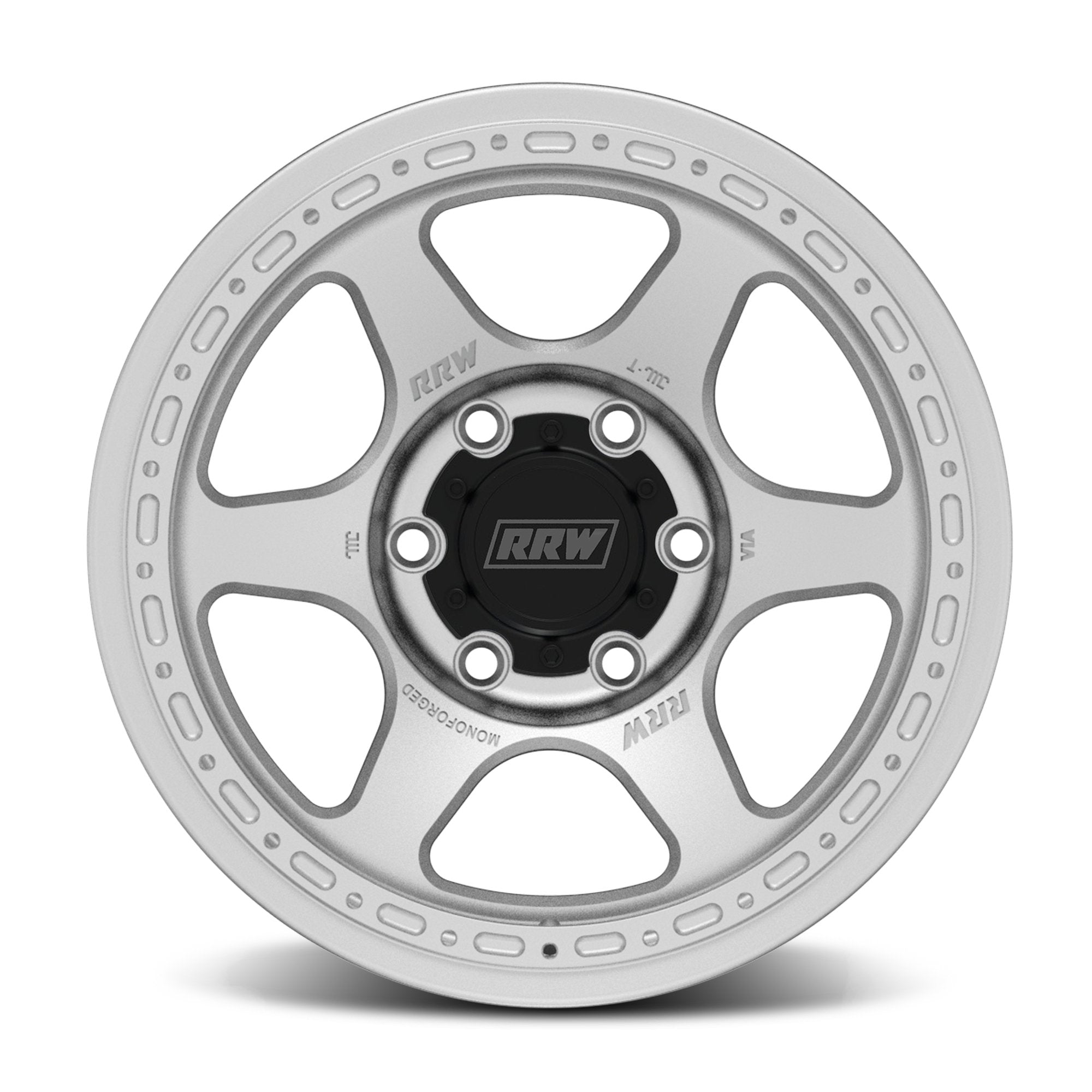

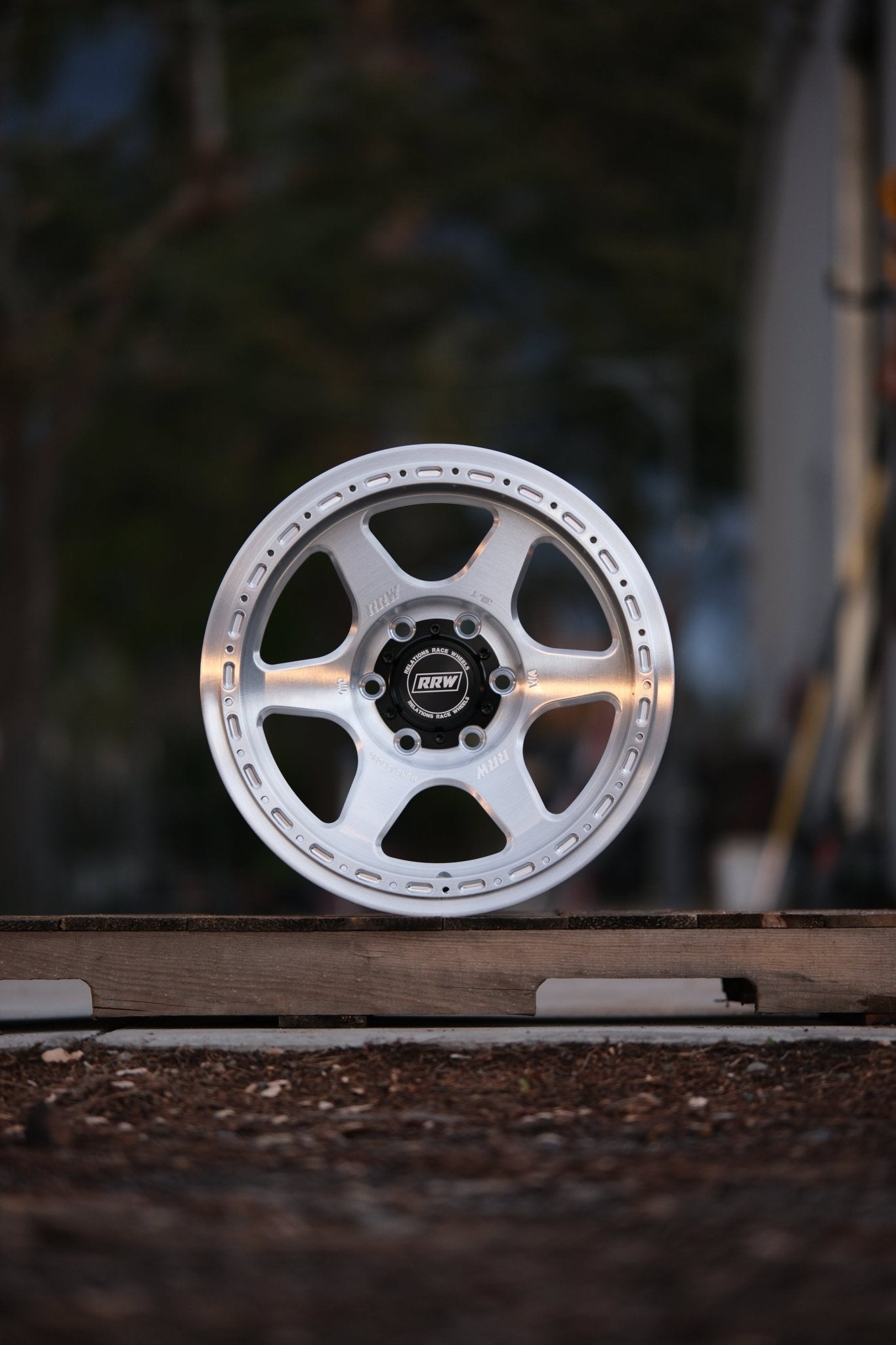

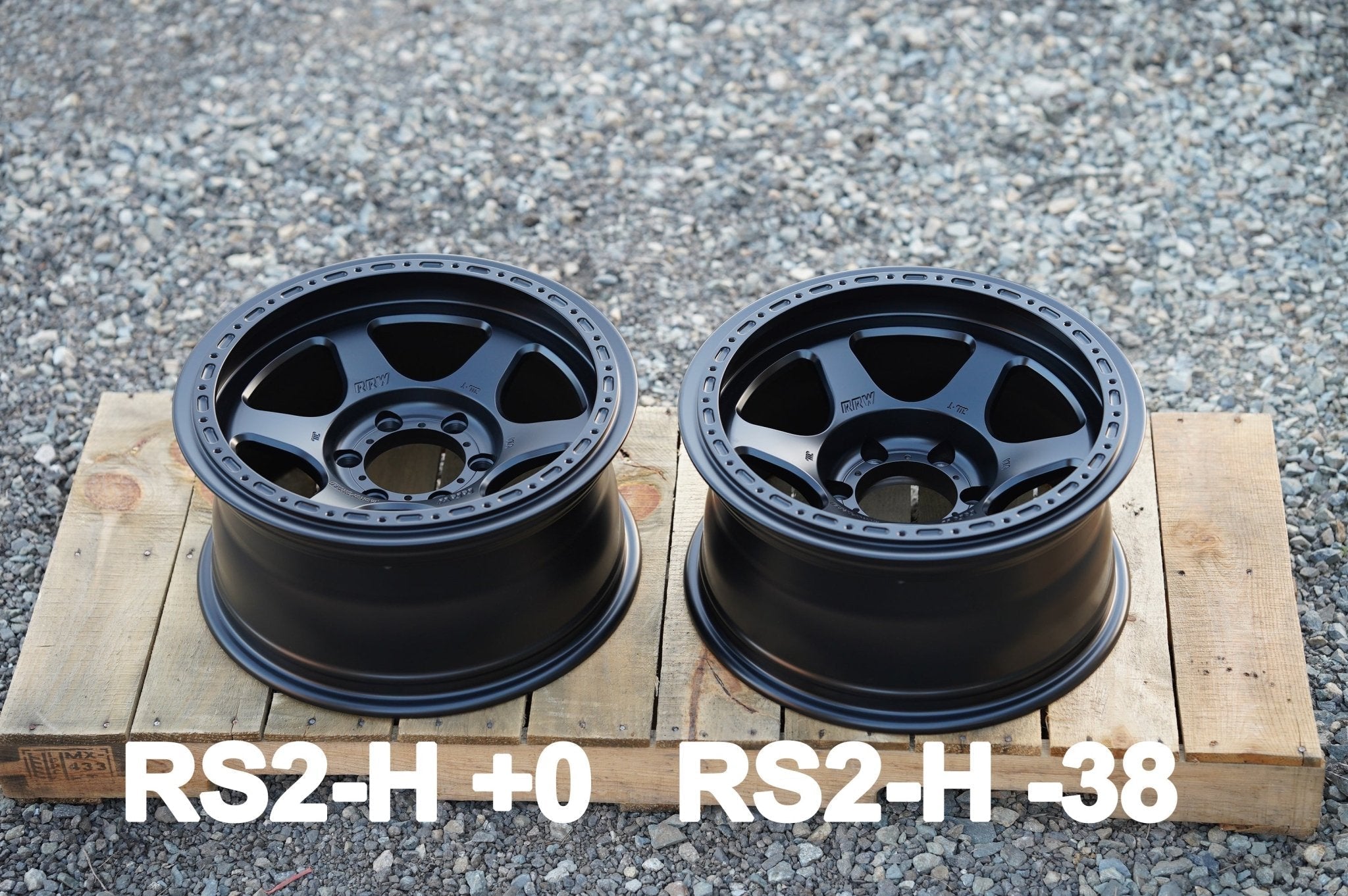

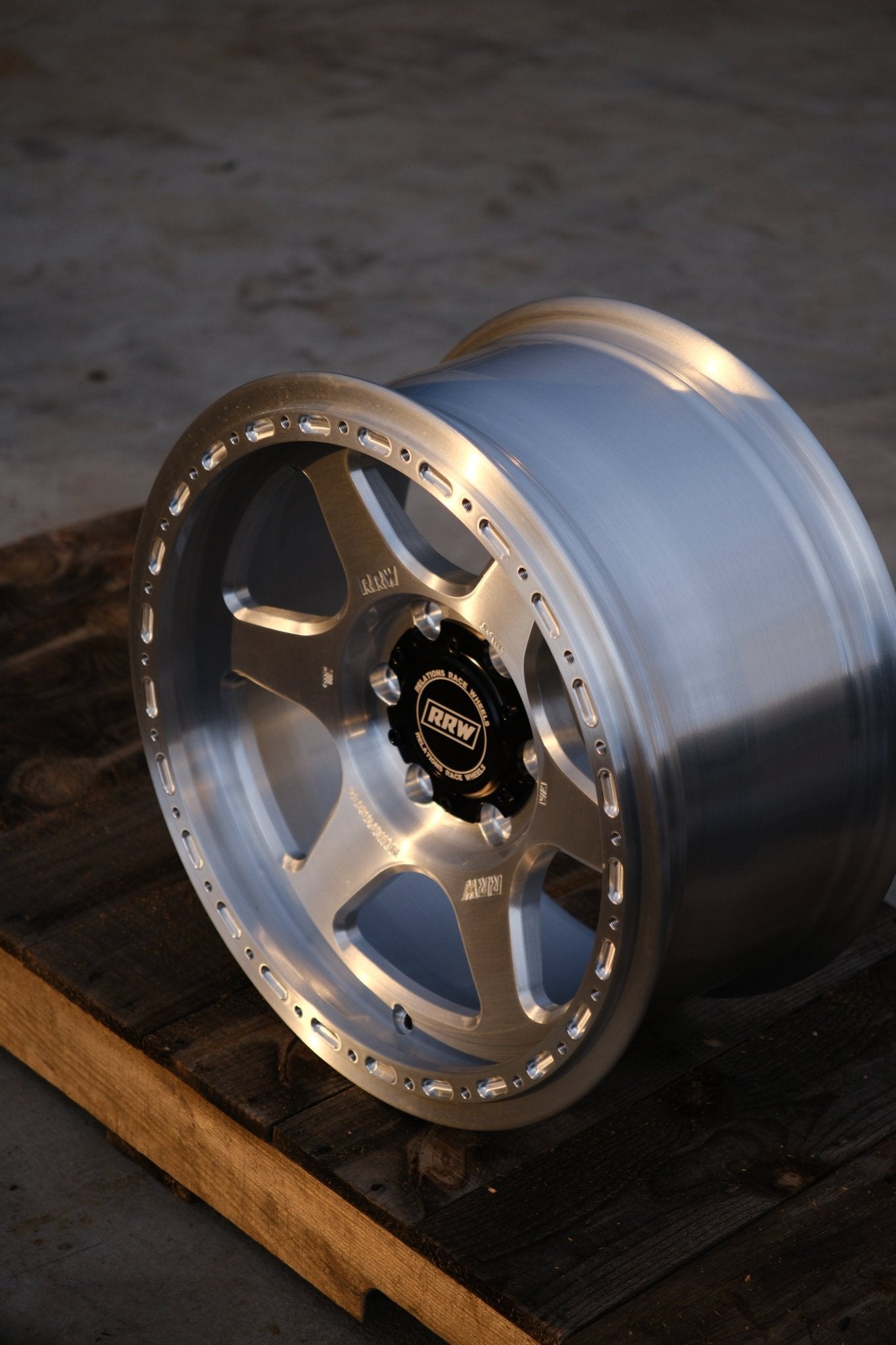

RS2-H Hybrid MonoForged Wheel | BRUSHED ALUMINUM
Price displayed is for 1 (ONE) wheel
(Manufacturing process video coming soon.)
Optimization & Construction
-Each design is streamlined for maximum weight savings, such as large chamfers, milled-out pockets, anywhere possible without compromising structural integrity.
-CNC machined from 6061-T6 billet forging, these wheels are lighter and stronger than ever compared to any cast counterpart. Period.
Premium Paint
-Guaranteed - better than ever paint quality. These are the best wheels we’ve made to date.
-Flawless precision machining. With our Monoforged series, it’s all about the fine details.
Lighter than Ever
-About 15-20% lighter than their cast counterparts in the same model & size.
-Engineered to a load rating of 2500 lbs per wheel. Enough to support any loaded ½ truck in the roughest conditions.
-Now with deeper holes with more (50%) more thread engagement on the -H hybrid series. 25 tapped holes with a M8x1.25 thread pitch
-Embossed ABS caps are included
-Compatible with our ET lug nuts for maximum thread engagement to wheel studs. Great especially since Toyotas are notorious for having short wheel studs.
Lead Times & Shipping
Orders will be shipped via Fedex Ground and will require signature.
Specifications
Size: 17x8 +12, 17x8.5 -12 and +25, 18x9 +18
Bolt Pattern: 6x5.5/6x139.7
Center bore for 6x5.5 -12: 106.1 mm (hub-centric for Toyota trucks and GX)
Center bore for 6x5.5 +12, +18 and +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550)
Load Rating: 2500 lbs
Backspacing: varies
Includes ABS embossed caps
Compatible with TPMS
Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels
Features
- Deep stepped hybrid lip, compatible with the protection ring, billet protection ring or true beadlock ring
- Forged construction makes the wheels lighter but stronger than regular cast wheels
- Made from Forged 6061-T Aircraft Grade aluminum
- Superior paint finish
Vehicle Fitment
6x5.5 -12: Toyota Tacoma (2023 and older), 4Runner, FJ / Lexus GX470
6x5.5 +12, +18 and +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+) Lexus GX550, Ford Bronco, Ranger
Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications
"This is an aftermarket product"
